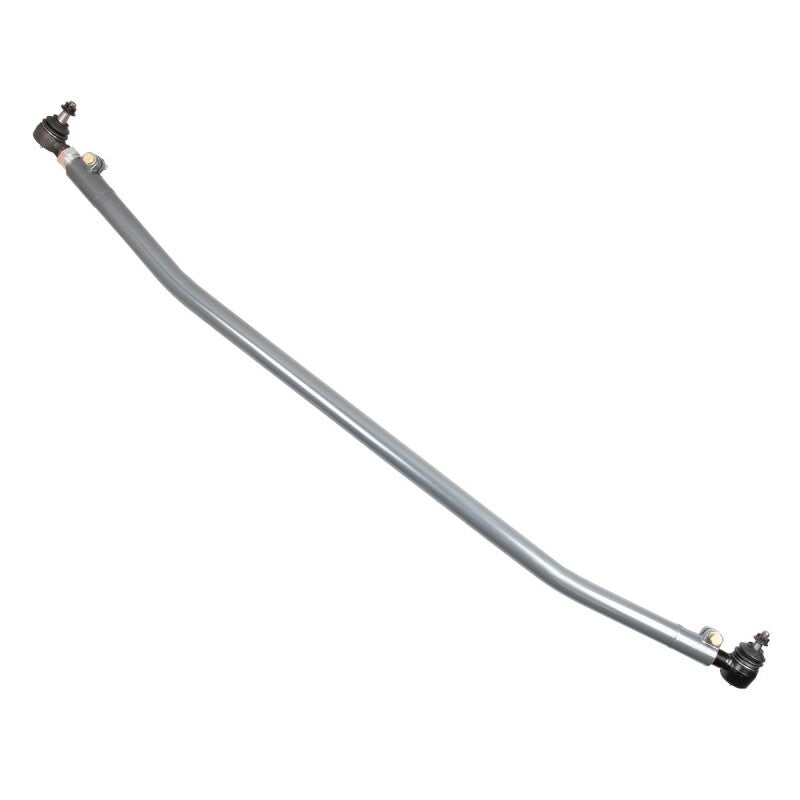

Synergy Mfg 8802-175 Titan Tie Rod for 2018-2026 Jeep Wrangler JL/JLU/Gladiator

Vehicle Fitment

• 2018-2026 Jeep Wrangler JL (2-Door, 4WD, 3.6L V6, 2.0L Turbo I4, 3.0L EcoDiesel V6, 6.4L HEMI V8, 6.2L Supercharged V8, and 4xe 2.0L Turbo Plug-In Hybrid)
• 2018-2026 Jeep Wrangler JLU (4-Door, 4WD, 3.6L V6, 2.0L Turbo I4, 3.0L EcoDiesel V6, 6.4L HEMI V8, 6.2L Supercharged V8, and 4xe 2.0L Turbo Plug-In Hybrid)
• 2020-2026 Jeep Gladiator JT (4WD, 3.6L V6 and 3.0L EcoDiesel V6)

Fitment Notes

• Designed for the JL/JLU Wrangler and JT Gladiator front steering configuration.
• Requires maximum wheel backspacing of 4.5 inches.
• Requires a minimum of 2 inches of bump-stop spacing on applicable models, except 392, diesel, and XR-equipped Wranglers.
• For vehicles with more than 4 inches of lift, Synergy recommends a drop pitman arm and front track bar relocation bracket.
• Compatibility with aftermarket differential covers is not guaranteed.
• Known compatibility with the Currie 5-Lug Dana 60 front axle; compatibility with all aftermarket axles is not confirmed.

Features

• Heavy-duty Titan Series tie rod designed for demanding street and off-road use.
• Precision-bent 1.75-inch x 0.188-inch-wall heat-treated chromoly tubing.
• Provides increased steering linkage strength and stiffness compared with the factory tie rod.
• Metal-on-metal, fully greaseable tie rod ends provide durable, serviceable operation.
• 4140 steel shank and 1018 steel bearing housing provide robust joint construction.
• Single-plane tie rod ends help reduce unwanted tie rod flop and steering dead spot.
• Double adjuster sleeve and pinch-bolt assembly allows adjustment while installed.
• Eliminates traditional jam nuts and helps prevent alignment creep.
• Two-stage abrasion-resistant powder coating provides durable corrosion protection.
• 100% bolt-in design retains factory mounting locations and requires no drilling.

Specifications

• Brand: Synergy Manufacturing
• Part Number: 8802-175
• Product Type: Heavy-Duty Titan Series Tie Rod
• Vehicle Platforms: Jeep Wrangler JL/JLU and Gladiator JT
• Model Years: 2018-2026 Wrangler JL/JLU; 2020-2026 Gladiator JT
• Drivetrain: 4WD
• Construction: 1.75 in x 0.188 in-wall Heat-Treated Chromoly Tubing
• Minimum Collapsed Length: 59 in
• Maximum Extended Length: 61 in
• Mounting Position: Front Axle Steering Linkage
• Installation: Bolt-In

Included Components

• 1x Heavy-Duty Heat-Treated Tie Rod
• 1x Grade 8 Hardware Kit

Product Description

The Synergy Manufacturing 8802-175 Titan Series Tie Rod is a heavy-duty steering upgrade for 2018-2026 Jeep Wrangler JL/JLU and 2020-2026 Jeep Gladiator JT models. Constructed from massive 1.75-inch heat-treated chromoly tubing, the tie rod provides increased strength and stiffness for improved steering durability and confidence during demanding street, trail, and off-road use.

The tie rod features fully greaseable metal-on-metal ends, single-plane joint design, and a double adjuster sleeve with pinch-bolt assembly for convenient adjustment while installed. Its 100% bolt-in design retains factory mounting locations and requires no drilling. Check wheel backspacing, bump-stop clearance, lift height, and differential-cover compatibility before installation to ensure proper fitment.
