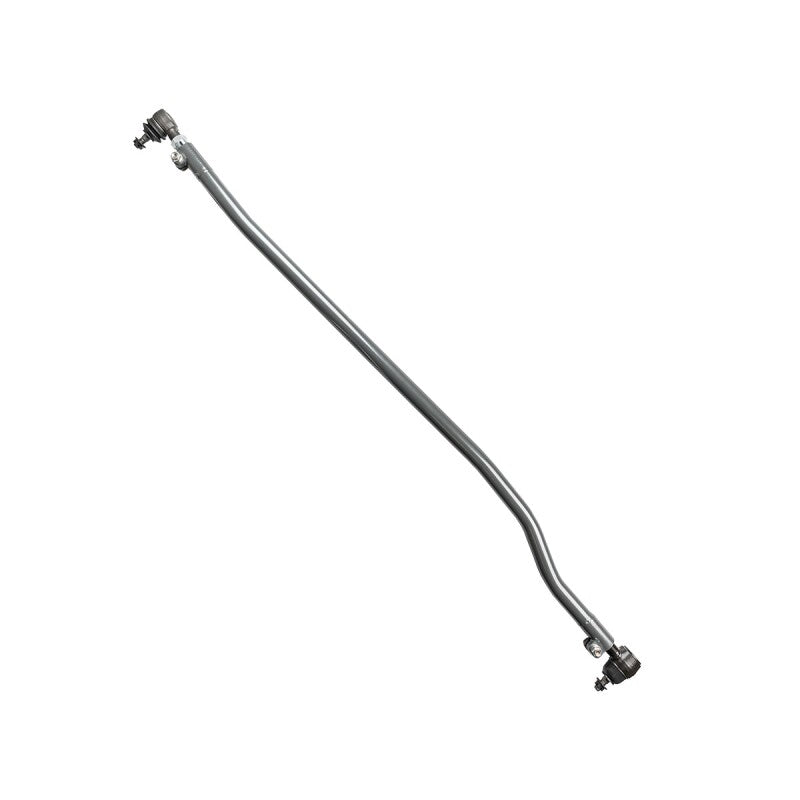

Synergy Mfg 8802-11 HD Chromoly Tie Rod 18-26 Jeep Wrangler JL/JLU JT Gladiator

Vehicle Fitment

• 2018-2026 Jeep Wrangler JL (2-Door)
• 2018-2026 Jeep Wrangler JLU Unlimited (4-Door)
• 2020-2025 Jeep Gladiator JT

Fitment Notes

• Direct bolt-in replacement for the factory tie rod - no wheel size requirements; compatible with stock wheels and tires
• Tie rod OD is 1.50 in. - requires Synergy 8807-03 High Mount Steering Stabilizer Relocation Kit to retain a steering stabilizer (sold separately)
• Adjustable to fit all JL/JLU/JT axle width configurations without removal from the vehicle
• No factory tie rod components need to be reused - all hardware included

Features

• CNC formed from 1.50 in. x .188 wall 4130 heat-treated chromoly tubing - heat treated after bending for maximum post-form strength
• Single plane tie rod end on one side eliminates tie rod flop and steering dead spot encountered with hydro-assist setups
• Metal-on-metal, fully greaseable tie rod ends with 4140 steel studs and forged 1018 housings - stronger and more durable than stock
• Double Adjuster Sleeve and Pinch Bolt Assembly allows full length adjustment on the vehicle - no removal required
• Pinch bolt design eliminates jam nuts, preventing loosening and alignment creep
• Bent to clear sway bar mounts, differential cover, and steering pitman arm for maximum articulation
• Abrasion-resistant black powder coat finish for lasting corrosion protection
• Made in the USA; backed by Synergy's Limited Lifetime Warranty

Specifications

• Tubing: 1.50 in. x .188 wall 4130 chromoly, heat treated post-bend
• Tie Rod End Stud: 4140 steel, induction heat-treated
• Tie Rod End Housing: Forged 1018 steel, sintered metal-on-metal bearing
• Tie Rod End Style: Single plane (one side) to eliminate tie rod flop
• Min/Max Length: 58.500 in. collapsed / 60.875 in. extended
• Outer Diameter (OD): 1.50 inches
• Finish: Abrasion-resistant black powder coat

Included Components

• 1x HD 4130 chromoly tie rod assembly
• 2x Metal-on-metal tie rod ends with NBR boots and retaining springs (one single plane, one standard)
• 1x Double Adjuster Sleeve and Pinch Bolt Assembly
• 1x Hardware kit

Product Description

The Synergy Manufacturing 8802-11 is a heavy-duty heat-treated chromoly tie rod engineered as a direct bolt-in replacement for the factory tie rod on 2018-2026 Jeep Wrangler JL/JLU and 2020-2025 Gladiator JT models. CNC formed from 1.50 in. x .188 wall 4130 chromoly and heat treated after bending, this tie rod is significantly stronger than stock and guaranteed not to bend on the toughest trails. The single plane tie rod end on one side eliminates tie rod flop and the steering dead spot commonly encountered with hydro-assist setups.

The Double Adjuster Sleeve and Pinch Bolt Assembly allows on-vehicle length adjustment across all JL/JLU/JT axle width configurations without removal. No wheel size changes are required - the bar is fully compatible with stock wheels and tires. Note that due to the 1.50 in. outer diameter, retaining a steering stabilizer requires Synergy's 8807-03 High Mount Steering Stabilizer Relocation Kit (sold separately). Includes all necessary hardware, made in the USA, and backed by a Limited Lifetime Warranty.
