MOOG DS300008 Front Pass. Outer Tie Rod for 2005-2022 Ford F-250/F-350 SD 4WD

Vehicle Fitment

• 2005-2022 Ford F-250 Super Duty (XL, XLT, Lariat, King Ranch, Platinum | 6.0L / 6.4L / 6.7L Power Stroke Diesel, 5.4L / 6.2L Gas V8 | 4WD only)
• 2005-2022 Ford F-350 Super Duty (XL, XLT, Lariat, King Ranch, Platinum | 6.0L / 6.4L / 6.7L Power Stroke Diesel, 5.4L / 6.2L Gas V8 | 4WD only | Except Wide Track Axle)
• 2005-2019 Ford F-450 Super Duty (4WD only)
• 2005-2019 Ford F-550 Super Duty (4WD only)

Fitment Notes

• Fits 4WD models ONLY - does not fit 2WD / RWD Super Duty configurations
• F-350 Super Duty: does not fit Wide Track Axle variants - verify axle configuration before ordering
• This is the Front Passenger Side (Right) Outer Tie Rod End - connects the drag link (DS300041) to the passenger-side steering arm
• Part contains a stud - stud diameter at top: 0.649 in.
• Replaces Ford OEM part numbers: 7C3Z3A131B, 6C3Z3A131D, BC3Z3A131B, BC3Z3A131A, 5C3Z3304BB, 5C3Z3304CB, 6C3Z3A131F, AC3Z3A131C, HC3Z3A131A
• Grease zerk size: 1/4x28 self-tapping - replace with the same spec if the zerk is lost during installation
• A front-end alignment must be performed after installation

Features

• Problem Solver Gusher Bearing - powdered-metal design allows grease to flow continuously through the bearing surface to the stud, reducing friction and extending service life
• Patented pressed-in cover plate seals out debris and minimizes looseness, reducing bearing wear and restoring like-new steering feel
• Belleville preload washer keeps the bearing package tight as bearings wear naturally over time, maintaining consistent steering precision
• Heat-treated ball stud meets or exceeds OE requirements to resist premature failure and improve fatigue strength under heavy-duty loads
• Greaseable socket allows fresh lubricant to flush out road contaminants, reducing internal corrosion and wear
• Forged and heat-treated steel housing provides optimal grain structure for superior strength and durability
• Precision tolerances for direct-fit installation and accurate steering alignment
• Backed by MOOG's limited lifetime warranty when professionally installed on catalog-listed applications

Specifications

• Position: Front Outer - Passenger Side (Right) | Pitman Arm to Steering Arm
• Contains Stud: Yes | Stud Diameter (top): 0.649 in.
• End 1 Thread: 1.000" diameter, 16 TPI, Clockwise
• End 2 Gender: Male
• Length (Stud Center to End): 7.270 inches
• Greaseable: Yes | Grease Zerk: 1/4x28 self-tapping
• OEM Cross-Reference: 7C3Z3A131B, 6C3Z3A131D, BC3Z3A131B, BC3Z3A131A, 5C3Z3304BB, 5C3Z3304CB, HC3Z3A131A (Ford)
• Interchange: MS40625, MS40622 (Mevotech), 532-025 (Dorman), 401-2373 (Raybestos), 269-3515 (NAPA)
• Warranty: Limited Lifetime (professionally installed)

Included Components

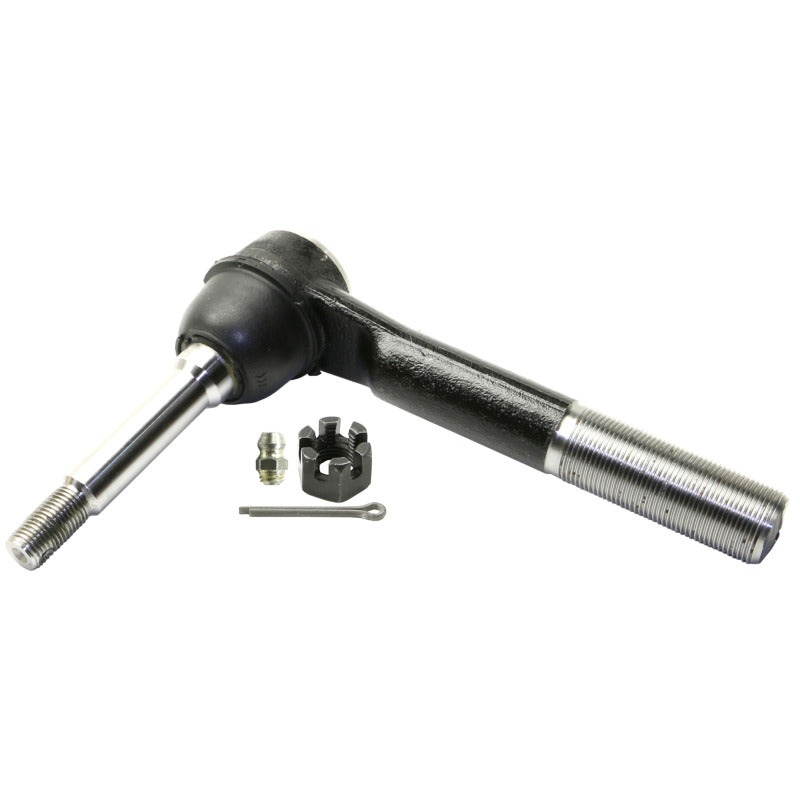

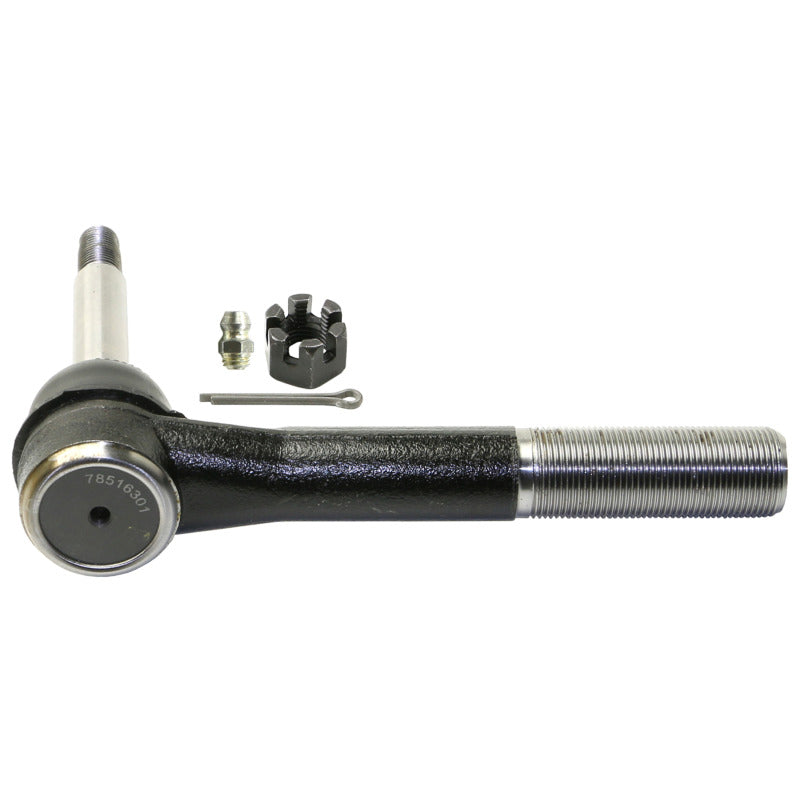

• 1x Front Passenger Side Outer Tie Rod End (with stud, greaseable)

Product Description

The MOOG DS300008 is the front passenger side (right) outer tie rod end for 4WD-equipped 2005-2022 Ford F-250 and F-350 Super Duty trucks, and 2005-2019 Ford F-450 and F-550 Super Duty models. On these solid front axle platforms, this outer tie rod end runs from the drag link (DS300041) to the passenger-side steering arm, serving as the final link that translates steering input into right-wheel movement. When it wears or develops play, symptoms include loose or wandering steering, a clunking sensation during turns or over rough terrain, and accelerated tire wear on the front passenger side - all exacerbated by the sustained loads common to towing, hauling, and off-road use on these heavy-duty trucks.

MOOG's powdered-metal Gusher Bearing circulates grease continuously through the bearing surface during operation, providing sustained lubrication unlike conventional sealed designs. The patented pressed-in cover plate captures the full ball stud between upper and lower bearings, eliminating axial clearance and maintaining the correct preload for precise steering throughout the life of the part. The forged and heat-treated steel housing is engineered to the correct grain structure for maximum strength. If the grease zerk is lost or damaged during installation, it is a 1/4x28 self-tapping fitting - a standard size available at any hardware store. Always perform a front-end alignment after installation.
