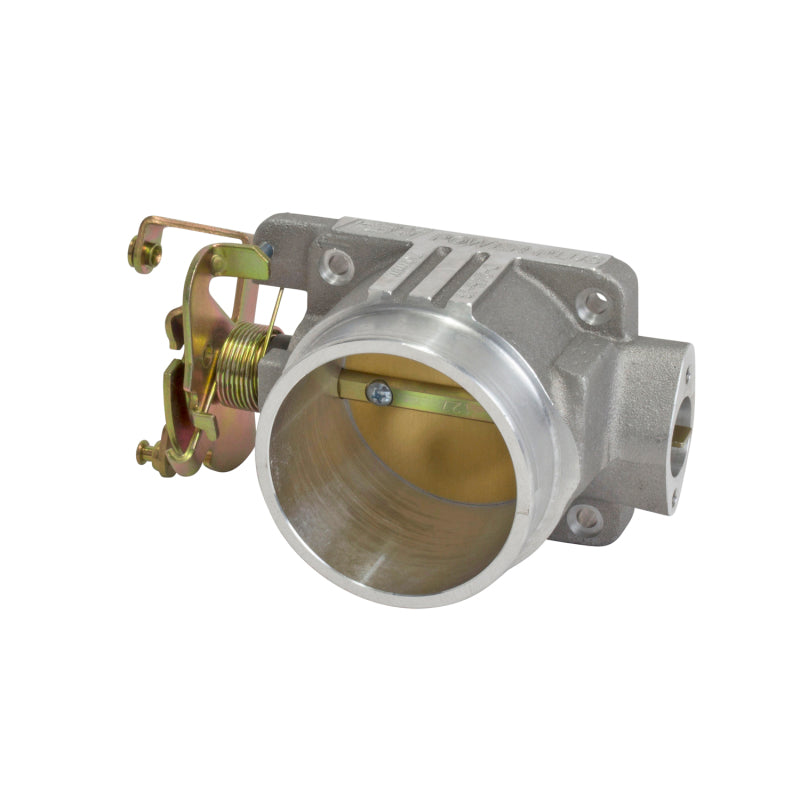

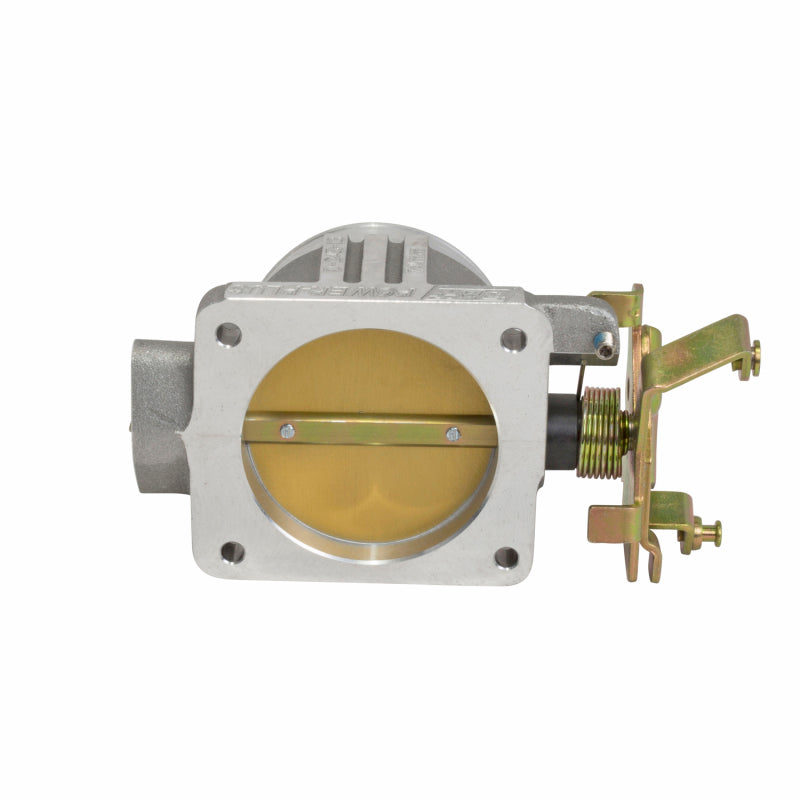

BBK 1700 70mm Power Plus Throttle Body 1996-2004 Ford Mustang GT 4.6L 2V CARB

Vehicle Fitment

• 1996-2004 Ford Mustang GT (4.6L SOHC 2V V8, All Trims)
• 1996-2004 Ford Thunderbird (4.6L 2V V8 applications)

Fitment Notes

• Fits the 4.6L SOHC 2-valve (2V) engine ONLY - does NOT fit the 4.6L DOHC 4-valve (4V) engine found in the SVT Cobra, Mach 1, and GT500
• Does NOT fit the 4.6L Crown Victoria or 4.6L F-Series Truck - these applications use a different throttle linkage design
• CARB Approved - EO# D-245-15 - 50-state legal for 1996-2001 Ford Mustang 4.6L GT and Ford passenger car 4.6L applications; verify compliance for 2002-2004 model years in California and states with adopted California emissions standards
• No ECU tune is required - this throttle body is compatible with the factory tune and works with the factory upper plenum
• A cold air intake and aftermarket upper plenum are recommended for maximum performance gains, though the factory inlet tubing and plenum will function

Features

• 70mm throttle bore delivers up to 30% improved airflow over the restrictive factory throttle body, translating directly to improved horsepower, torque, and throttle response
• Documented gain of 7-12 RWHP depending on vehicle configuration and supporting modifications
• CNC machined from high-quality 356 aluminum casting for precise OEM-level fitment and long-term dimensional stability

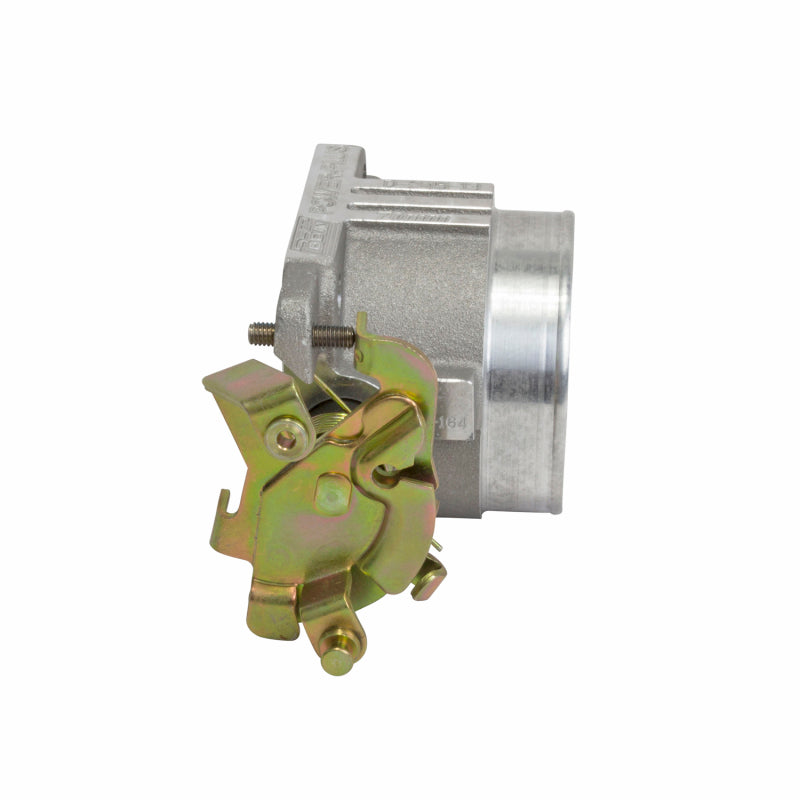

• OEM-style die-stamped throttle linkages maintain factory-smooth cable operation with no binding or sticking
• Double-sealed bearings on the throttle shaft eliminate slop and ensure consistent, precise throttle plate positioning throughout the throttle body's service life
• O-ringed throttle shaft design prevents air leaks around the shaft bore for reliable metering and consistent idle quality
• Direct bolt-on replacement for the factory throttle body - no modifications to the intake manifold, wiring harness, or linkage are required
• No tuning required - this throttle body is engineered to operate within the factory ECU parameters for plug-and-play performance
• CARB approved (EO# D-245-15) - 50-state street legal
• Designed and manufactured in the USA

Specifications

• Throttle Bore Diameter: 70mm
• Engine Fitment: 4.6L SOHC 2V V8 (1996-2004 Mustang GT, 4.6L Thunderbird)
• Throttle Body Style: Single venturi, multi-port injection (MPI)
• Actuation: Cable-driven
• Material: CNC machined 356 aluminum casting
• Bearings: Double-sealed
• Throttle Shaft: O-ringed
• Throttle Linkage: OEM-style die-stamped
• Horsepower Gain: 7-12 RWHP (documented)
• Airflow Improvement: Up to 30% over stock
• Tune Required: No
• CARB Status: Approved - EO# D-245-15 (50-state legal for 1996-2001 4.6L GT applications)
• Country of Origin: USA
• Warranty: 1-Year Limited

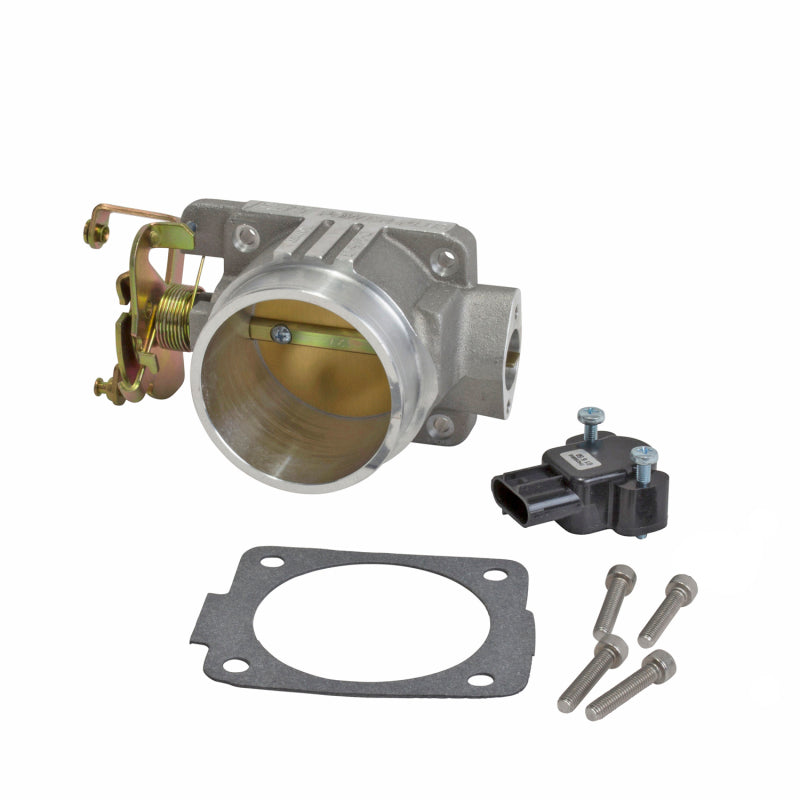

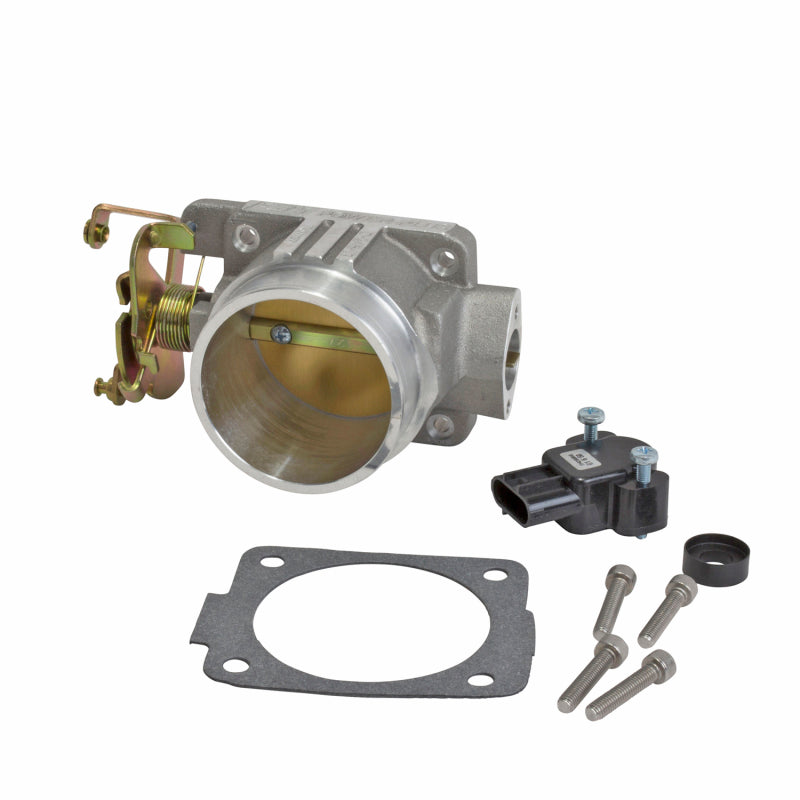

Included Components

• 1x BBK 70mm Power Plus Throttle Body
• 1x Throttle Position Sensor (TPS)
• 1x Throttle body gasket
• 1x Hardware kit
• 1x Installation instruction sheet

Product Description

The BBK Performance 1700 is the Power Plus Series 70mm throttle body engineered as a direct bolt-on upgrade for the 1996-2004 Ford Mustang GT with the 4.6L SOHC 2V V8. The factory throttle body on these Mustangs is a well-documented restriction - the BBK 1700 replaces it with a 70mm bore unit that delivers up to 30% more airflow to the engine, producing a documented gain of 7-12 rear-wheel horsepower depending on the vehicle configuration and supporting modifications. Because the BBK 1700 is engineered to operate within the factory ECU's calibration parameters, no aftermarket tune is required - installation yields immediate, noticeable improvements in throttle response, acceleration crispness, and mid-range pull without any additional programming or modifications.

BBK's Power Plus throttle bodies are manufactured from CNC machined 356 aluminum castings - the same alloy specification used in OEM throttle body production - machined to tight tolerances for a perfect fit every time. Double-sealed bearings on the throttle shaft eliminate play and maintain precise plate positioning throughout the unit's service life, and an O-ringed shaft design prevents any unmetered air from entering the intake around the shaft bore. OEM-style die-stamped throttle linkages maintain the factory cable feel with no binding or sticking. While the 1700 is compatible with the factory upper plenum and inlet tubing, maximum performance gains are achieved when paired with a cold air intake and aftermarket upper plenum. A Throttle Position Sensor (TPS), gasket, and all required hardware are included so no additional parts are needed for installation.

The BBK 1700 is CARB approved under Executive Order D-245-15 and is 50-state street legal for 1996-2001 Ford Mustang 4.6L GT and Ford passenger car 4.6L applications - making it one of the few performance throttle bodies that enthusiasts in all 50 states including California can install with full emissions compliance. Note that this throttle body fits the 2V SOHC engine only and will not fit the 4.6L 4V DOHC Cobra, Mach 1, or GT500 applications, nor the 4.6L Crown Victoria or F-Series Truck (different throttle linkage). Designed and manufactured in the USA and backed by BBK's 1-year limited warranty.
