Haltech HT-010509 Dual Switch Panel Kit 2x 12 Position Rotary Trim Boost Fuel

Vehicle Fitment

• Universal - compatible with all Haltech ECU platforms including the Nexus S2, S3, R3, R5, Elite 550, 750, 1500, 2500, and plug-in ECU series
• Also compatible with any ECU or device that accepts 0-5V analog input signals
• Designed for dual-function cockpit control - ideal for any build requiring simultaneous independent adjustment of two ECU parameters

Fitment Notes

• Each of the two included 12-position rotary trim modules connects to a separate analog voltage input (0-5V) on a compatible ECU. Function assignment is configured in Haltech's ESP or NSP software.
• Each switch is pre-terminated with a Deutsch DTM-3 connector; a mating connector is included for each switch.
• The dual panel mounts to a flat surface in the cabin - no specific vehicle bracket required. Panel dimensions should be verified against available dash or console space before installation.
• Not legal for use on emissions-controlled vehicles on public roads. Designed for sanctioned off-road and competition use only.

Features

• Includes two 12-position rotary trim modules, each providing 12 distinct 0-5V analog steps for independent ECU parameter control.
• Dual panel design mounts both switches side-by-side in a single, compact cockpit panel - eliminating separate mounting of two individual switches.
• Adjustable functions include boost level, fuel trim, ignition correction, torque management, launch RPM, traction control, nitrous control, and more - all assignable in ECU software.
• Yellow adjustment knob included for one switch position - provides a distinctive visual indicator for quick identification during competition.
• Each switch pre-terminated with Deutsch DTM-3 connector for a sealed, vibration-resistant professional connection.
• Two mating DTM-3 connectors included - ready to wire directly to ECU harness without sourcing additional connectors.
• 0-5V output on each module is compatible with Haltech ECUs and any other ECU accepting standard analog inputs.
• Complete bundle - panel, knob, and both switches included; no additional hardware required for installation.

Specifications

• Part Number: HT-010509
• Type: Dual 12-Position Rotary Trim Module Panel Kit
• Output Signal: 0-5V analog (per module)
• Number of Switch Positions: 12 (per module)
• Number of Modules: 2
• Connector: Deutsch DTM-3 (pre-terminated, mating connectors included)
• Application: Universal - Boost / Fuel / Ignition / Launch / Traction / Nitrous trim control

Included Components

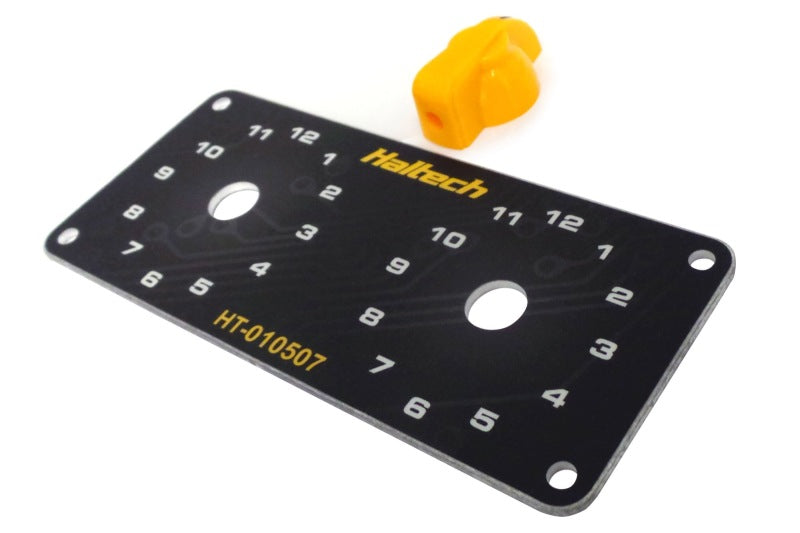

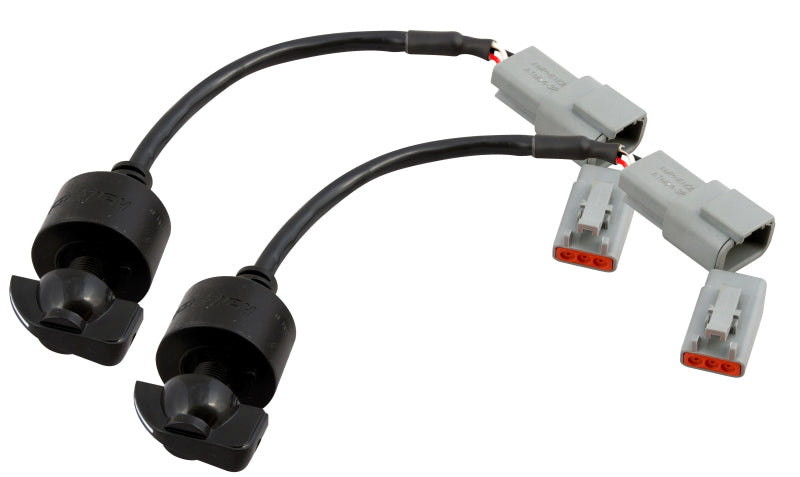

• 2x Haltech 12 Position Rotary Trim Modules (pre-terminated with Deutsch DTM-3 connectors)
• 2x Mating Deutsch DTM-3 connectors with pins

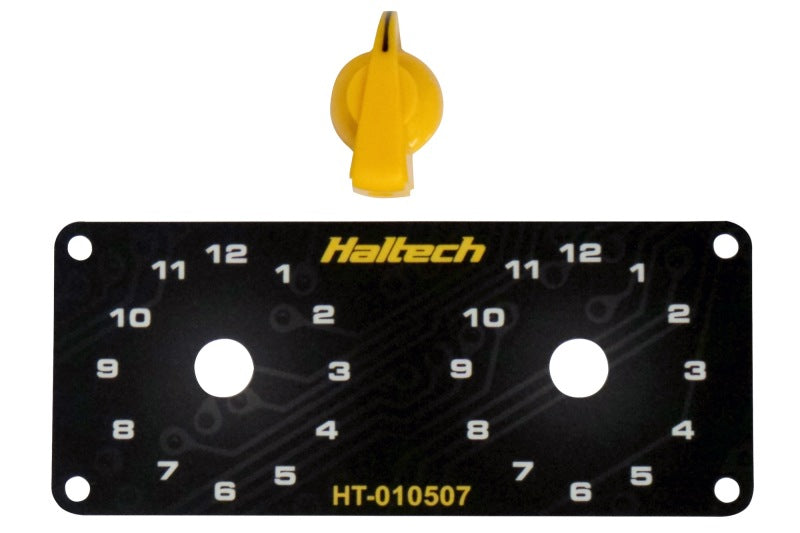

• 1x Dual mounting panel
• 1x Yellow adjustment knob

Product Description

The Haltech HT-010509 Dual Switch Panel Kit bundles two 12-position rotary trim modules with a dual mounting panel and yellow adjustment knob, giving drivers independent in-cabin control of two separate ECU functions simultaneously. Each switch outputs a 0-5V analog signal across 12 positions, which maps to any compatible analog input channel on a Haltech ECU. Common assignments include boost target on one switch and launch RPM or traction control threshold on the other - or any combination of fuel trim, ignition correction, nitrous control, and torque management supported by the ECU software.

The panel integrates both switches into a single, clean cockpit mount rather than two separate installations, keeping the dash tidy and reducing wiring complexity. Each switch arrives pre-terminated with a Deutsch DTM-3 connector, and matching mating connectors are included for direct harness connection. The yellow adjustment knob provides a quick visual reference in a competition environment. For builds requiring only one switch, the individual module is available separately as HT-010504.
