Ridetech 12299122 Rear Sway Bar for 2015-2026 Ford F-150 Lowered

Vehicle Fitment

• 2015-2026 Ford F-150 (2WD & 4WD) with Ridetech lowering suspension system

Features

• Rear sway bar designed to improve handling and reduce body roll
• Precision CNC-bent tubing for accurate and repeatable fitment
• 1.125" diameter bar with a 170 lb rate for balanced rear stiffness
• Billet aluminum frame mounts with anodized black finish

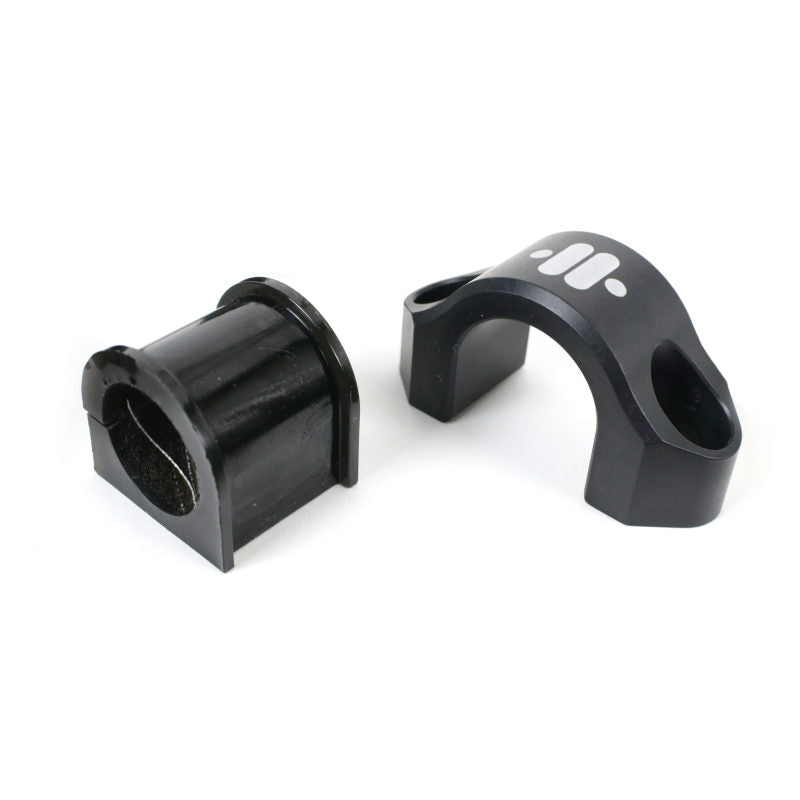

• Delrin-lined frame bushings for low-friction movement
• Spherical end links for smooth articulation and responsiveness
• Enhances cornering stability with lowered suspension
• Bolt-on installation with included hardware and links

Specifications

• Part Number: 12299122
• Suspension Location: Rear
• Sway Bar Diameter: 1.125"
• Bar Rate: 170 lbs
• Material: Steel tubing with powder-coat finish
• Bushing Material: Delrin-lined mounts
• Compatibility: Must be used with Ridetech lowering kit
• Fitment: 2015-2026 Ford F-150 2WD & 4WD

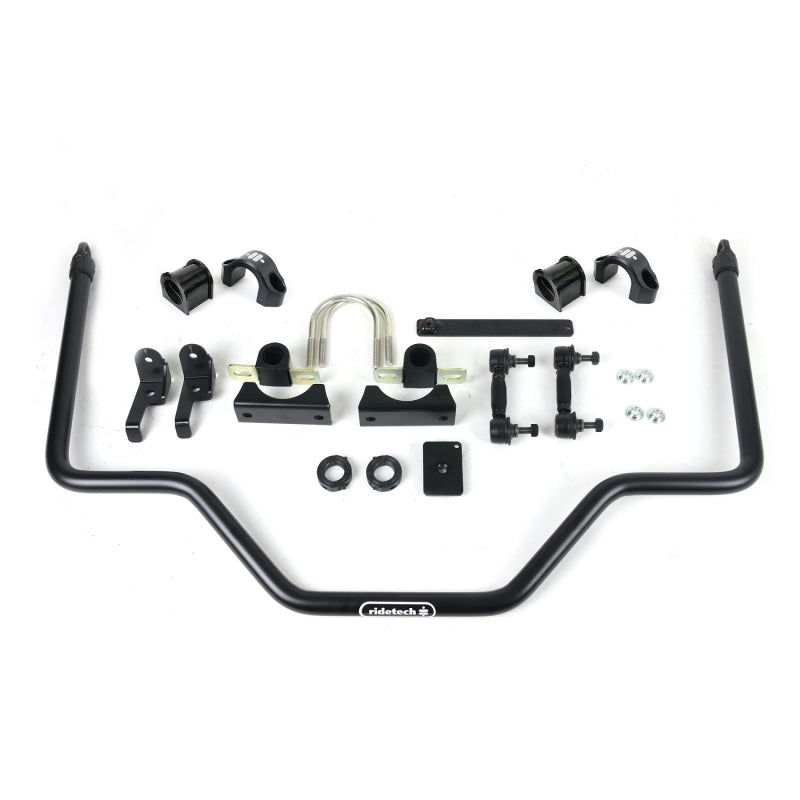

Included Components

• 1x Rear sway bar
• 2x Spherical end links
• 2x Frame mount brackets
• Delrin-lined bushings
• Installation hardware

Product Description

The Ridetech 12299122 Rear Sway Bar is an engineered handling upgrade for 2015-2026 Ford F-150 trucks equipped with a Ridetech lowering suspension system. Designed to address the common issue of excessive body roll in trucks with lowered ride heights and performance-oriented setups, this rear sway bar enhances cornering stability and responsiveness. Its 1.125" diameter and 170 lb rate provide increased rear roll stiffness without compromising everyday ride quality.

Precision CNC-bent tubing forms the backbone of the sway bar, while billet aluminum mounts and Delrin-lined bushings ensure smooth pivoting and long-lasting performance. The inclusion of spherical end links improves articulation and reduces harsh feedback when cornering, making this kit ideal for lowered F-150s used on both street and performance driving applications. Installation is bolt-on with all required hardware included, though this bar is specifically designed to work in conjunction with a Ridetech rear lowering kit for best results.
