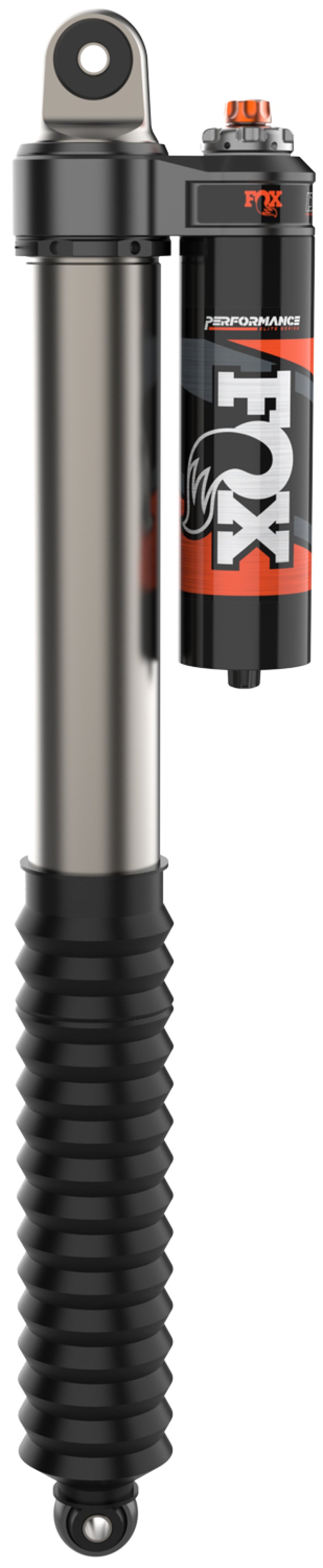

FOX 883-26-122 Perf Elite 2.5 Adj Rear Reservoir Shocks for 21-26 F-150 4WD

Vehicle Fitment

• 2021-2026 Ford F-150 4WD -- 0-2" lift

Fitment Notes

• 4WD models ONLY
• NOT for Raptor or Raptor R
• NOT for Tremor -- rear shock lengths are too short for Tremor's taller factory ride height
• Rear position -- sold as a pair (2 shocks)
• Supports 0-2" lift range on standard F-150
• Eyelet/eyelet mounting
• External reservoir -- confirm clearance with bed/frame
• Drilling may be required for reservoir mounting
• Professional installation recommended

Features

• Performance Elite Series -- race-derived technology for trucks/SUVs
• 2.5" oversized body for increased oil volume and heat dissipation
• External reservoir for increased oil and nitrogen capacity
• Dual Speed Compression (DSC) adjuster for on-the-fly tuning
• Internal bypass valve for superior damping control
• Race-developed high-flow piston design
• Application-specific valving tuned for F-150 rear
• Nitrogen gas charged for fade-free performance
• Fully rebuildable and serviceable

Specifications

• Part Number: 883-26-122
• Series: Performance Elite
• Body Diameter: 2.5"
• Body Material: Smooth bore zinc plated seamless steel
• Reservoir: External, hose-mounted
• Shaft: 7/8" hard chrome plated heat-treated alloy steel
• Piston: 6061-T6 hard-anodized high-flow aluminum
• Components: Black-anodized CNC-machined 6061-T6 billet aluminum
• Bearings: PTFE-lined heat-treated alloy steel spherical
• Seals: Redundant pack -- main seal, wiper seal, scraper seal
• Adjustment: Dual Speed Compression (DSC)
• Mounting: Eyelet/eyelet
• Lift Range: 0-2"
• Position: Rear
• Quantity: Sold as a pair
• UPC: 00711745592872

Included Components

• 2x FOX Performance Elite 2.5 rear reservoir shocks
• 2x External reservoirs with hoses
• Reservoir mounting clamps
• Bushings, washers, and hardware

Product Description

The FOX 883-26-122 is a pair of Performance Elite Series 2.5 adjustable rear reservoir shocks for the 2021-2026 Ford F-150 4WD with 0-2 inches of lift, excluding Raptor and Tremor models. Developed directly from FOX's off-road race shocks, the Performance Elite Series combines race-proven technology with cutting-edge features including an external reservoir for increased oil and nitrogen capacity and a Dual Speed Compression (DSC) adjuster that allows on-the-fly fine-tuning of compression damping to match driving conditions -- from smooth highway cruising to aggressive off-road terrain. Note: these rear shocks are too short for F-150 Tremor models due to the Tremor's taller factory ride height and different knuckle geometry.

The oversized 2.5-inch smooth bore zinc plated seamless steel body provides greater internal oil volume than standard 2.0-inch shocks for improved heat dissipation and more precise control through FOX's race-developed high-flow pistons with application-specific valving tuned for the F-150 rear suspension. The 7/8-inch hard chrome plated heat-treated alloy steel shaft and redundant sealing pack system (main seal, wiper seal, scraper seal) are designed for harsh environments and extreme conditions. PTFE-lined heat-treated alloy steel spherical bearings ensure precise movement with minimal friction. Fully rebuildable and serviceable for a lifetime of use. Backed by FOX's limited lifetime warranty.
