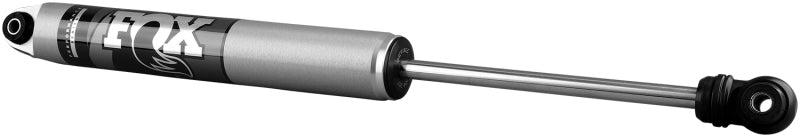

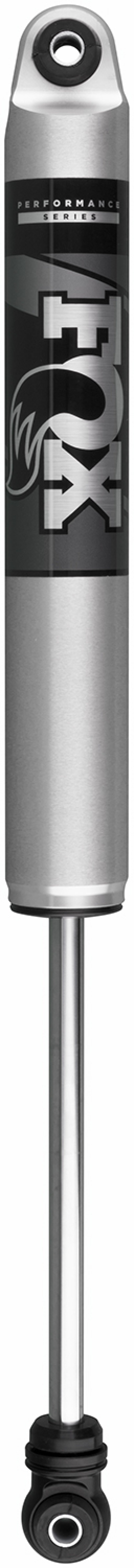

FOX 985-24-207 Rear IFP Shock for 19-23 Ford Ranger 0-1.5in Lift

Vehicle Fitment

• 2019-2023 Ford Ranger (rear, 0-1.5in lift, 4WD/RWD)
• Fits U.S. models only
• Drive type: All
• Position: Rear
• Fitment confirmed through 2023 from cross-validated trusted sources.
• Fitment confirmed through 2024 was not consistently shown in the sources reviewed. 2025 coverage unconfirmed at time of listing.

Features

• FOX 2.0 Performance Series smooth body IFP rear shock
• Internal Floating Piston separates shock oil from high-pressure nitrogen gas
• Vehicle-specific performance tuning for Ford Ranger applications
• 2.0in impact-extruded and CNC-machined 6061-T6 aluminum body
• Clear-anodized body helps resist corrosion
• Race-developed high-flow piston design
• Application-specific valving to maximize ride control
• Monotube smooth body construction for consistent damping performance
• Direct-fit rear shock configuration for stock-height to mildly lifted trucks
• Black-anodized CNC-machined aluminum components

Specifications

• Position: Rear
• Shock type: 2.0 Performance Series smooth body IFP shock
• Body diameter: 2.0in
• Rear lift compatibility: 0-1.5in
• Travel: 9.62in
• Extended length: 25.92in
• Compressed length: 16.30in
• Shaft diameter: 5/8in

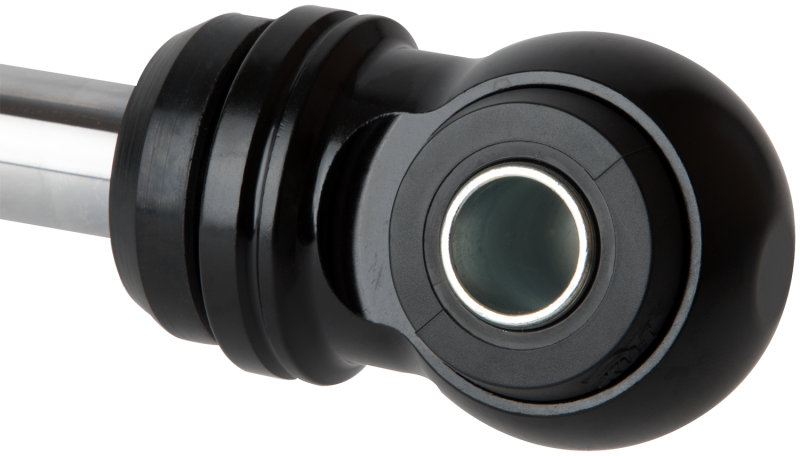

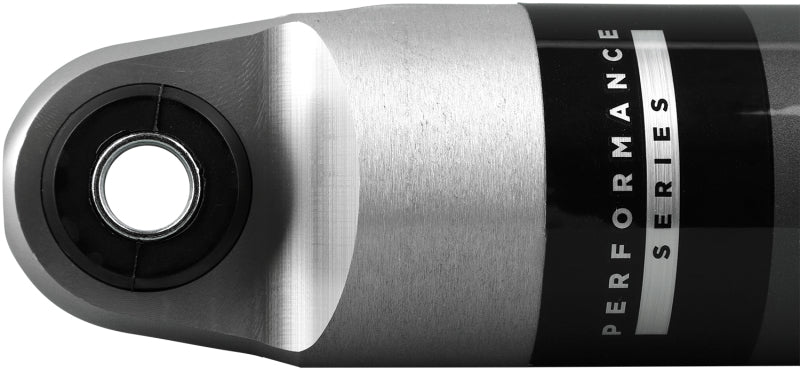

• Upper mount: Eyelet
• Lower mount: Eyelet
• Quantity: 1x shock sold individually

Included Components

• 1x Rear IFP shock
• 1x Mounting hardware set

Product Description

The FOX 985-24-207 is a 2.0 Performance Series smooth body IFP rear shock for the 2019-2023 Ford Ranger. It is designed for drivers who want improved rear damping control, better ride quality, and more consistent suspension performance than stock replacement shocks can provide on pavement, rough roads, and light off-road terrain. The internal floating piston separates the shock oil from the nitrogen charge to help maintain stable damping under repeated suspension movement.

Verified trusted sources support rear fitment for 2019-2023 U.S.-spec Ford Ranger models, with coverage for 0 to 1.5 inches of rear lift. The lift amount applies to the rear only; this part does not provide front lift. Confirmed specs include 9.62 inches of travel, 25.92-inch extended length, 16.30-inch compressed length, a 2.0-inch clear-anodized aluminum body, 5/8-inch shaft, and eyelet/eyelet mounting.

This shock is sold individually, so 2x shocks are typically required for a full rear axle installation. I did not extend fitment to 2024 or 2025 because the trusted sources reviewed in this pass consistently showed 2019-2023 coverage, while newer-year confirmation was not clearly cross-validated for this exact part number.
