Radium Engineering 20-1992-00 FCST-X Fuel Cell Surge Tank (Pumps Not Included)

Vehicle Fitment

• Universal application - designed for use in competition fuel cells with a 6"x10", 24-bolt top-plate flange and minimum internal depth of 196 mm (7.7").

Features

• FCST-X (Fuel Cell Surge Tank) system without internal pumps included - allows installation of up to one lift pump + up to three surge pumps. :contentReference[oaicite:1]{index=1}
• Merged single 10AN ORB female outlet port for clean, high-flow plumbing. :contentReference[oaicite:2]{index=2}
• Three one-way fill valves (≈ 355 LPH each) keep the surge chamber full during high-G cornering or rapid direction changes. :contentReference[oaicite:3]{index=3}
• Anodised billet aluminium construction with high-current stainless steel electrical studs - designed for durability and racing use. :contentReference[oaicite:4]{index=4}
• Fuel compatible with gasoline, ethanol (E85), methanol when using suitable plumbing and components. :contentReference[oaicite:5]{index=5}
• Fast-lift access design: service panel allows pump module change or access with minimal downtime. :contentReference[oaicite:6]{index=6}
• Return port: 6AN male; Vent port: 8AN male standard - adapters available for other configurations. :contentReference[oaicite:7]{index=7}

Specifications

• Model: FCST-X, part number 20-1992-00 - no pumps included; supports up to one lift + up to three surge pumps. :contentReference[oaicite:8]{index=8}
• Outlet: 10AN ORB female (adapter to 8AN male included in many kits). :contentReference[oaicite:9]{index=9}
• Return port: 6AN male (standard configuration). :contentReference[oaicite:10]{index=10}
• Vent port: 8AN male standard (upgradeable for high-flow dry-break vent systems). :contentReference[oaicite:11]{index=11}
• Compatible tank requirement: Top-mounted 6"x10" (152x254 mm), 24-bolt flange; internal depth minimum 196 mm. :contentReference[oaicite:12]{index=12}
• Surge tank internal volume: approx. 2.6 litres (FCST-X series) when fully configured. :contentReference[oaicite:13]{index=13}

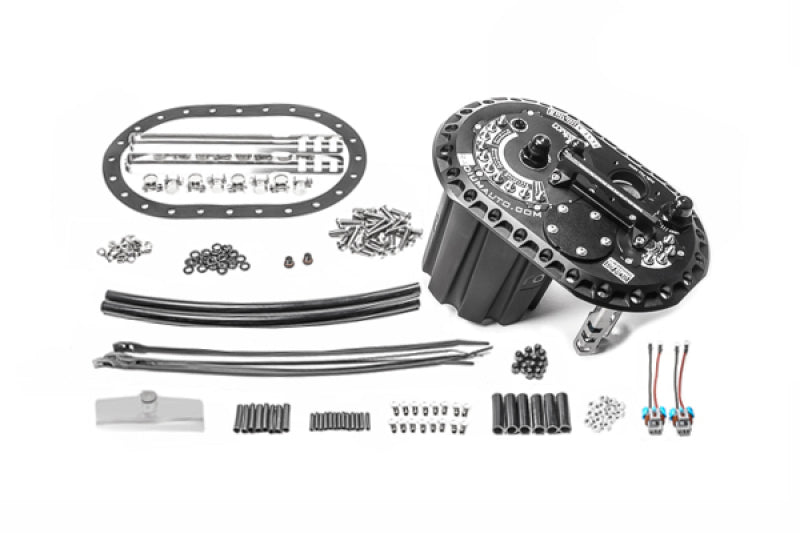

Included Components

• 1x Radium Engineering 20-1992-00 FCST-X surge tank assembly (pumps NOT included)
• Gasket for 6"x10", 24-bolt flange drop-in installation
• 10AN ORB to 8AN male adapter fitting (standard in many kits) and 8AN roll-over vent valve
• Sealing hardware and installation instruction set

Product Description

The Radium Engineering 20-1992-00 FCST-X Fuel Cell Surge Tank is a high-performance solution for competition-grade fuel systems, built around the needs of high-flow, high-G, or sustained-boost applications. With a dedicated surge tank chamber integrated into the fuel cell module, this unit ensures that the surge pump(s) remain fed even during extreme cornering, launches or elevation changes - reducing the risk of fuel starvation and maintaining steady rail pressure in tuned or racing engines. :contentReference[oaicite:14]{index=14}

This version is supplied without internal pumps, giving you the flexibility to choose your own lift and surge pumps based on your engine's fuel demand. It uses a single high-flow 10AN outlet for simplified plumbing, adheres to motorsport standard drop-in tank protocols (6"x10", 24-bolt flange) and offers adaptability for alternative fuels like E85 or methanol with proper system configuration. Whether building a purpose-built racecar, high-power street machine or endurance rig, the 20-1992-00 FCST-X provides a scalable foundation for reliable fuel delivery under serious performance conditions.
