Ford Racing M-6066-M8800 Supercharger Kit for 24-25 Mustang GT/Dark House

Vehicle Fitment

• 2024-2025 Ford Mustang GT (5.0L V8, S650, manual/automatic)
• 2024-2025 Ford Mustang Dark Horse (5.0L V8, S650, manual/automatic)
• Platform: S650
• Engine: 5.0L Coyote V8
• Manufacturer note: Factory strut tower brace is not compatible with this kit
• Emissions note: CARB EO coverage is listed for 2024-2025 model years
• Manufacturer note: Not available for California for 2026 model year
• Fitment confirmed through 2025. 2026 coverage differs by emissions availability and should be verified separately.

Features

• Ford Performance supercharger kit developed with Whipple
• Complete forced-induction upgrade for 2024-2025 Mustang GT and Dark Horse
• Calibrated Ford Performance package for S650 5.0L applications
• Produces up to 810 hp on active-exhaust-equipped applications

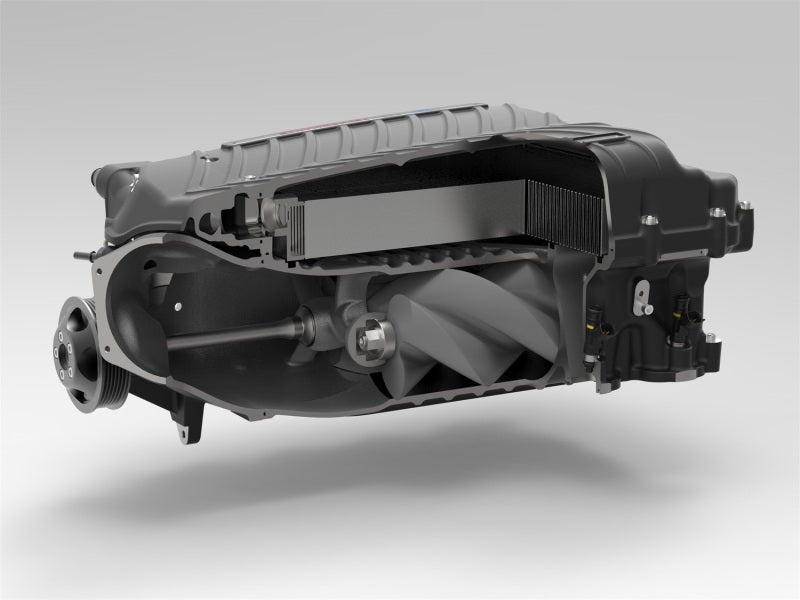

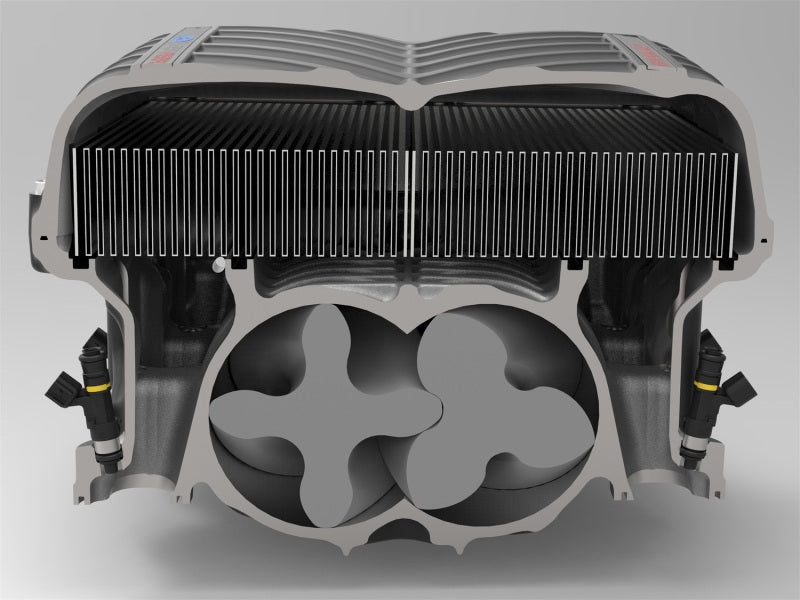

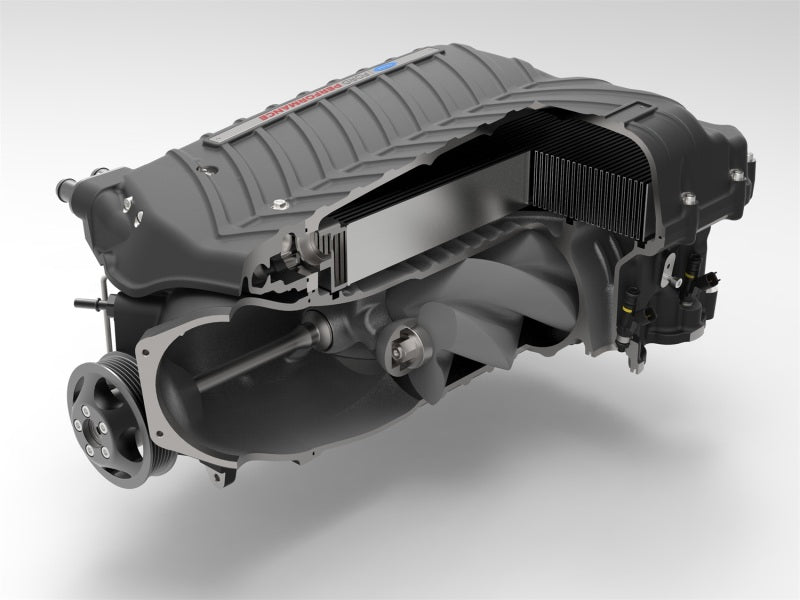

• Roots-style/twin-screw supercharger system with integrated intercooling
• Designed to retain a Ford Performance-backed 3-year/36,000-mile warranty when installed and registered per manufacturer requirements
• 50-state street-legal coverage is source-dependent by model year, with CARB EO specifically called out for 2024-2025
• Engineered as a vehicle-specific bolt-on system rather than a universal blower kit
• Ford Performance calibration and hardware package included
• Built for high-output street performance on the Gen 4 Coyote S650 platform

Specifications

• Part number: M-6066-M8800
• Product type: Supercharger kit
• Application: 2024-2025 Mustang GT / Dark Horse 5.0L V8
• Platform: S650
• Supercharger type: Whipple-based roots-style / twin-screw kit

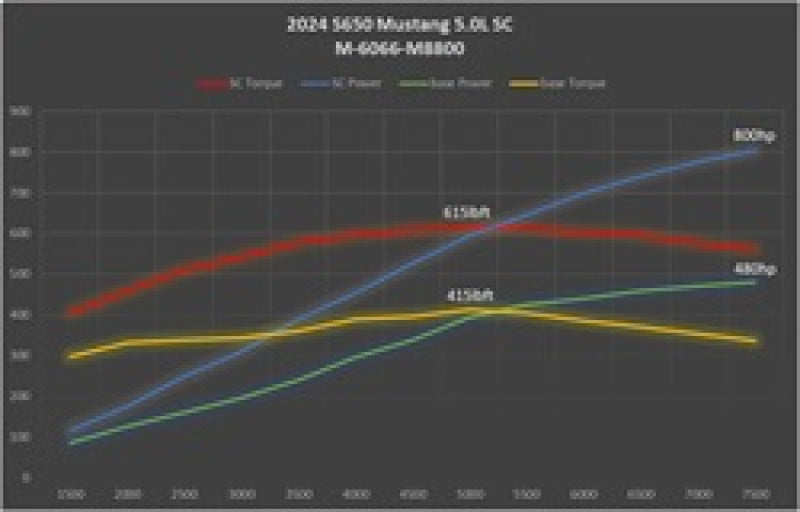

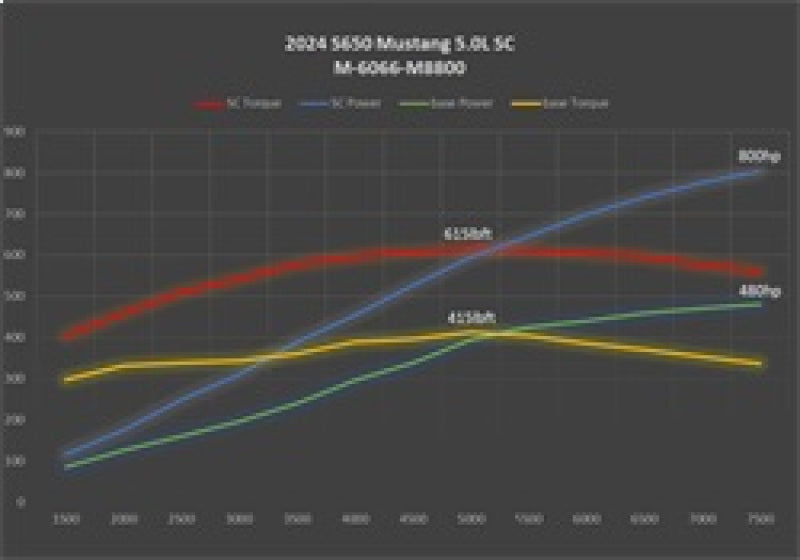

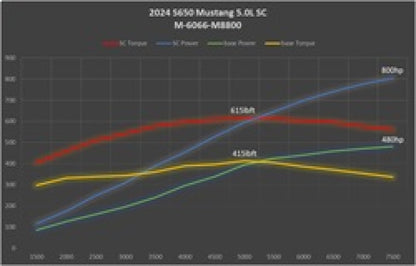

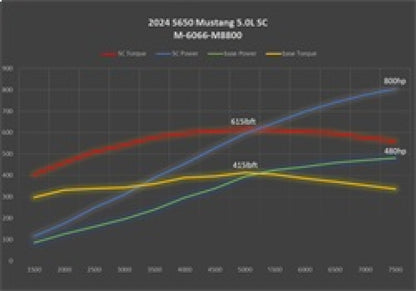

• Peak output: up to 810 hp at 7,500 rpm
• Peak torque: up to 615 lb-ft at 4,800 rpm
• Horsepower note: 800 hp is referenced for non-active-exhaust applications

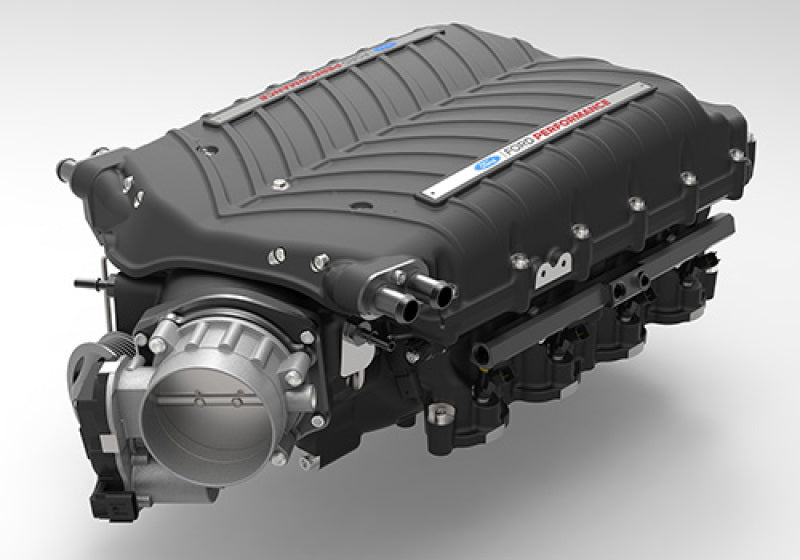

• Throttle body: 92mm

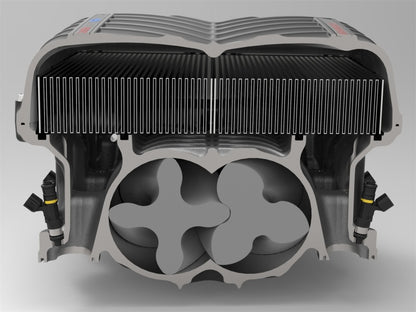

• Intercooler: Dual-core dual-pass intercooler system
• Warranty note: 3-year/36,000-mile Ford Performance warranty when installed and registered per program requirements

Included Components

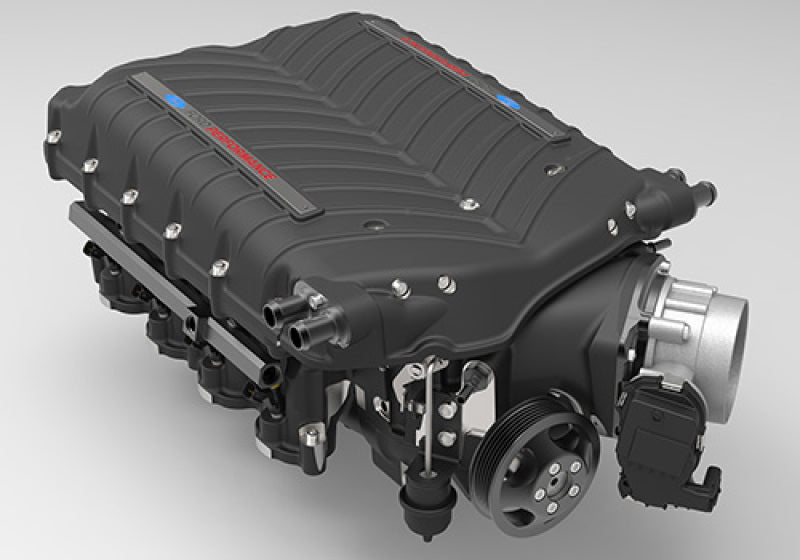

• 1x Supercharger assembly
• 1x Intercooler system
• 1x 92mm throttle body
• 1x Fuel injector set
• 1x Spark plug set
• 1x Ford Performance calibration tool/package
• 1x Installation hardware and fittings set

Product Description

The Ford Racing M-6066-M8800 is a Ford Performance supercharger kit for 2024-2025 Mustang GT and Dark Horse models equipped with the 5.0L Coyote V8 on the S650 platform. Developed with Whipple, this kit is designed to deliver a major increase in power while maintaining vehicle-specific calibration and installation support. Verified source data lists output at up to 810 horsepower and 615 lb-ft of torque, with a lower 800-hp figure noted for non-active-exhaust applications.

This kit is intended for enthusiasts who want a high-output, emissions-conscious forced-induction package from Ford Performance rather than a universal supercharger setup. Cross-validated source data confirms 2024-2025 GT and Dark Horse fitment, a 92mm throttle body, dual-core dual-pass intercooling, included fuel injectors and spark plugs, and Ford Performance calibration support. The factory strut tower brace is not compatible with this system.

Because this part affects emissions-related hardware and calibration, the emissions notes are preserved exactly where supported: Ford Performance lists CARB EO coverage for 2024-2025 model years and separately states the kit is not available for California for the 2026 model year. This is not a lift or lowering component, so no lift or drop height applies.
