QA1 52093 Bolt-In Subframe Connector Kit 1967-1969 Chevy Camaro Pontiac Firebird

Vehicle Fitment

• 1967-1969 Chevrolet Camaro Coupe (All trims, All engines)
• 1967-1969 Pontiac Firebird Coupe (All trims, All engines)

Fitment Notes

• Does NOT fit 1967-1969 Camaro or Firebird Convertible models - coupes only
• Compatible with both factory leaf spring rear suspension and QA1 four-link conversion systems
• Requires QA1 solid body bushings (sold separately) - must be installed before subframe connectors
• Front leaf spring mounts must be temporarily removed during installation
• Torque mounting hardware to 100 lb-ft with suspension loaded at completion of installation

Features

• Tubular design connects the front stub subframe to the rear subframe, significantly increasing chassis rigidity and eliminating unibody flex
• Measurable improvement in handling during cornering, acceleration, and braking - especially relevant for modified or high-horsepower builds
• Contours to follow the factory body lines for a factory-like appearance without sacrificing ground clearance
• Included solid aluminum body mounts further reduce chassis flex - quieter and more durable than polyurethane alternatives
• Bolt-in installation using factory mounting locations - no cutting, welding, or fabrication required
• Works with stock leaf spring rear suspension and QA1 four-link conversion kits
• Made in the USA at QA1's Lakeville, MN facility

Specifications

• Application: 1967-1969 GM F-Body (Camaro Coupe, Firebird Coupe)
• Construction: Tubular steel subframe connectors
• Body Mounts: Solid aluminum - included
• Installation Type: Bolt-in (no welding required)
• Rear Suspension Compatibility: Leaf spring (stock) and QA1 four-link conversion
• Convertible Fitment: Not compatible
• Torque Spec: 100 lb-ft at mounting points (suspension loaded)
• Warranty: 1 Year Limited

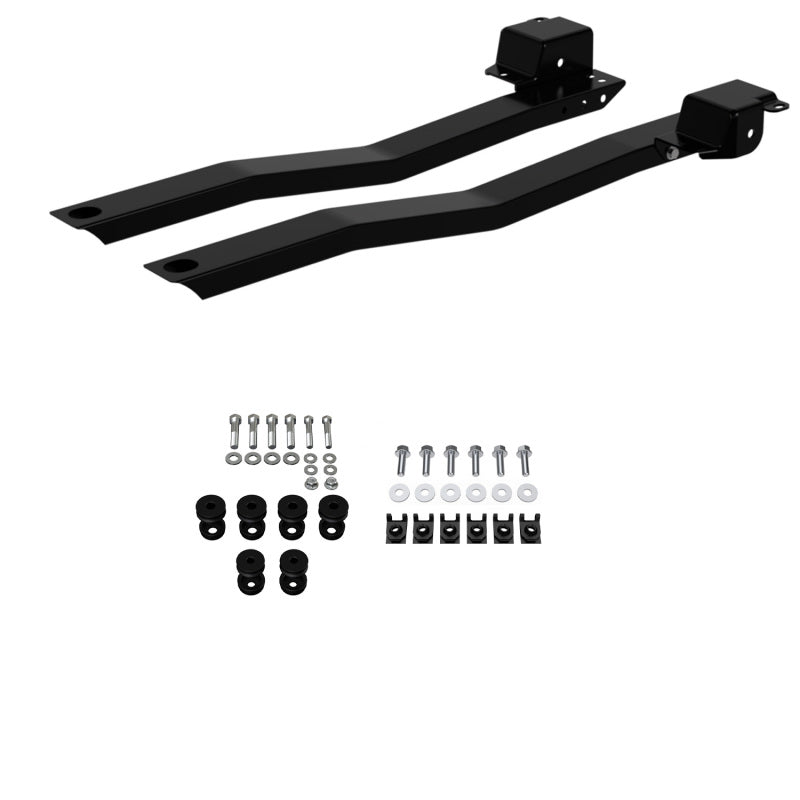

Included Components

• 2x Tubular Steel Subframe Connectors (driver and passenger side)
• 2x Solid Aluminum Body Mounts
• 1x Complete Hardware Kit (bolts, fasteners)

Product Description

The QA1 52093 Subframe Connector Kit is a bolt-in chassis stiffening solution for the 1967-1969 Chevrolet Camaro Coupe and Pontiac Firebird Coupe. These first-generation F-bodies were built on a unibody platform that, while advanced for their era, is prone to flex and torsional twist under the stresses of hard cornering, aggressive acceleration, and modern tire grip levels. The QA1 subframe connectors address this directly by connecting the front stub subframe to the rear subframe with tubular steel bracing, dramatically increasing chassis rigidity and providing a noticeably more solid, precise feel at the wheel - whether the car is street-driven, drag-raced, or used as a weekend performance build.

The kit contours to follow the Camaro's body lines for a clean, factory-like appearance that doesn't compromise ground clearance, and the included solid aluminum body mounts eliminate the flex contribution of soft rubber or deteriorating OEM bushings without the noise drawbacks of polyurethane. Installation is a true bolt-in using factory mounting points - no welding or cutting is required. The connectors are compatible with both stock leaf spring rear suspension and QA1's four-link conversion kits. Note that solid body bushings from QA1 must be installed prior to fitting the subframe connectors, and front leaf spring mounts must be temporarily removed during the process. This kit does not fit convertible models.
