FOX 983-02-243 Factory Race 2.0 ATS Stabilizer for INEOS Grenadier/Quartermaster

Vehicle Fitment

• 2024-2026 INEOS Grenadier (Base, AWD)
• 2024-2026 INEOS Grenadier Fieldmaster (AWD)
• 2024-2026 INEOS Grenadier Trialmaster (AWD)
• 2025-2027 INEOS Grenadier Quartermaster (AWD)
• 2025-2027 INEOS Grenadier Quartermaster Fieldmaster (AWD)
• 2025-2027 INEOS Grenadier Quartermaster Trialmaster (AWD)

Fitment Notes

• AWD models only
• Application-specific valving -- direct-fit for INEOS Grenadier steering geometry
• Single ATS unit replaces need for dual opposing stabilizers
• Top mount: tie rod clamp -- bottom mount: eyelet
• Sold individually -- 1 stabilizer per listing

Features

• Adjustable Through Shaft (ATS) design -- eliminates fluid displacement throughout full travel
• Neutral, consistent damping in both directions -- no push or pull effect
• External piggyback reservoir with Internal Floating Piston (IFP)
• IFP separates fluid from nitrogen gas charge -- eliminates cavitation
• 24-click external compression adjuster
• Race-developed high-flow piston design
• Application-specific valving
• 2.0" impact extruded and CNC machined 6061-T6 clear anodized aluminum body
• Hard-anodized body finish
• Black anodized CNC-machined 6061-T6 billet aluminum components
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Aluminum body dissipates heat faster than steel
• Compact single-unit design -- no dual-stabilizer hardware required

Specifications

• Part Number: 983-02-243
• Series: Factory Race
• Type: ATS Steering Stabilizer
• Body Diameter: 2.0"
• Travel: 8.12"
• Compressed Length: 16.37"
• Extended Length: 24.49"
• Reservoir: External piggyback with IFP
• Adjuster: 24-click external compression
• Top Mount: Tie rod clamp
• Bottom Mount: Eyelet
• Body Material: 6061-T6 aluminum (clear anodized)
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Component Finish: Black anodized
• Quantity: 1 stabilizer

Included Components

• 1x FOX Factory Race 2.0 ATS Steering Stabilizer

Product Description

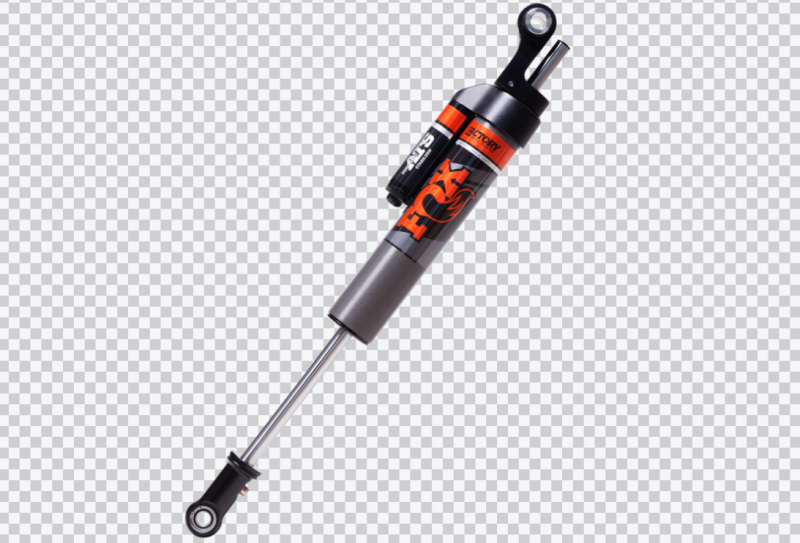

The FOX 983-02-243 is a Factory Race Series 2.0 ATS (Adjustable Through Shaft) steering stabilizer engineered as a direct-fit upgrade for the INEOS Grenadier and Quartermaster. Conventional steering stabilizers create a directional push or pull force as the shaft displaces fluid when moving in one direction -- a bias that typically requires a second opposing stabilizer to counter. The ATS architecture eliminates this at the source: the through shaft passes completely through the body in both directions, removing fluid displacement throughout the stabilizer's full travel. The result is neutral, consistent damping with no directional bias from a single compact unit.

The external piggyback reservoir uses an Internal Floating Piston (IFP) to separate the hydraulic fluid from the nitrogen gas charge, eliminating cavitation during sustained or aggressive use. A 24-click external compression adjuster allows the driver to dial damping feel to match terrain, tire size, or load. The 5/8" hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, and application-specific valving round out a component built to FOX's Factory Race standard. Installs at the OEM tie rod clamp and eyelet mounting locations -- no additional hardware required. Sold as a single stabilizer.
