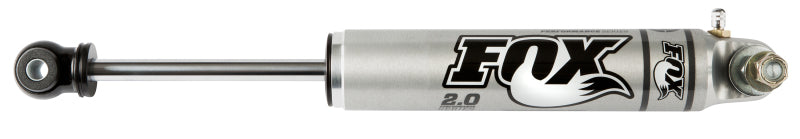

FOX 985-24-035 2.0 Performance Series IFP Steering Stabilizer for 2005-2007 Ford

Vehicle Fitment

• 2005-2007 Ford F-250 Super Duty 4WD
• 2005-2007 Ford F-350 Super Duty 4WD
• 2005-2007 Ford F-450 Super Duty 4WD
• 2005-2007 Ford F-550 Super Duty 4WD

Features

• 2.0" impact-extruded and CNC-machined 6061-T6 aluminum body
• Clear anodized finish for enhanced durability and corrosion resistance
• Internal Floating Piston (IFP) mono-tube design for consistent performance
• Race-developed high-flow damping piston matched with application-specific valving
• Redundant sealing pack system (main seal, wiper seal, scraper seal)
• Black-anodized, CNC-machined 6061-T6 billet aluminum components
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Easy bolt-on installation with no modifications required

Specifications

• Extended Length: 27.3 inches
• Collapsed Length: 17.2 inches
• Travel: 10.1 inches
• Top Mount: Stem
• Bottom Mount: Tapered Pin
• Reservoir Type: Internal Floating Piston (IFP)
• Body Material: 6061-T6 aluminum
• Reservoir Material: Smooth bore 6061-T6 aluminum
• Reservoir Finish: Clear anodized
• Shaft: 5/8" hard chrome plated heat-treated alloy steel

Included Components

• 1x FOX 985-24-035 2.0 Performance Series IFP Steering Stabilizer
• 1x Hardware kit (washers, bushings, nuts)
• 1x Installation instructions

Product Description

The FOX 985-24-035 2.0 Performance Series IFP Steering Stabilizer is engineered to enhance the steering control and stability of your 2005-2007 Ford Super Duty 4WD truck. Featuring a 2.0" impact-extruded and CNC-machined 6061-T6 aluminum body, this stabilizer dissipates heat more effectively than conventional steel shocks, ensuring consistent performance under demanding conditions.

The Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber, eliminating oil aeration and allowing maximum performance from the factory-tuned precision valving. The race-developed high-flow damping piston and application-specific valving provide improved damping performance, delivering a smooth and controlled ride both on and off the road. Installation is straightforward, utilizing factory mounting locations with no modifications required.
