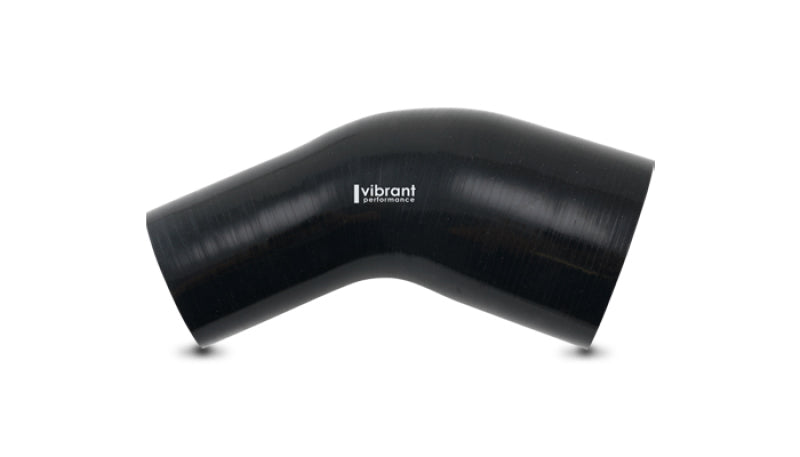

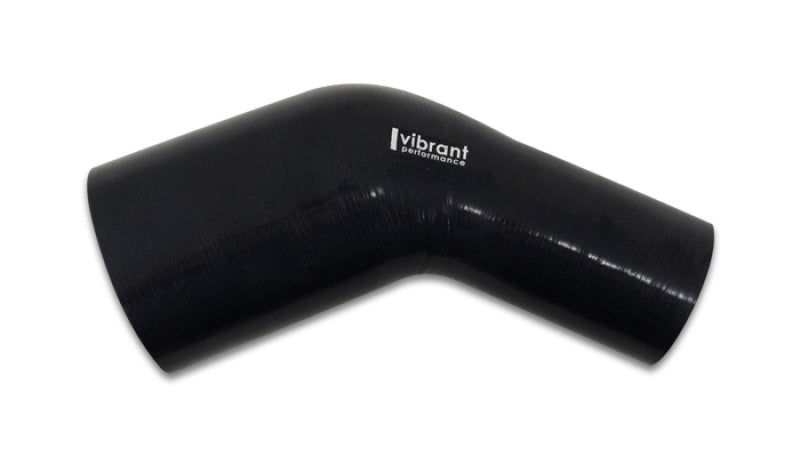

Vibrant 19768 Aramid Reinforced 45 Deg Silicone Transition Elbow 3.25" to 3.00" ID

Vehicle Fitment

• Universal - Compatible with any custom charge air cooler, intercooler, or intake system transitioning from 3.25" O.D. to 3.00" O.D. tubing at a 45° angle

Fitment Notes

• Universal part - not vehicle-specific; designed to transition from 3.25" O.D. to 3.00" O.D. tubing at a 45° bend
• Suitable for air, water, and coolant service only - not suitable for oil or fuel applications
• Compatible with both hot-side and cold-side intercooler and CAC applications
• Sold individually - one elbow coupler per package

Features

• High temperature resistant Aramid reinforcement fabric between each silicone layer for superior pressure and heat resistance
• 45° transition design accommodates both a direction change and pipe diameter reduction in one compact coupler
• Ideal for space-constrained intercooler and charge pipe routing where tubing size and direction must both change
• Wide operating temperature range: -75°F to 392°F (-60°C to 200°C)
• UV and ozone resistant silicone construction meets or exceeds SAE J20 specifications
• Black finish delivers a clean, professional aesthetic in the engine bay
• 1-year limited warranty backed by Vibrant Performance

Specifications

• Style: 45° Aramid Reinforced Silicone Transition Elbow
• Inlet I.D.: 3.25 in.
• Outlet I.D.: 3.00 in.
• Leg Length From Tangent: 4.00 in.
• Centerline Radius: 3.25 in.
• Max Operating Pressure: 35 psi
• Operating Temp Range: -75°F to 392°F (-60°C to 200°C)
• Material: Multi-Layer Aramid Reinforced Silicone
• Color: Black
• Service: Air, Water, Coolant - Not for oil or fuel

Included Components

• 1x Vibrant 19768 Aramid Reinforced 45° Silicone Transition Elbow - 3.25" to 3.00" I.D.

Product Description

The Vibrant Performance 19768 is an Aramid reinforced 45° silicone transition elbow designed for custom charge air, intercooler, and intake plumbing applications that require both a direction change and a pipe size reduction in a single compact coupler. Transitioning from a 3.25" inlet I.D. to a 3.00" outlet I.D. at a 45° angle, it is ideal for space-constrained engine bay routing where straight reducers or separate elbow and reducer combinations won't fit.

High temperature resistant Aramid reinforcement fabric between each silicone layer provides robust pressure resistance and an operating temperature range of -75°F to 392°F - suitable for both hot-side and cold-side forced induction plumbing. UV and ozone resistant and SAE J20 compliant, it is sold individually and universally compatible with 3.25" to 3.00" O.D. tubing configurations.
