Eibach E70-35-061-01-22 Pro-System Lowering for 2022-2026 Ford F-150 Lightning

Vehicle Fitment

• 2022-2026 Ford F-150 Lightning Dual eMotor - Extended Range Battery: Front -0.5" / Rear -2.9"
• 2022-2026 Ford F-150 Lightning Dual eMotor - Standard Range Battery: Front -0.3" / Rear -2.3"

Fitment Notes

• Does not fit vehicles equipped with CCD (electronic dampers / Continuously Controlled Damping) suspension
• Listed drop heights are measured with Eibach springs installed on the bottom clip of Eibach Sport Shocks
• Rear camber solution required after installation to realign within factory tolerance
• Front and rear ride height can be adjusted independently via adjustable spring perch ring slots on damper body
• Fitment not guaranteed for unlisted applications or modified vehicles

Features

• PRO-KIT + PRO-DAMPER combined into one precision-matched PRO-SYSTEM suspension kit

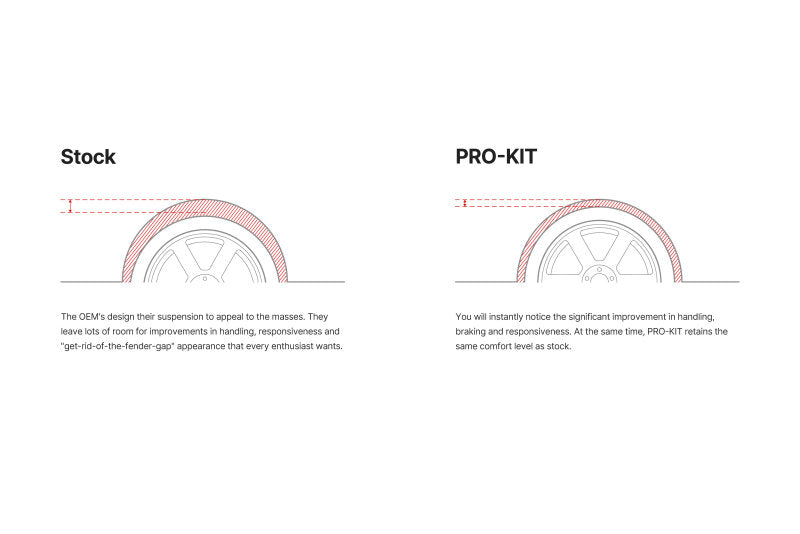

• Progressive spring design lowers center of gravity for improved cornering and steering response
• Monotube high-pressure floating piston design with heavy-duty 46mm piston
• Nitro-coated shock shaft and zinc-coated body for long-term durability and corrosion resistance
• Adjustable spring perch ring slots allow independent front and rear ride height tuning
• Reduces excessive fender gap for a cleaner, more aggressive street stance
• Engineered, tested, and manufactured in the U.S.A.
• Backed by Eibach's Limited Lifetime Warranty

Specifications

• Kit Type: PRO-SYSTEM (PRO-KIT Springs + PRO-TRUCK Sport Shocks)
• Front Drop - Extended Range Battery: -0.5"
• Rear Drop - Extended Range Battery: -2.9"
• Front Drop - Standard Range Battery: -0.3"
• Rear Drop - Standard Range Battery: -2.3"
• Shock Design: Monotube, High-Pressure Floating Piston
• Piston Diameter: 46mm
• Shaft Coating: Nitro-Coated
• Body Coating: Zinc-Coated (Weather Resistant)
• Spring Perch: Ride Height Adjustable Ring Slots
• Warranty: Limited Lifetime against defects in materials and workmanship

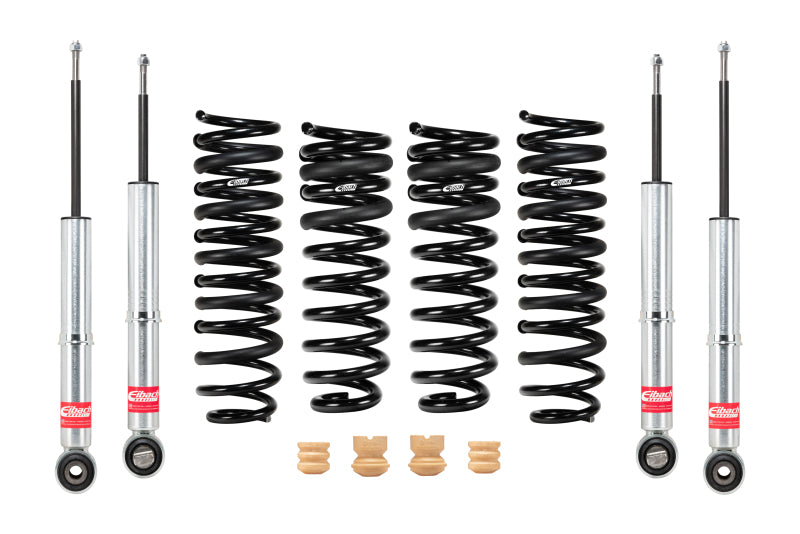

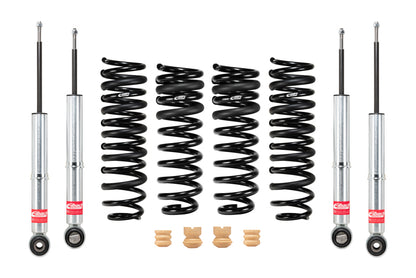

Included Components

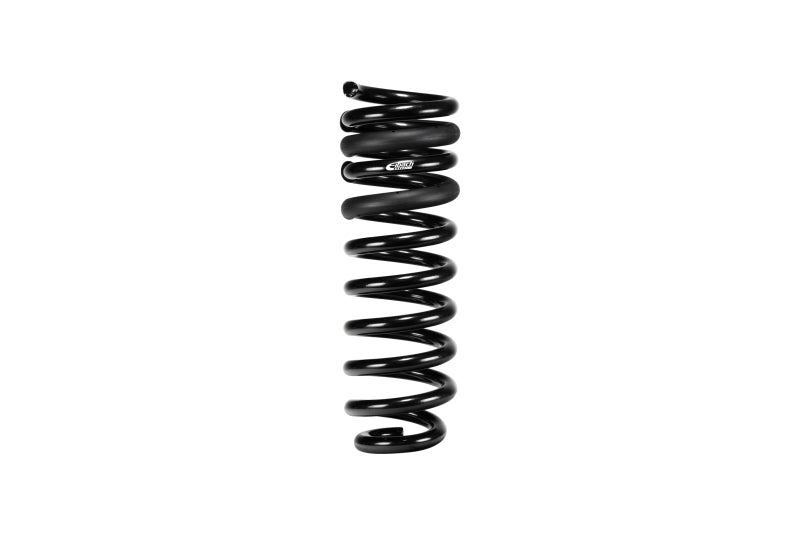

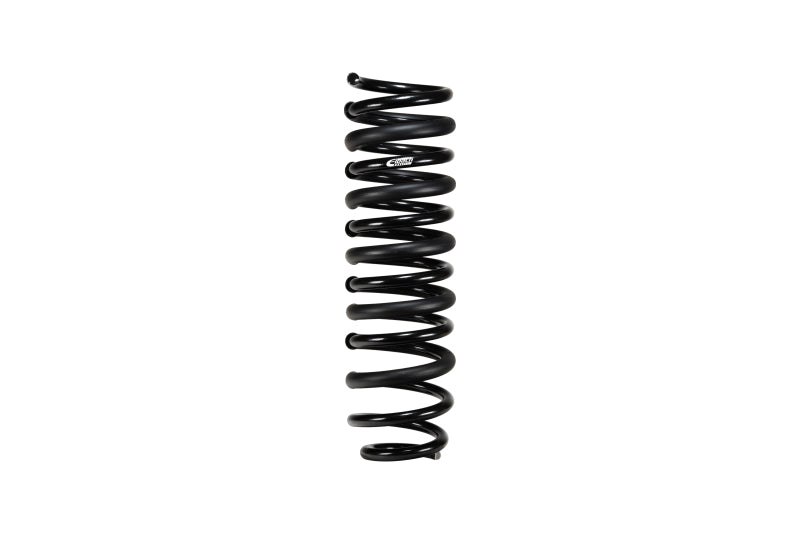

• 4x PRO-KIT Lowering Springs (2 Front, 2 Rear)
• 4x PRO-TRUCK Sport Shock Absorbers (2 Front, 2 Rear)

Product Description

The Eibach PRO-SYSTEM (E70-35-061-01-22) is a complete matched suspension kit for the 2022-2026 Ford F-150 Lightning, combining Eibach's PRO-KIT progressive lowering springs with their PRO-TRUCK Sport Shocks in a single bolt-on package. By lowering the center of gravity, this system sharpens steering response, reduces body roll, and transforms the Lightning's stance - delivering a sportier, more aggressive look without sacrificing ride comfort. Drop heights vary by battery configuration: the Extended Range Battery sees a 0.5" front / 2.9" rear drop, while the Standard Range Battery drops 0.3" front / 2.3" rear, achieving a leveled ride height in both cases.

The PRO-TRUCK Sport Shocks feature a monotube floating piston design with adjustable spring perch ring slots, allowing independent front and rear height fine-tuning after installation. Note that a rear camber alignment solution is required post-install to maintain factory tolerances, and this kit does not fit Lightning models equipped with CCD electronic damper suspension.
