Carli CS-FRSM-1723 Weld-In Rear Shock Mount Pair for 17-24 F250/F350

Vehicle Fitment

• 2017-2024 Ford F250/F350 (4x4)

Fitment Notes

• Requires welding - not a bolt-on installation
• Not designed for use with factory-style shocks or shocks with bushings
• Will not fit Carli Pintop shocks due to the 90° hose fitting on the rear remote reservoirs contacting the mount bracing

Features

• Purpose-built to address the lack of riveted shock mount points on Ford's boxed-frame Super Duty platform
• Massive strength increase over the factory single-shear, pin-style shock mount

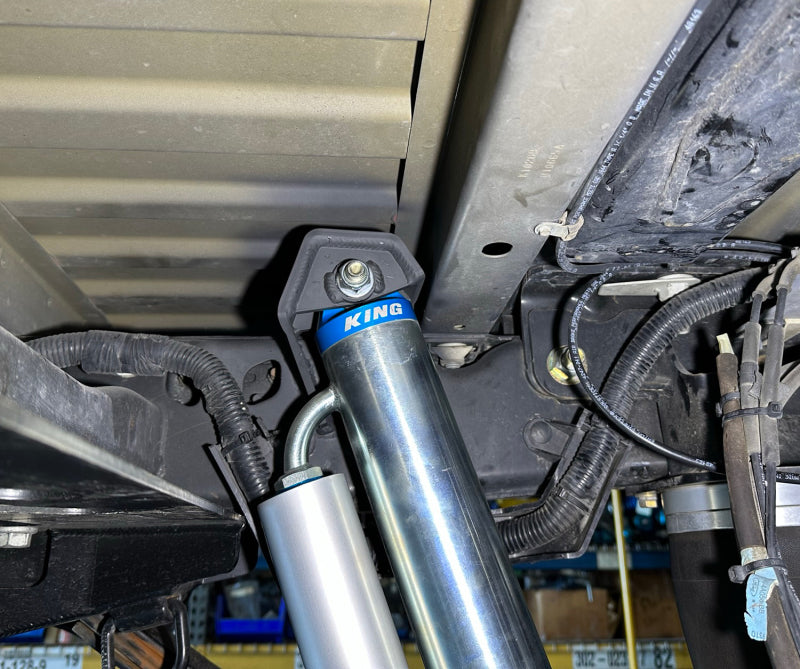

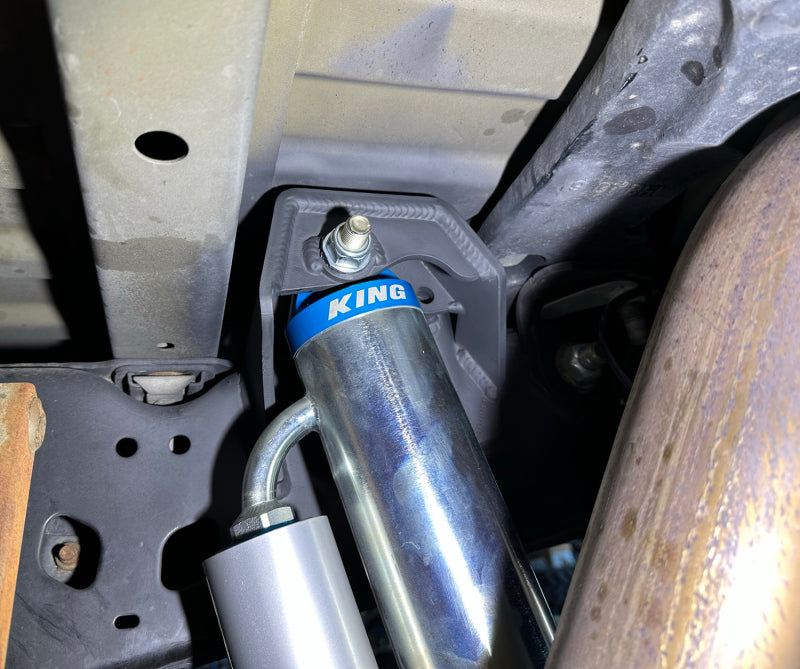

• Accommodates up to a 3.0" King shock in the factory mounting location
• Driver's side mount welds directly to the factory mounting position
• Passenger side mount is positioned slightly forward for hitch and bed cross-member clearance

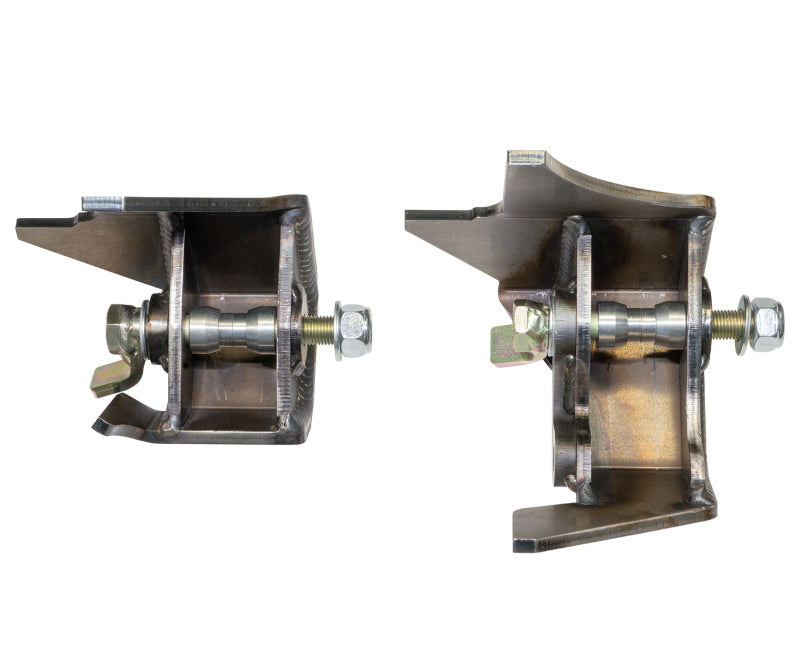

• Includes misalignment spacers to adapt 5/8" internal diameter uni-ball race shocks (King/Fox) to a 14mm x 1.667" mounting dimension
• Includes a flag-bolt for simplified shock installation
• Well-suited as an upgrade for E-Venture shock setups

Specifications

• Installation: Weld-in (cut, grind, punch, clean, weld)
• Maximum shock size supported: 3.0"
• Mounting adaptation: 5/8" internal diameter uni-ball to 14mm x 1.667"
• Position: Rear, driver and passenger side

Included Components

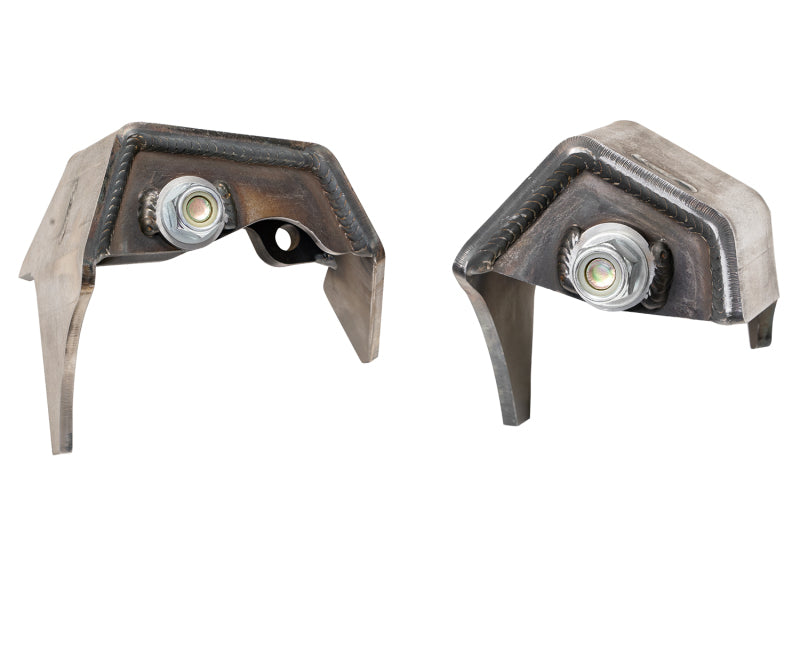

• 2x Weld-In Rear Shock Mounts
• Misalignment Spacers
• Flag-Bolt

Product Description

The Carli CS-FRSM-1723 Weld-In Rear Shock Mount Pair addresses a real limitation on 2017-2024 Ford F250/F350 4x4 trucks: the boxed frame Ford introduced that year improved rigidity but eliminated the riveted shock mount buckets earlier trucks had, making a true bolt-on upgrade impossible. Carli's solution welds in a significantly stronger mount capable of handling shocks up to 3.0" in diameter, directly in the factory location.

Installation involves cutting, grinding, punching, and welding, with both mounts typically completed in under two hours, and the kit includes misalignment spacers to adapt popular off-road race shocks like King or Fox. These mounts are not intended for factory-style or bushing-equipped shocks, and they won't fit the Pintop kit due to its rear hose routing - but for owners running upgraded remote-reservoir shocks like the E-Venture, this is a meaningful strength upgrade over the stock mounting point.
