Haltech HT-059908 TCA-8 Eight Channel Thermocouple Amplifier for Elite ECU

Vehicle Fitment

• Universal -- Elite Series ECU
• Universal -- Platinum Series ECU

Fitment Notes

• Plug 'n' Play with Elite ECU CAN port
• Plug 'n' Play with Elite ECU Harness CAN connector
• Compatible with Elite 4 Port CAN HUB, multi-device install
• Thermocouple probes sold separately
• Not CARB legal, not for sale in California
• Race/off-road use only

Features

• Eight channel design
• Emulates TCA-4 Box A and Box B simultaneously
• Displays as two separate TCA-4 units in ESP or ECU Manager
• DTM-4 to circular connector cable, 1200mm/4ft
• Quick start guide included

Specifications

• Channels: 8 (programmed as 4+4)
• Width: 5.50 in
• Height: 2.90 in
• Depth: 6.60 in
• Connector: DTM-4 to circular
• Cable length: 1200mm / 4ft

Included Components

• 1x Eight Channel Thermocouple Amplifier
• 1x Elite CAN Cable, DTM-4 to Circular Connector, 1200mm/4ft
• 1x Quick Start Guide

Product Description

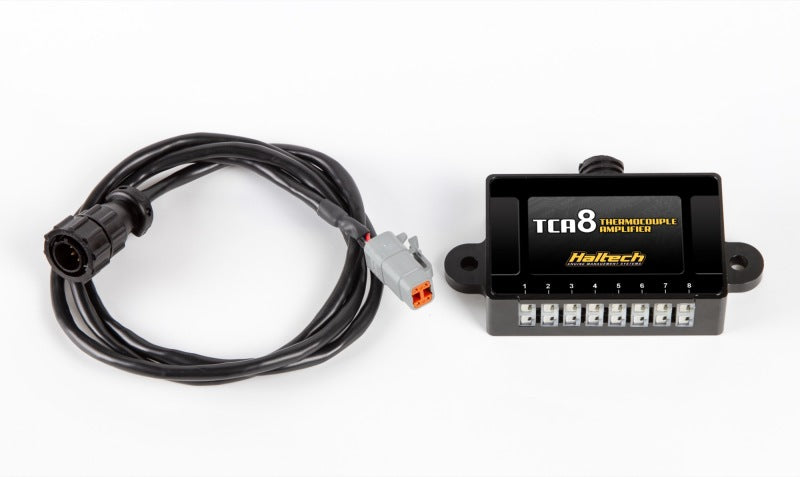

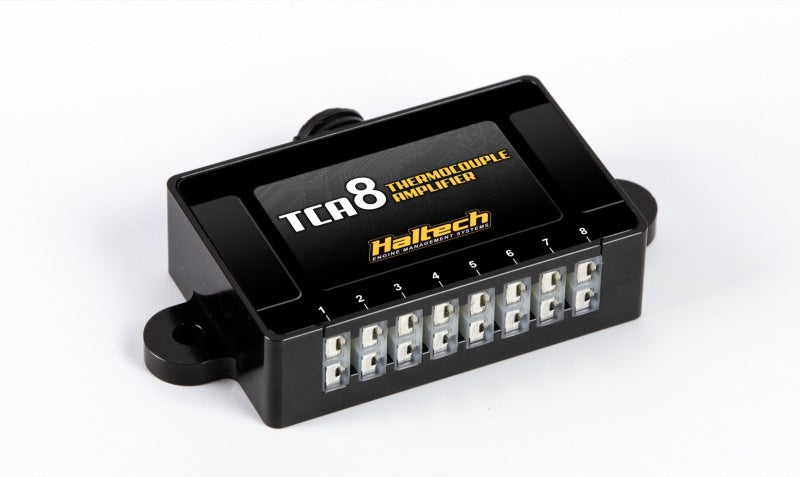

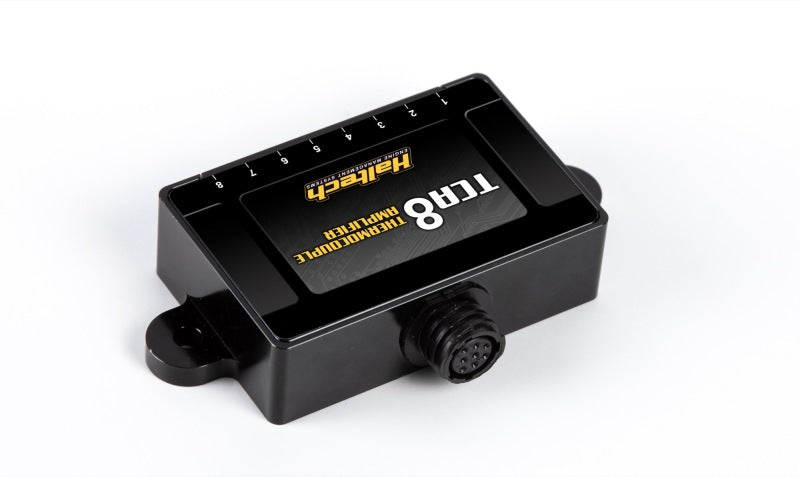

Haltech's TCA-8 Eight Channel Thermocouple Amplifier emulates two separate Haltech TCA-4 boxes (Box A and Box B) in one compact unit. Displays as a TCA-4 Box A and a TCA-4 Box B in ESP online or ECU Manager. Direct Plug 'n' Play compatible with an Elite ECU CAN port, Elite ECU Harness CAN connector, or multi-device install using an Elite 4 Port CAN HUB.

Includes a 1200mm/4ft DTM-4 to circular connector Elite CAN cable and quick start guide. Thermocouple probes sold separately.

Race/off-road use only. Not CARB legal, not for sale in California.
