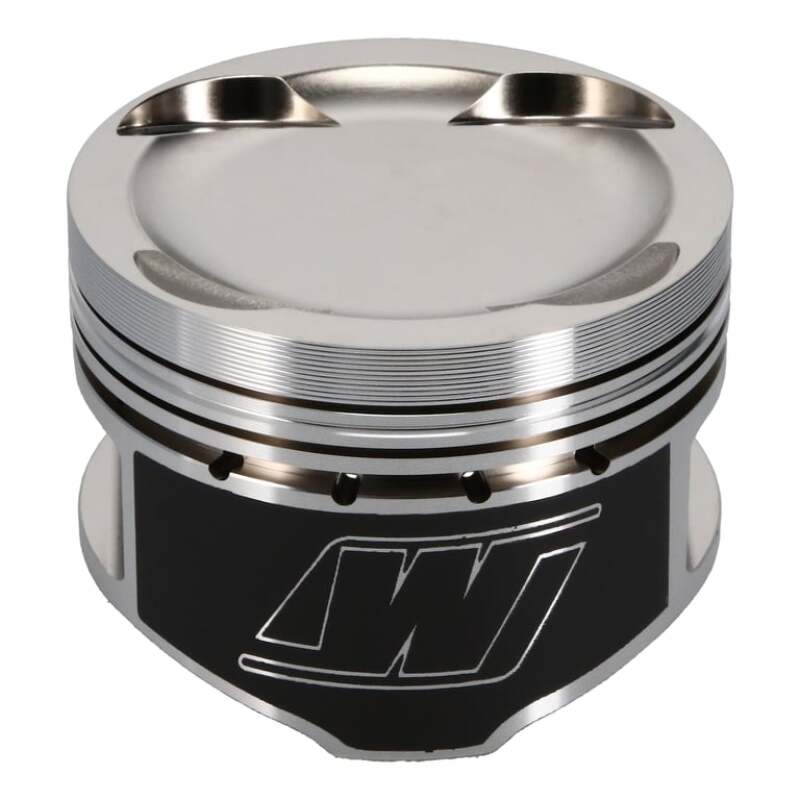

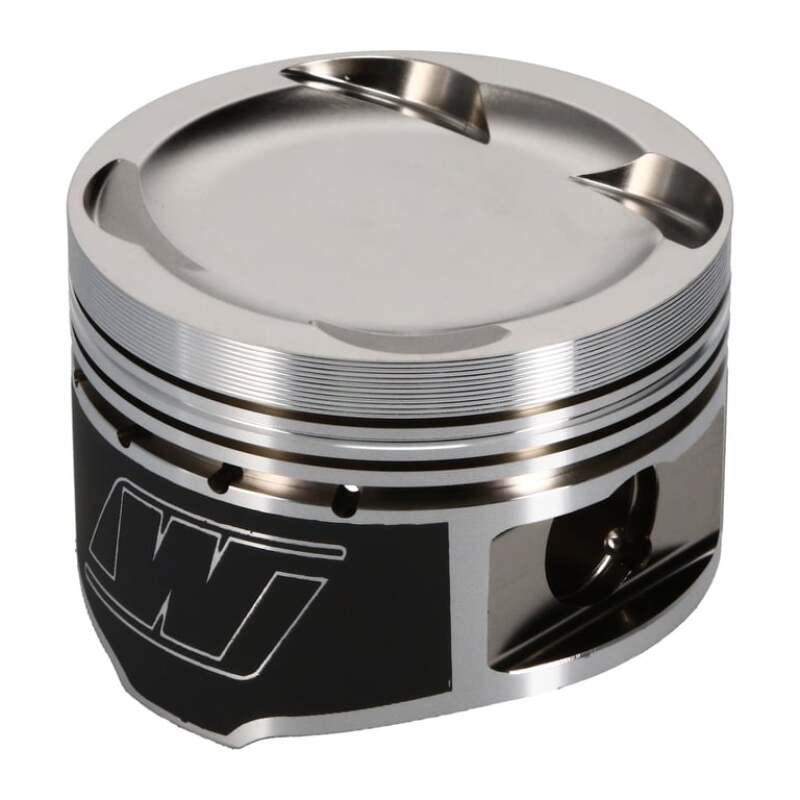

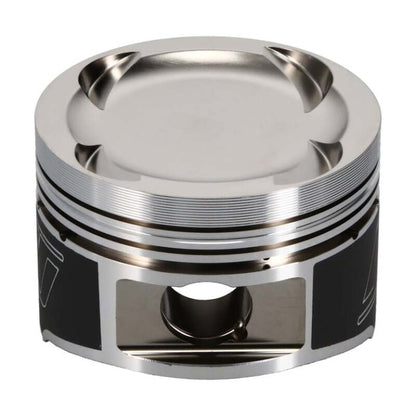

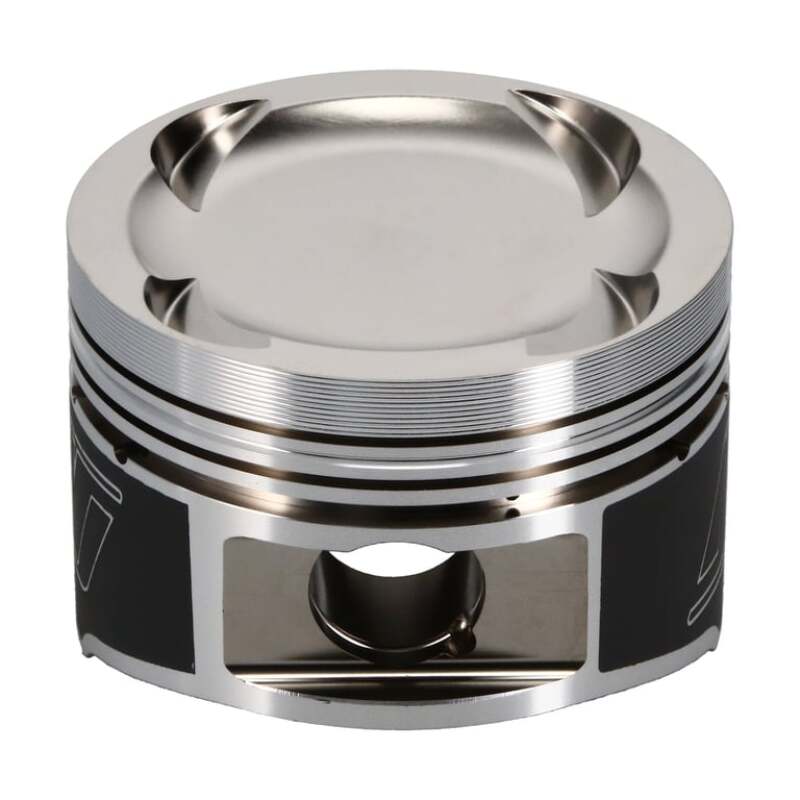

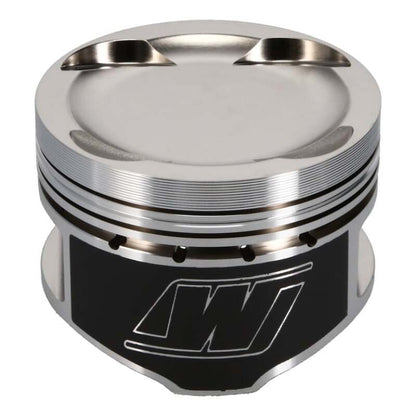

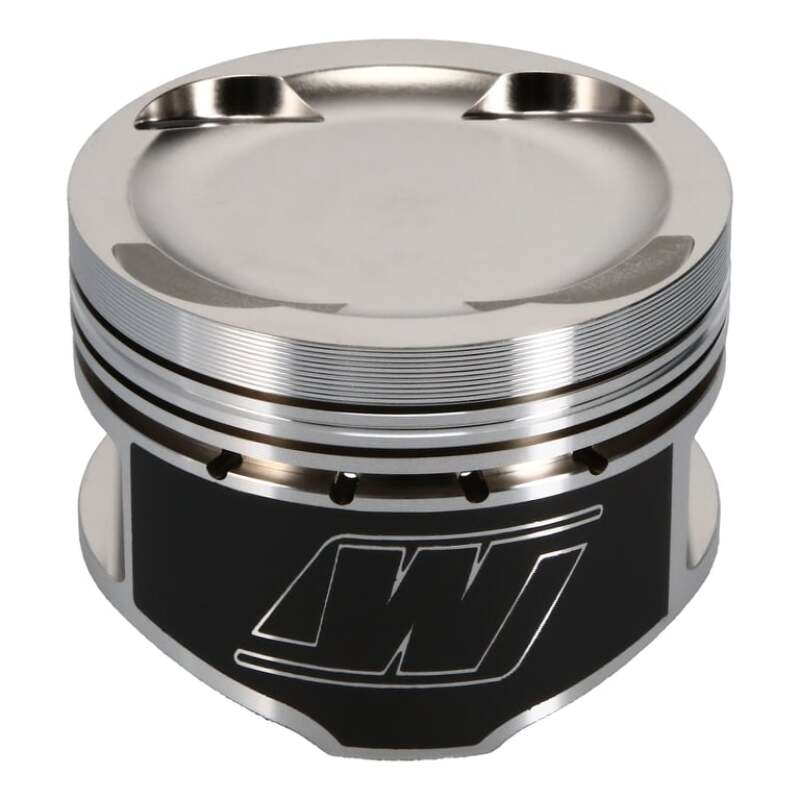

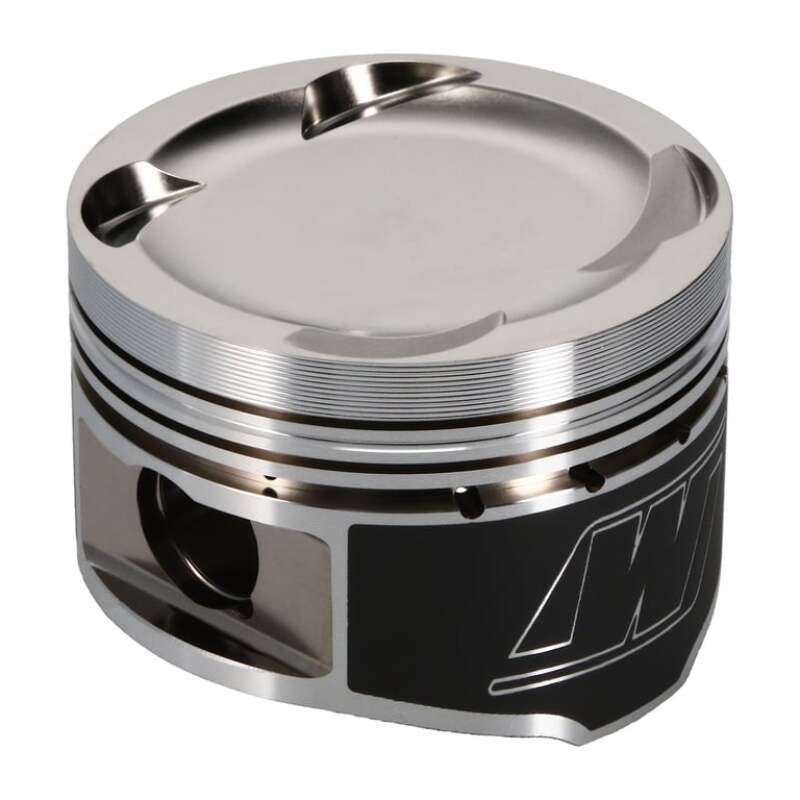

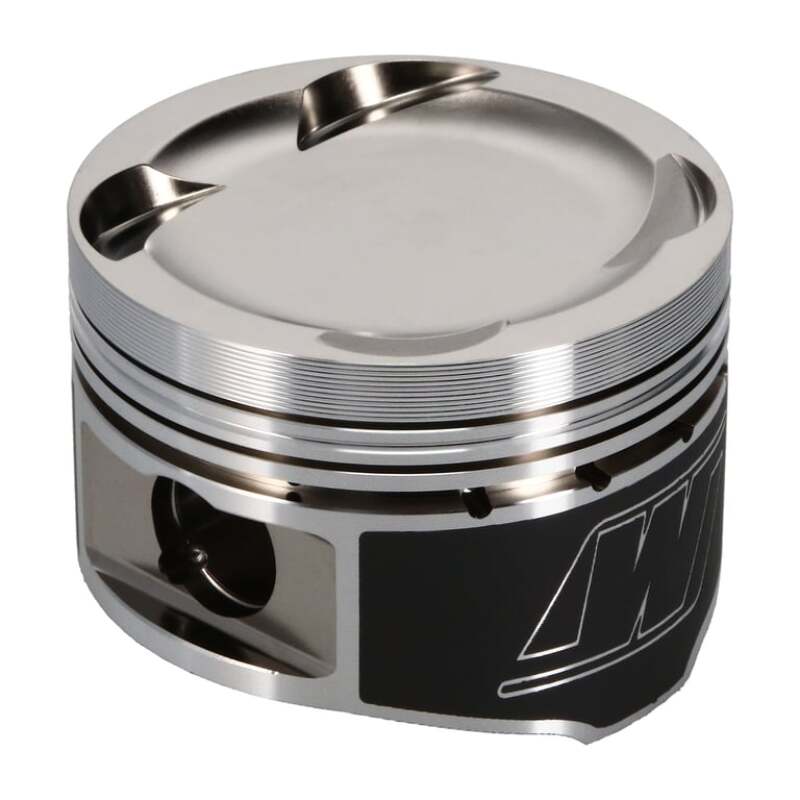

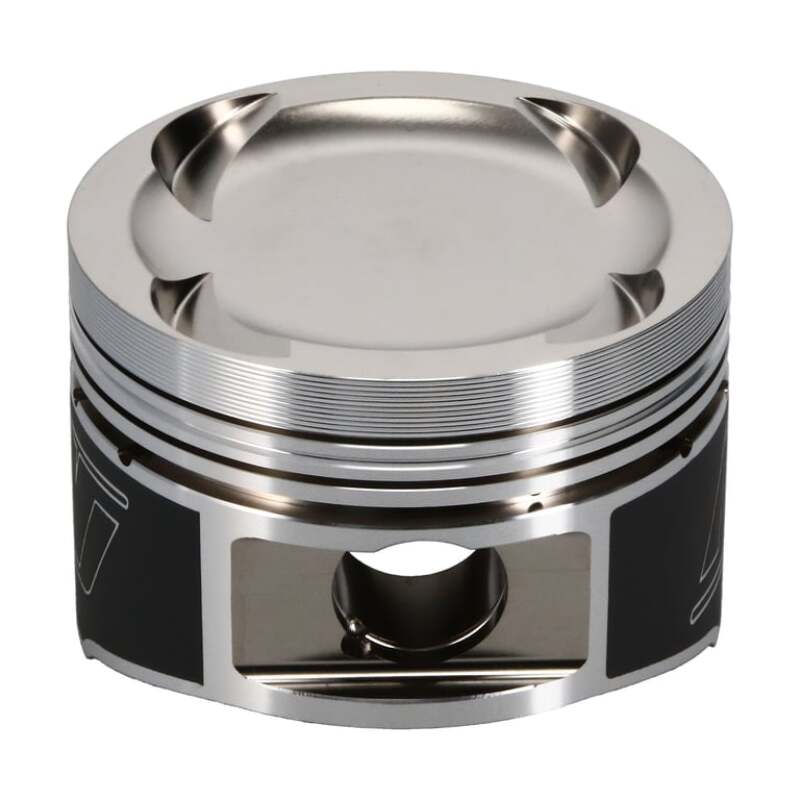

Wiseco K550M87 Forged Piston Kit for Toyota Supra / 2JZ-GTE 87 mm Bore

Vehicle Fitment

• 1993-1998 Toyota Supra (2JZ-GTE, 3.0 L twin-turbo)
• Lexus Soarer / SC300 / GS300 (2JZ-GTE) - check your bore size and year

Features

• Forged from 2618 aluminum for maximum strength and durability
• ArmorGlide® skirt coating minimizes friction and wear

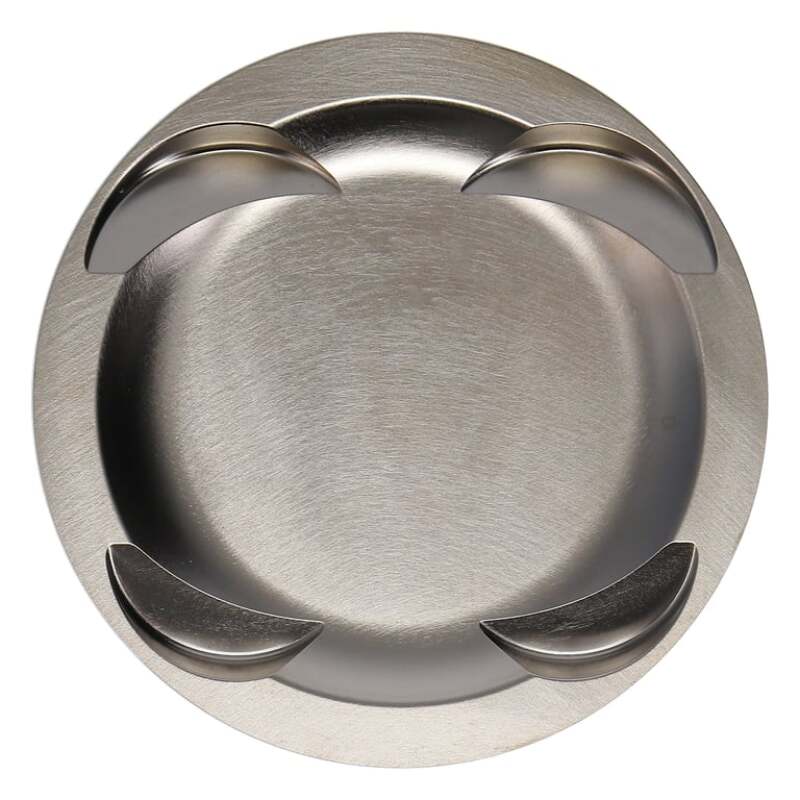

• Flat-top crown for stable combustion performance
• -14.80 cc dish volume for tuned compression
• Precision ring grooves with anti-detonation groove

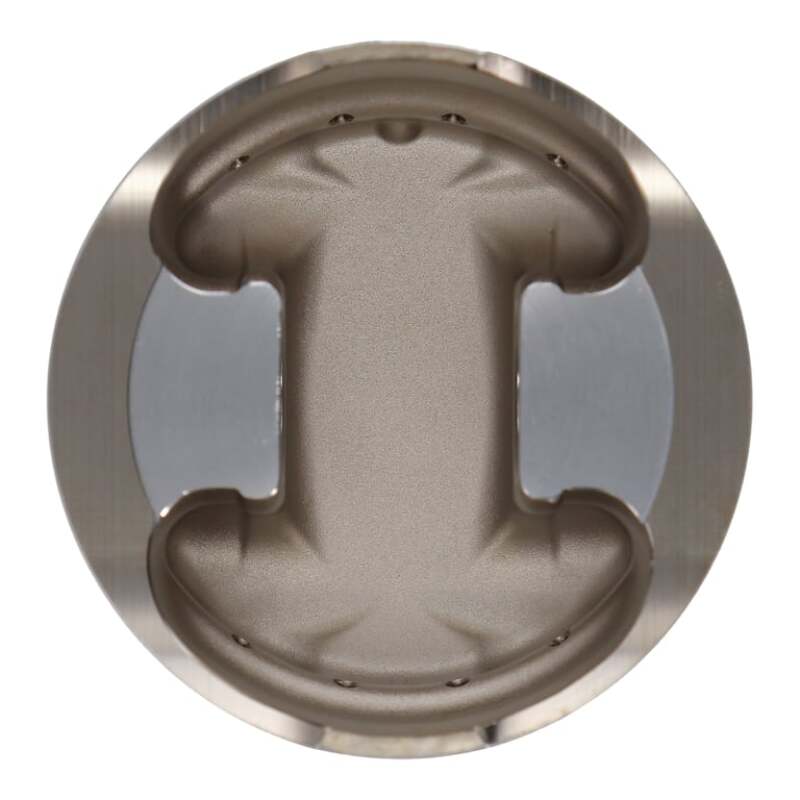

• Forced pin oiling to ensure reliable wrist pin lubrication
• Designed to handle racing, high-RPM, and boost applications
• Comes with a high-performance ring set (8700XX series)

Specifications

• Bore: 87.00 mm
• Compression Height: 33.98 mm
• Piston Dish Volume: -14.80 cc
• Compression Ratio: ~8.5:1
• Wrist Pin Diameter: 22 mm (0.866")
• Piston Material: Forged 2618 aluminum
• Piston Set Quantity: 6 (for inline 6-cyl 2JZ)
• Ring Set: 1.0 mm / 1.2 mm / 2.8 mm (8700XX series)
• Piston Weight (approx): 340 g each

Included Components

• 6x forged pistons
• 6x 22 mm wrist pins
• 6x piston ring sets (8700XX)
• 6x circlips / lock rings

Product Description

The Wiseco K550M87 is a professional-grade forged piston set engineered for Toyota's 2JZ-GTE engine, commonly used in the 1993-1998 Supra. Built from high-strength 2618 aluminum, these pistons are tailored for performance applications where reliability and durability matter - especially under high RPM and boost.

With a -14.80 cc dish volume, the compression ratio is lowered (~8.5:1), making this kit well-suited for turbocharged setups that prioritize detonation resistance. The ArmorGlide® skirt coating reduces friction and operational noise while promoting longevity. Meanwhile, the forced pin oiling system helps ensure consistent lubrication of the wrist pins during heavy use.

This full six-piston kit includes everything you need: wrist pins, circlips, and a top-tier 8700XX ring set. Whether you're building a high-boost street car, a dedicated race engine, or restoring a 2JZ-GTE for serious performance, the Wiseco K550M87 offers race-ready strength and precision.
