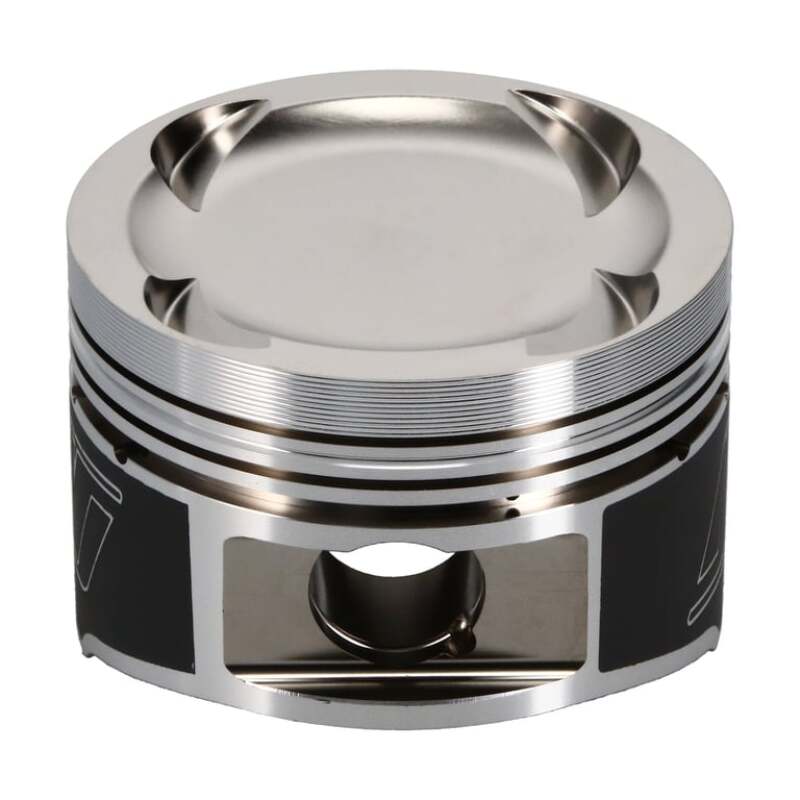

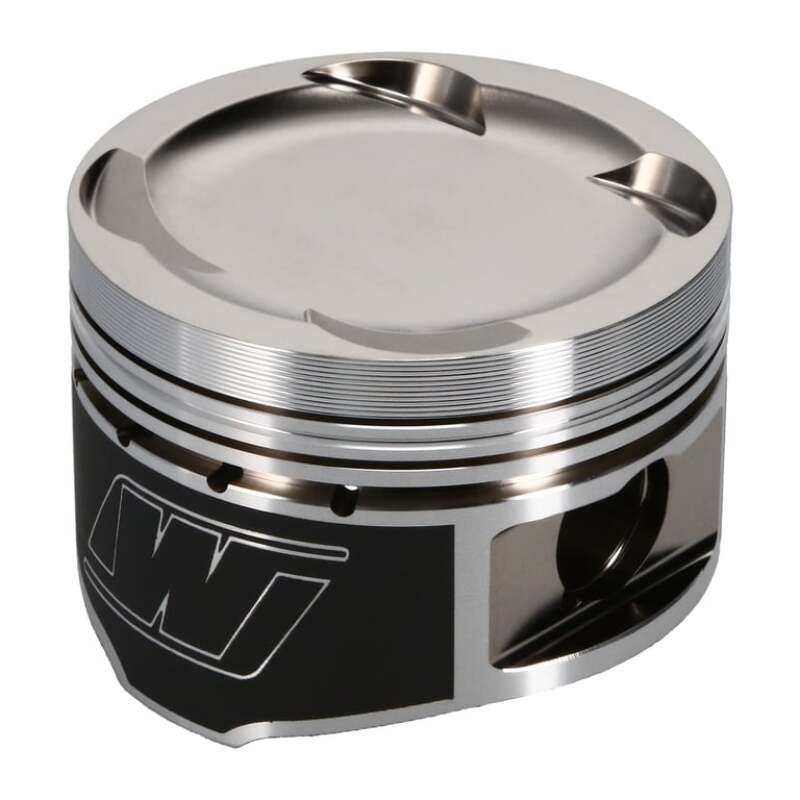

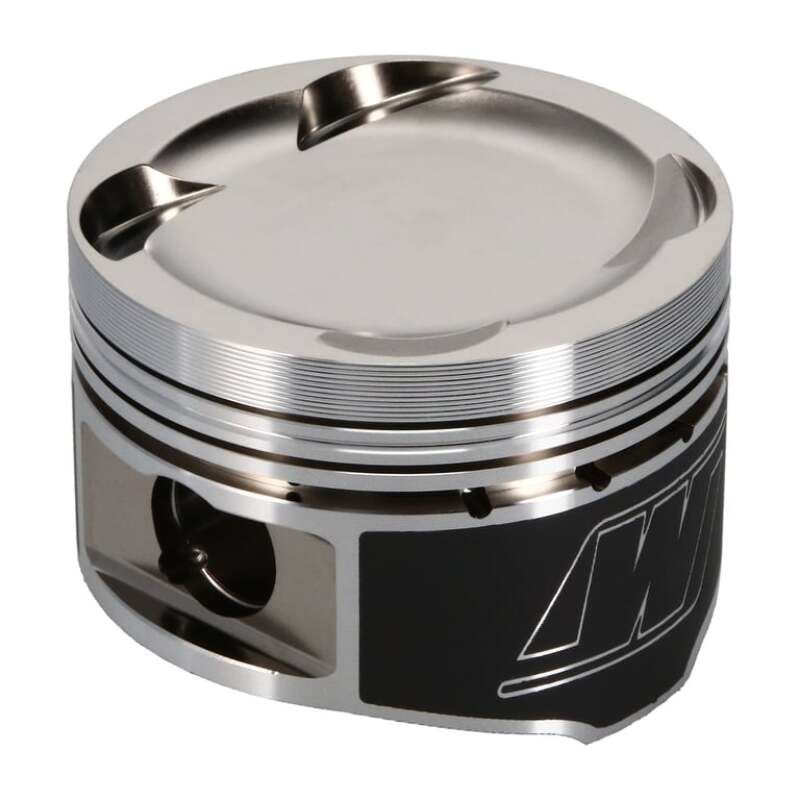

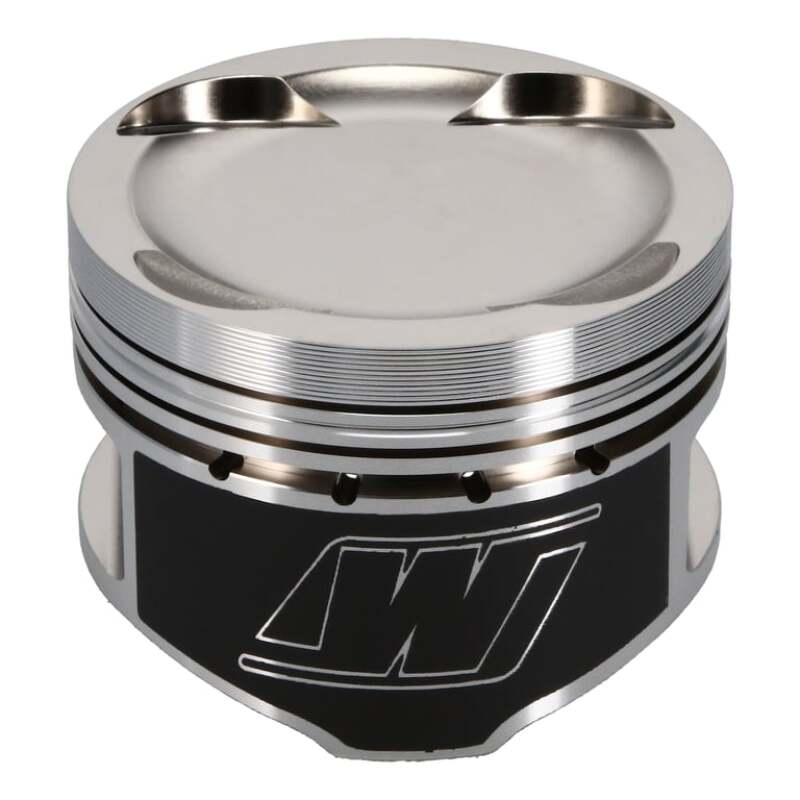

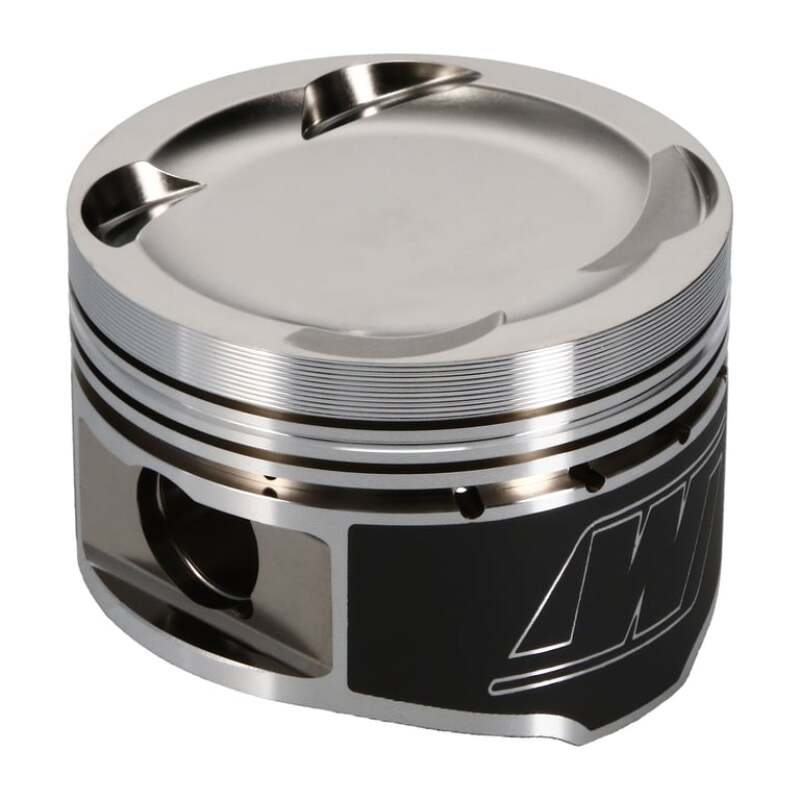

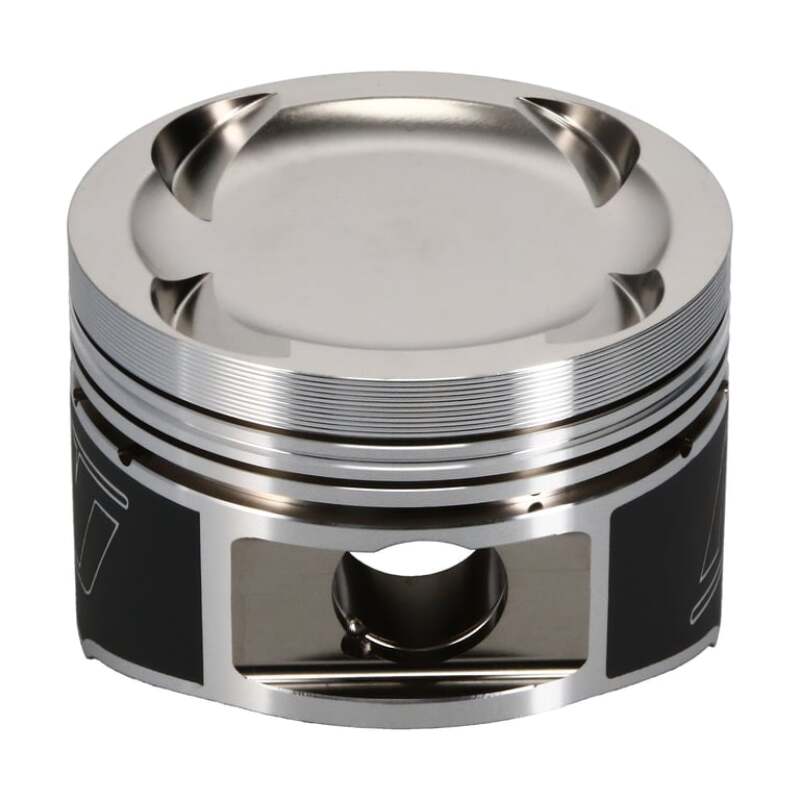

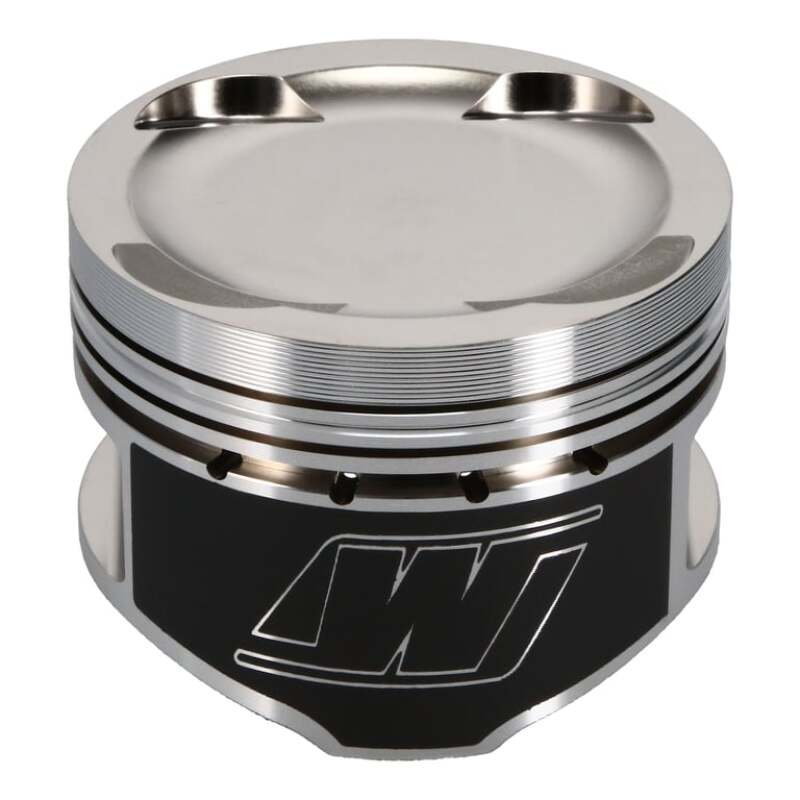

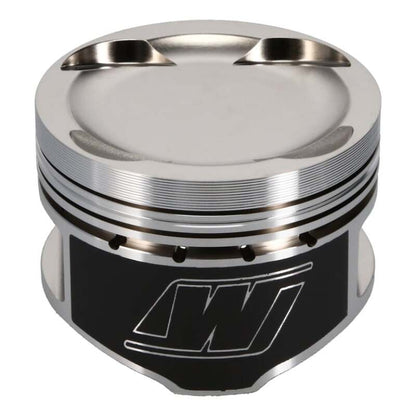

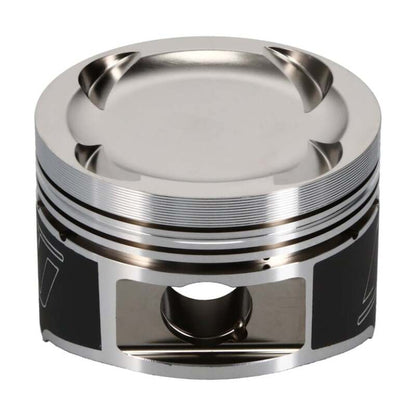

Wiseco K550M865 Forged Piston Kit for Toyota 2JZ-GTE (86.50 mm, 1993-1998)

Vehicle Fitment

• Toyota Supra (2JZ-GTE, 3.0 L twin-turbo, 1993-1998)
• Lexus SC300 / Soarer (2JZ-GTE, similar bore) - check model year

Features

• Forged from high-strength 2618 aluminum for durability
• ArmorGlide® skirt coating to reduce friction and noise

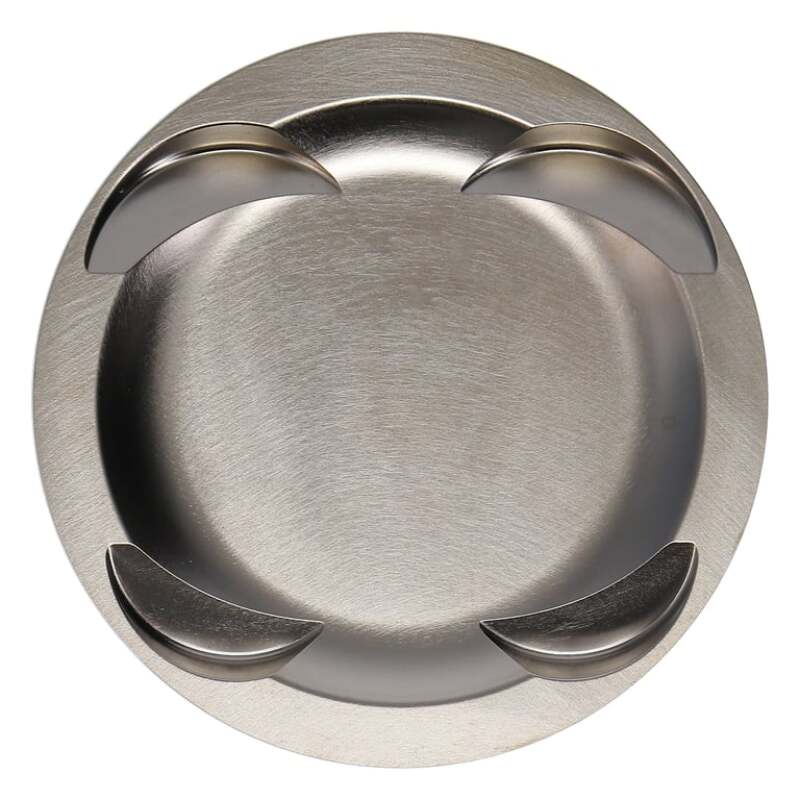

• -14.8 cc dished crown, optimized for forced induction applications
• Full-round strutted forging for structural rigidity
• Precision ring grooves with anti-detonation design
• Forced pin oiling for reliable wrist pin lubrication
• Professional-series build for severe-duty tuning
• High-quality 8650XX ring set included

Specifications

• Bore: 86.50 mm
• Compression Height: 34.00 mm
• Piston Dish Volume: -14.80 cc
• Compression Ratio: ~8.4:1
• Wrist Pin Diameter: 22 mm (0.866 in)
• Piston Material: Forged 2618 aluminum
• Piston Count: 6 (for V-engine)
• Ring Set: 1.0 mm / 1.2 mm / 2.8 mm (8650XX series)
• Piston Weight: ~334 g

Included Components

• 6x forged pistons
• 6x 22 mm wrist pins
• 6x 8650XX piston ring sets
• 6x circlips / locking rings

Product Description

The Wiseco K550M865 is a high-performance, forged piston set designed specifically for the Toyota 2JZ-GTE 3.0 L twin-turbo engine. Built from 2618-grade aluminum, these pistons are engineered to endure high RPM and severe-duty tuning, making them ideal for racing or high-boost applications.

Its -14.8 cc dished crown tunes the compression ratio to around 8.4:1, which helps improve reliability and detonation resistance under aggressive or forced-induction operation. The ArmorGlide® coated skirts reduce friction and noise, while the engineered structure and forced pin oiling ensure durability under extreme conditions.

This comprehensive kit includes six pistons, 22 mm wrist pins, circlips, and premium 8650XX ring sets. Whether you're doing a full engine build or a high-power upgrade, the K550M865 delivers race-grade strength, precision, and reliability for serious 2JZ-GTE performance builds.
