CP Pistons SC7314-6 Forged Piston & Ring Set for 1993-1998 Nissan 240SX KA24DE

Vehicle Fitment

• 1993-1998 Nissan 240SX (KA24DE, 2.4L I4)

Fitment Notes

• Compatible only with KA24DE engines; not for KA24E or SR20DE/DET engines.
• Not compatible with S13 or S15 chassis unless specified by the manufacturer.

Features

• Forged 2618 aluminum pistons for high-strength performance under boost.
• CNC-machined for precise balance and optimal engine efficiency.
• Accumulator grooves reduce piston slap and retain oil effectively.
• Dual forced pin oilers enhance lubrication at high RPM.
• Pick lock grooves ensure secure wrist pin installation.
• High-performance wrist pins included for durability and reliability.
• Optimized for turbocharged or high-performance naturally aspirated engines.
• Improved heat dissipation extends engine life under demanding conditions.

Specifications

• Bore Size: 90.0mm
• Compression Ratio: 9.5:1
• Compression Height: 30.5mm
• Rod Length: 137.5mm
• Wrist Pin Diameter: 20mm
• Piston Weight: 335g
• Stroke: 86.5mm
• Position: Front/Rear (all cylinders)

Included Components

• 6x Forged pistons
• 6x Piston rings
• 6x Wrist pins

Product Description

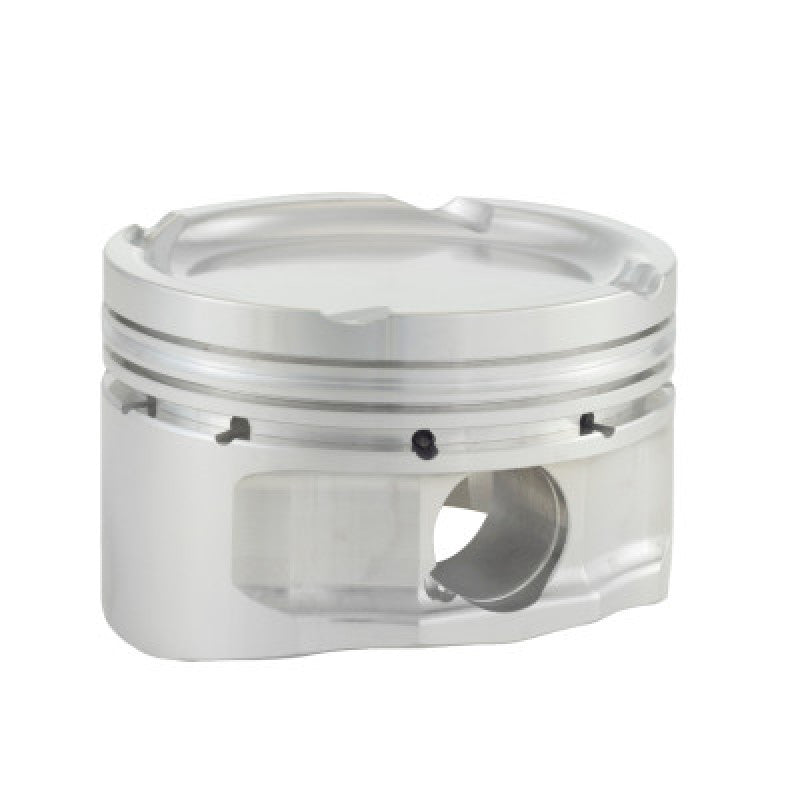

The CP Pistons SC7314-6 kit delivers a high-performance piston upgrade for Nissan 240SX KA24DE engines. Engineered from forged 2618 aluminum, these pistons provide exceptional strength and durability under high RPM and boost conditions.

CNC-machining ensures precise tolerances for optimal engine efficiency. Accumulator grooves and dual forced pin oilers improve lubrication and reduce wear, while pick lock grooves and included wrist pins facilitate secure installation and long-term reliability.

This kit fits 1993-1998 Nissan 240SX equipped with the KA24DE engine only. It is ideal for performance builds and racing applications, offering improved power handling, durability, and engine longevity.
