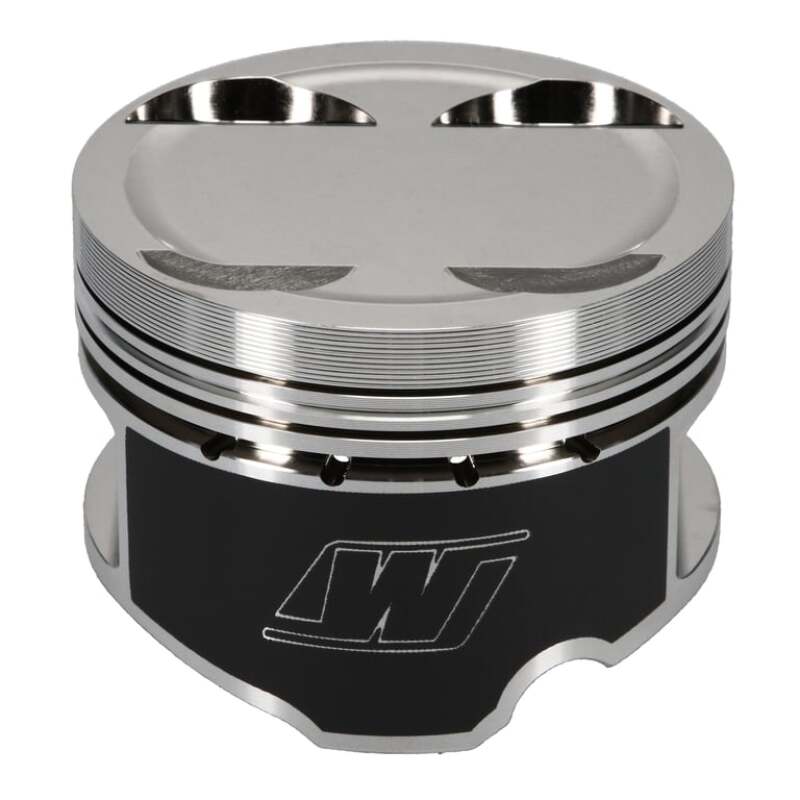

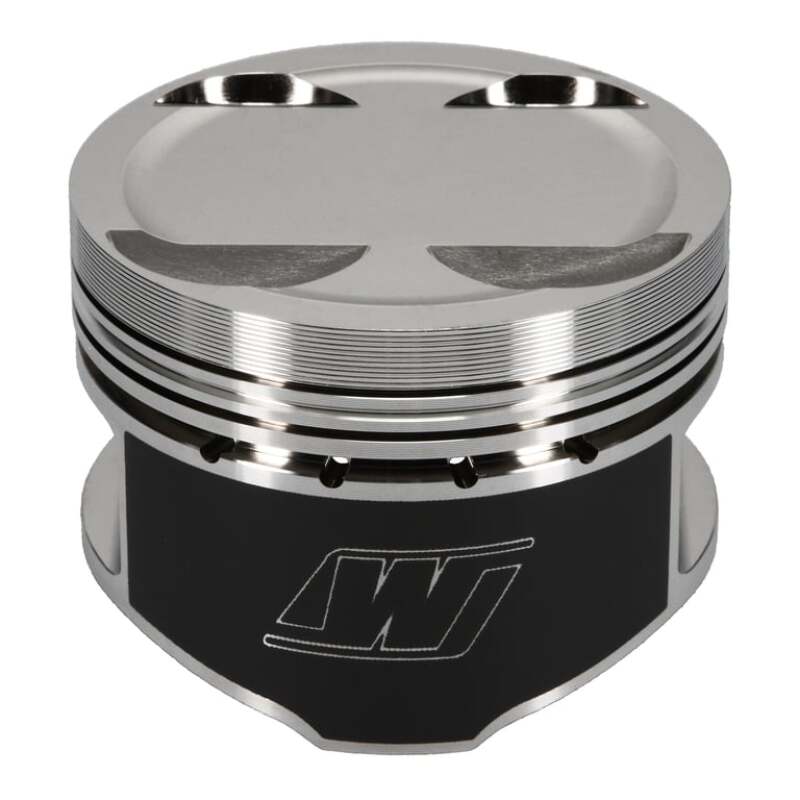

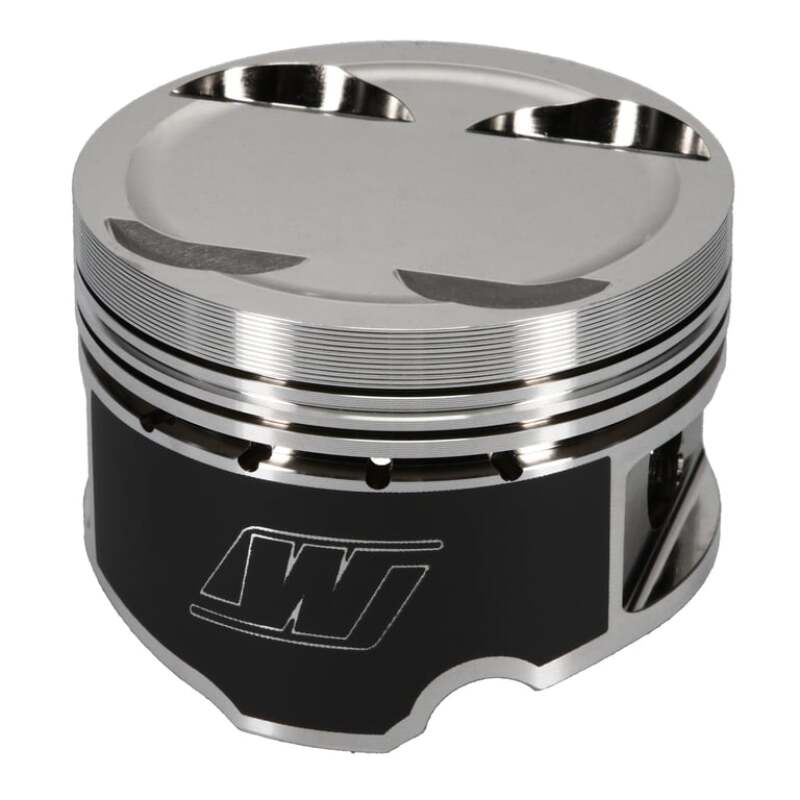

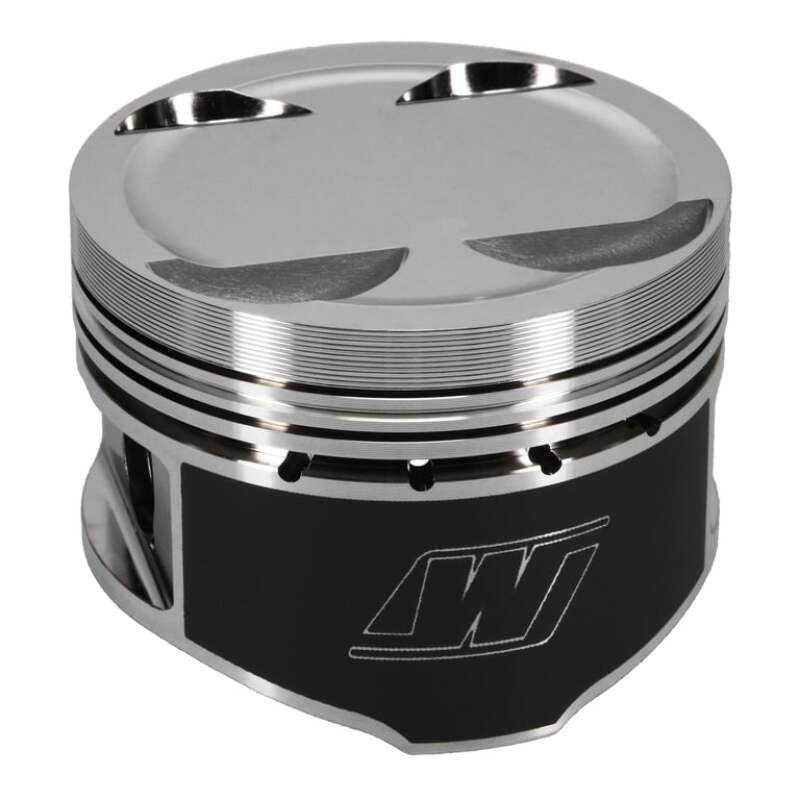

Wiseco K615M87AP Forged 87.00 mm Pistons for Toyota 3S-GTE (Celica/MR2)

Vehicle Fitment

• Toyota Celica (3S-GTE, 2.0 L, 16V, years approx. 1989-1995)
• Toyota MR2 Turbo (3S-GTE, 2.0 L, 16V, years approx. 1989-1995)

Features

• Forged from high-strength 2618 aluminum alloy for durability
• ArmorGlide® skirt coating reduces friction and resists seizure
• Dished piston design with -6 cc volume to suit turbo applications
• Strutted forging for improved load strength

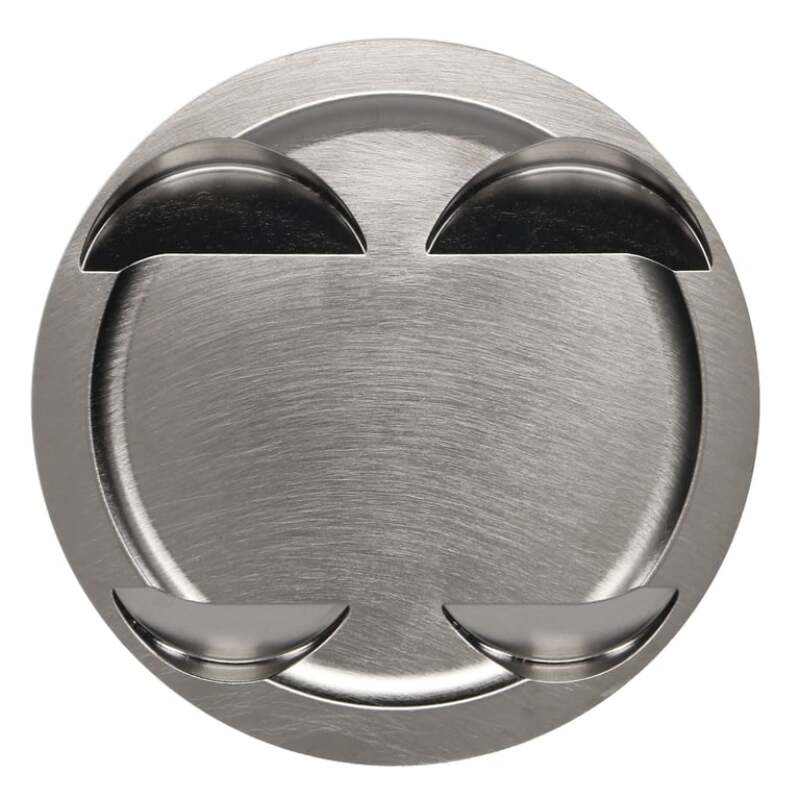

• Fully machined crown and valve reliefs for high performance
• Forced-pin oiling for reliable lubrication of wrist pins
• Pre-gapped high-quality ring set included (8700XX)
• Designed for racing or severe duty performance builds

Specifications

• Bore Diameter: ~87.00 mm
• Stroke: ~86 mm
• Compression Height: ~35 mm
• Piston Volume (Dish): -6.0 cc
• Compression Ratio: ~9.04 :1
• Wrist Pin Diameter: 22 mm
• Piston Material: Forged 2618 aluminum
• Piston Weight: ~374 g
• Ring Set: 8700XX (included)

Included Components

• 4x Forged Pistons
• 4x Wrist Pins (22 mm)
• 1x Ring Set (8700XX)
• Piston Locks / Circlips

Product Description

The Wiseco K615M87AP is a professional-series forged piston kit tailored for the Toyota 3S-GTE 2.0L 16V turbo engine, commonly found in Celica and MR2 models. With a bore of approximately 87 mm and a -6 cc dish, these pistons are optimized for turbocharged performance while maintaining robust strength via 2618 aluminum forging.

The ArmorGlide® coating on the skirts lowers friction and helps prevent scuffing, even under intense conditions. Strutted forging adds rigidity to handle high boost loads, while the forced-pin oiling system ensures the wrist pins remain well-lubricated, critical in high-RPM or high-stress applications. The set comes with a pre-gapped 8700XX ring pack, simplifying installation and ensuring strong sealing.

These pistons are ideal for performance builds, whether you're rebuilding a high-boost 3S-GTE for racing or tuning it for street use. They offer a durable, race-ready foundation for your engine project.
