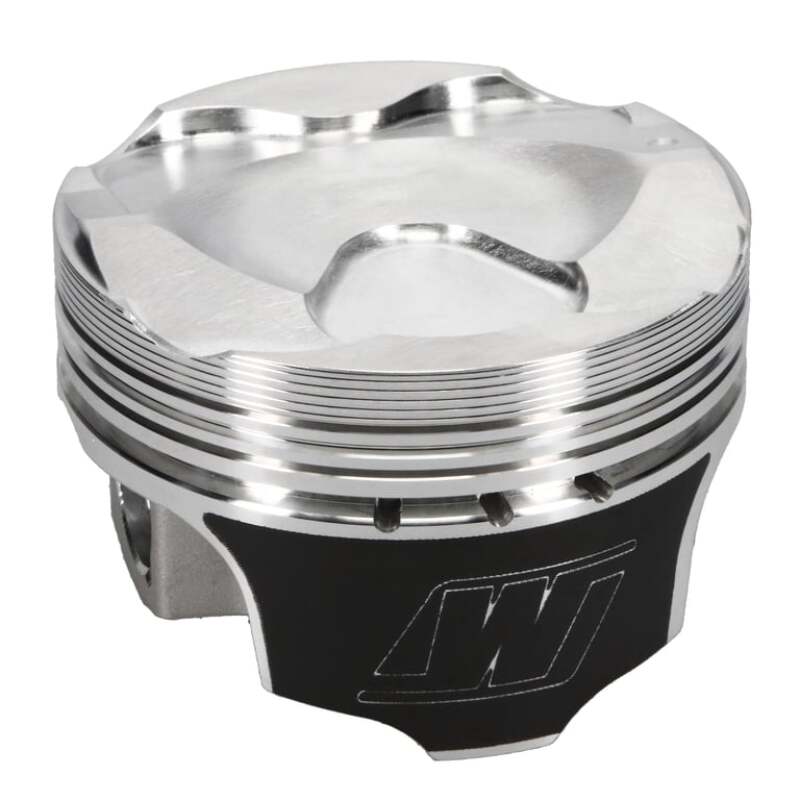

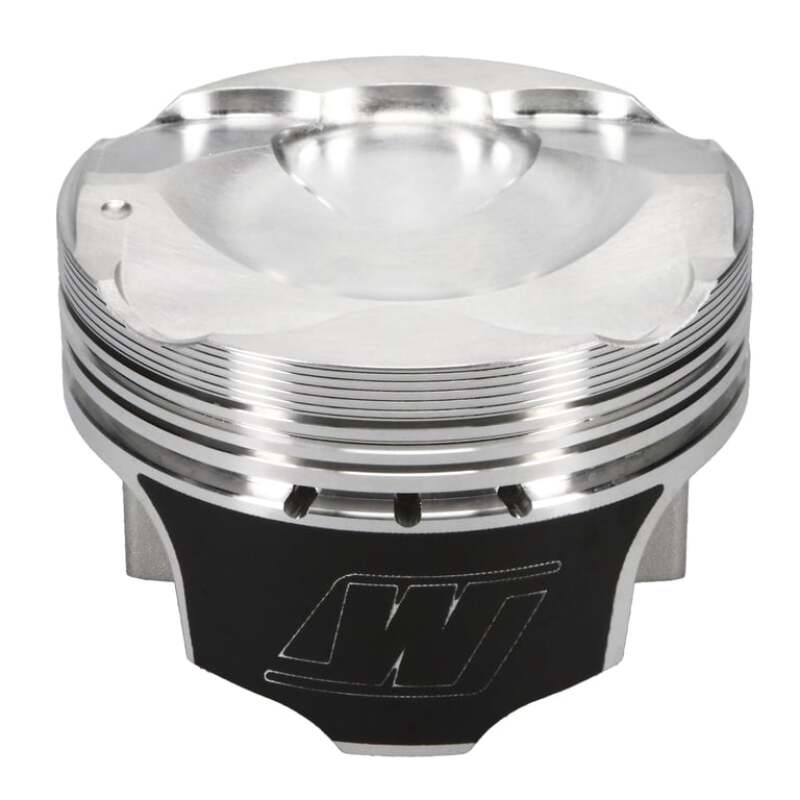

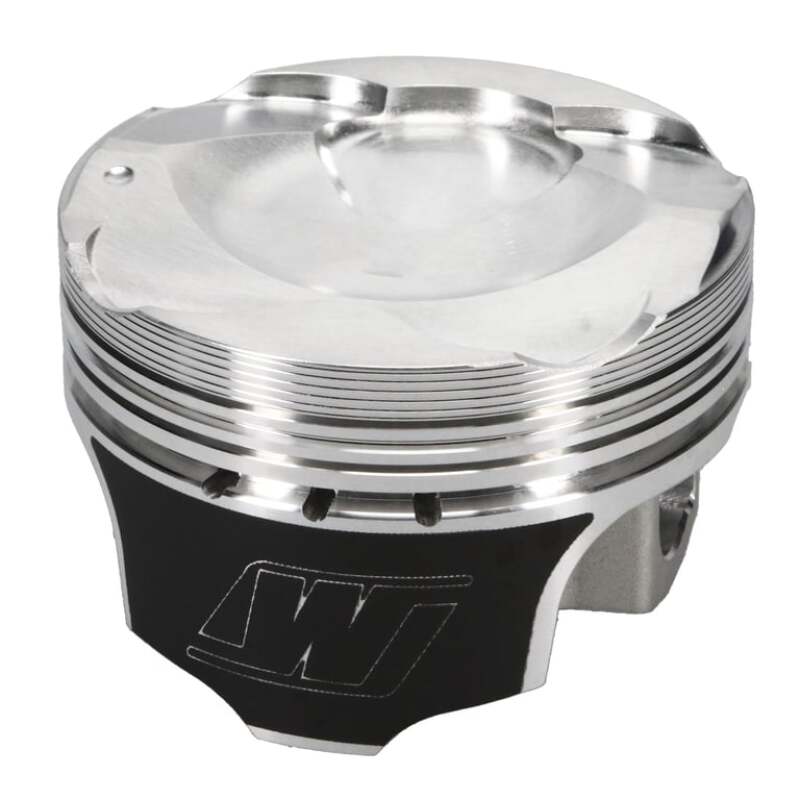

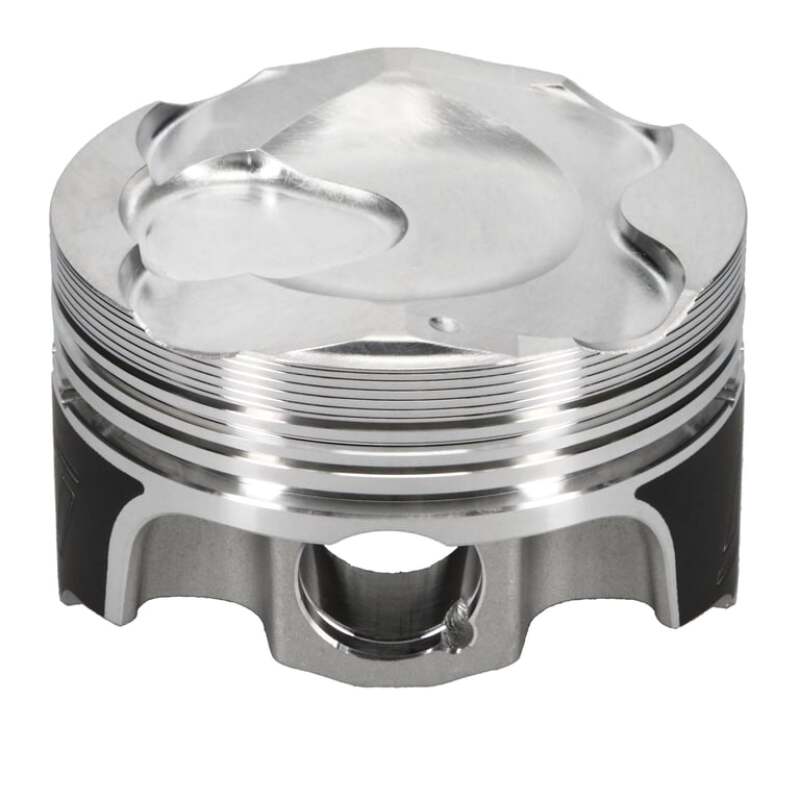

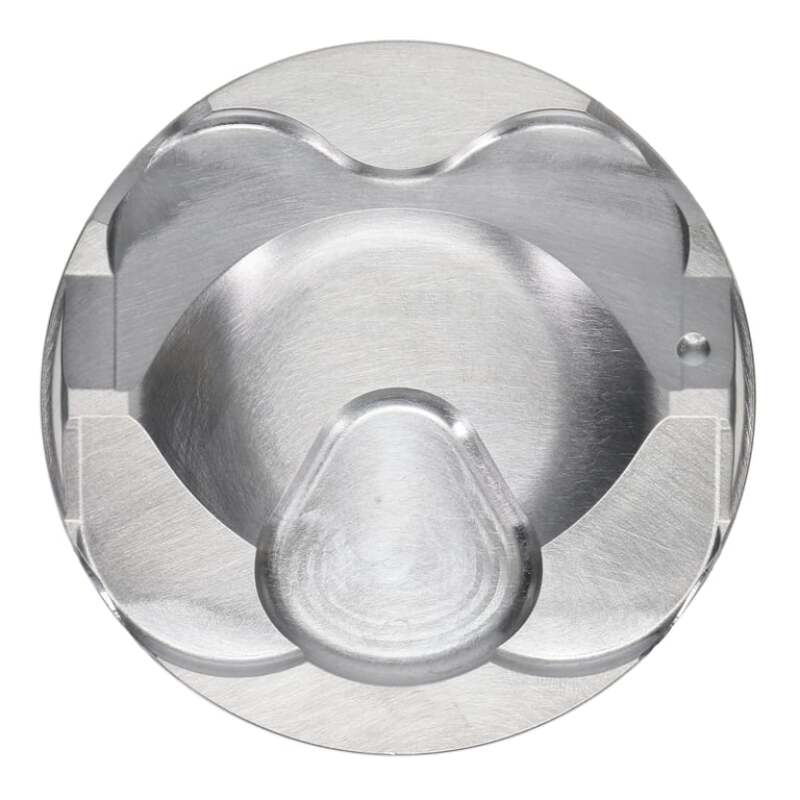

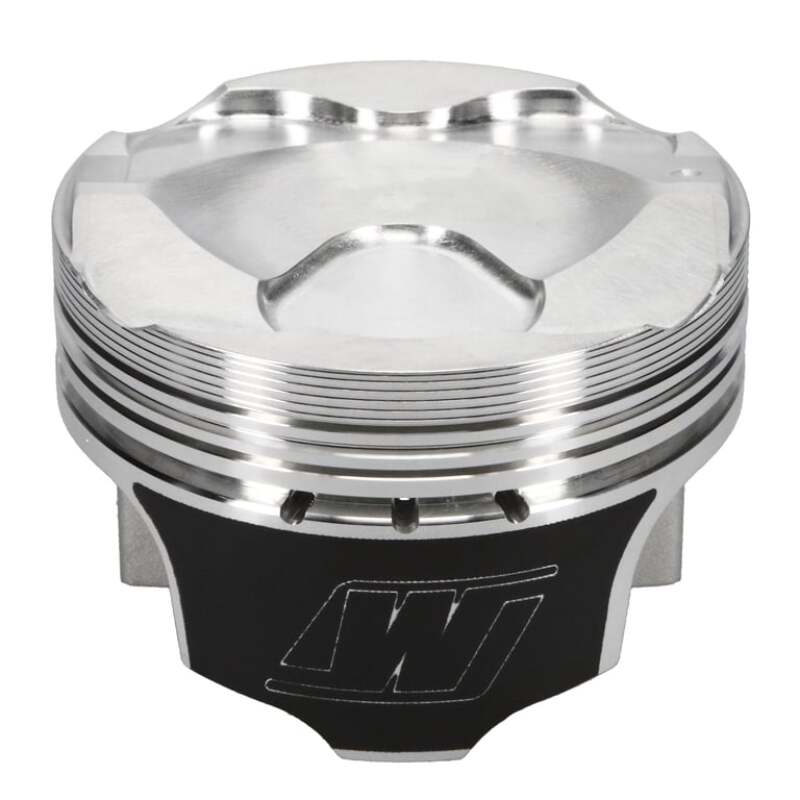

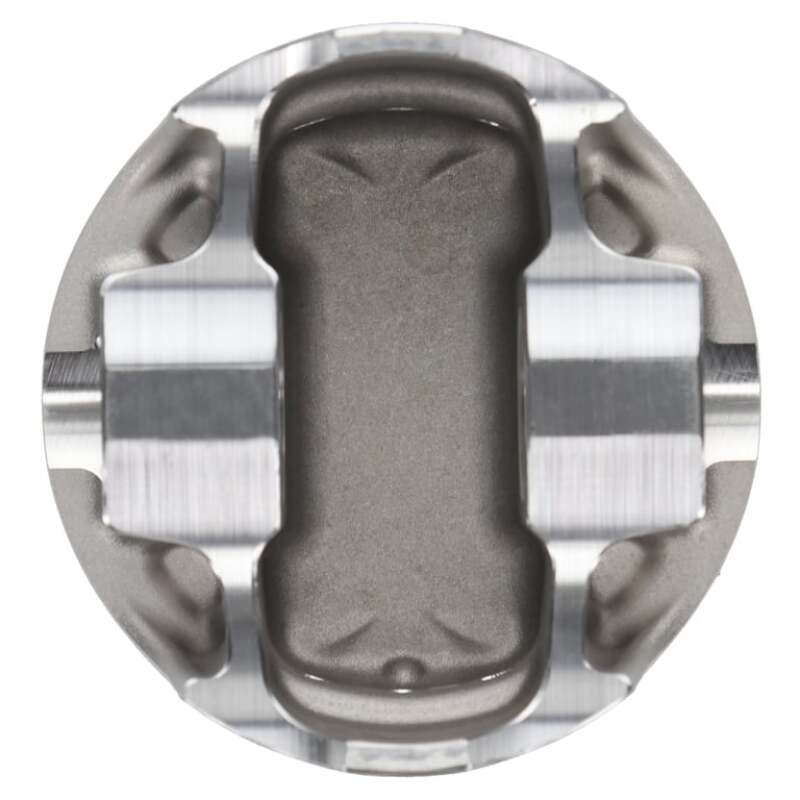

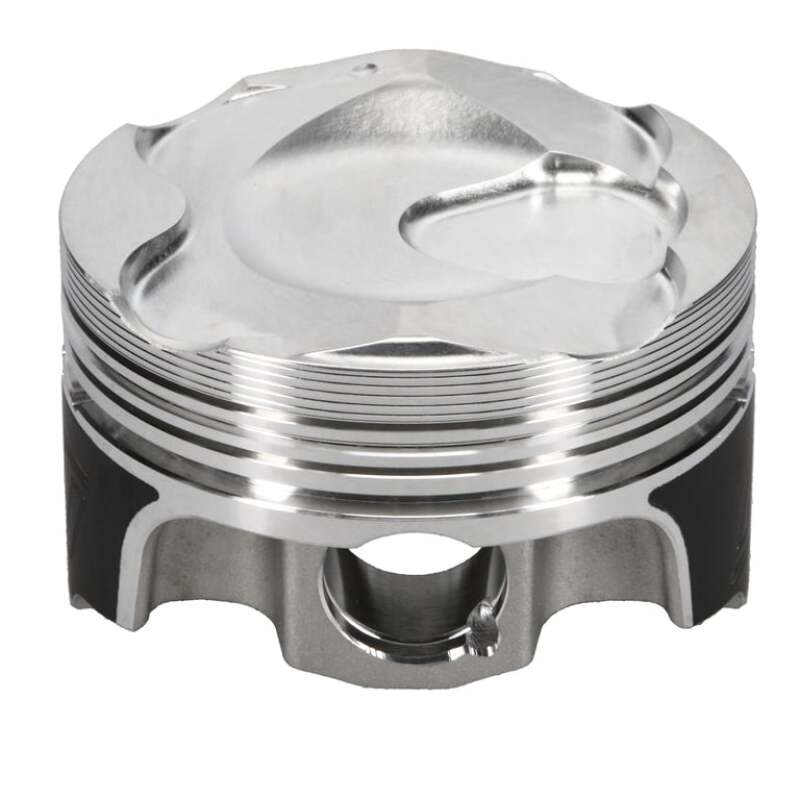

Wiseco K727M86 Forged Pistons for 2013-2021 Subaru BRZ / Toyota 86 / FR-S

Vehicle Fitment

• 2013-2021 Subaru BRZ (2.0 L FA20)
• 2013-2021 Toyota 86 / Scion FR-S (2.0 L FA20)

Features

• Forged from 2618 high-strength aluminum for durability
• ArmorGlide® coated skirts to minimize friction and reduce wear
• Strutted forging for additional reinforcement in stress zones
• -9.5 cc dish profile for a lower, more manageable compression ratio
• Fully machined crown with precision for optimal valve clearance
• Anti-detonation groove designed to improve ring seal under load
• Forced-pin oiling to maintain lubrication at high RPM
• Floating 0.866 in (22 mm) wrist pins included

Specifications

• Bore: 86.00 mm
• Compression Height: 32.66 mm
• Piston Volume (Dish): -9.50 cc
• Compression Ratio: ~10.5:1
• Wrist Pin Diameter: 22 mm (0.866 in)
• Piston Material: Forged 2618 aluminum
• Number of Pistons: 4 (for 4-cylinder FA20)

Included Components

• 4x forged pistons
• 4x floating wrist pins (22 mm)
• 8x circlips / locks for wrist pins
• Piston ring set
• Technical specification sheet

Product Description

The Wiseco **K727M86** piston set is a high-performance upgrade specifically designed for the 2.0 L FA20 engine found in the Subaru BRZ and Toyota 86 / Scion FR-S (2013-2021). With a forged 2618 aluminum construction, these pistons are built for strength, durability, and reliable operation under aggressive driving conditions.

Featuring an 86 mm bore and a -9.5 cc dish design, these pistons produce a moderate compression ratio (~10.5:1), which is well-suited to naturally aspirated or lightly tuned turbocharged FA20 builds. The ArmorGlide® coated skirts reduce friction and improve longevity, while the strutted forging adds robustness where it matters most.

Each kit comes with four pistons, wrist pins, circlips, and a high-performance ring set - everything needed for a full rotating assembly build. Ideal for engine builders and tuners aiming for a balance of performance, reliability, and precision in a sport compact platform.
