Wiseco K597M855 Forged Dish Pistons 85.5mm for 93-99 Eclipse/Talon 4G63 7-Bolt

Vehicle Fitment

• 1993-1999 Mitsubishi Eclipse, 4G63 2.0L Turbo (7-Bolt)
• 1993-1998 Eagle Talon, 4G63 2.0L Turbo (7-Bolt)
• 1995-1999 Plymouth Laser, 4G63 2.0L Turbo (7-Bolt)

Fitment Notes

• For 7-bolt crankshaft configuration only; does not fit 6-bolt blocks
• Generation 2 DSM 4G63 block

Features

• Forged 2618 aluminum construction
• ArmorGlide skirt coating
• Precision machined ring grooves
• Plasma moly ring package included

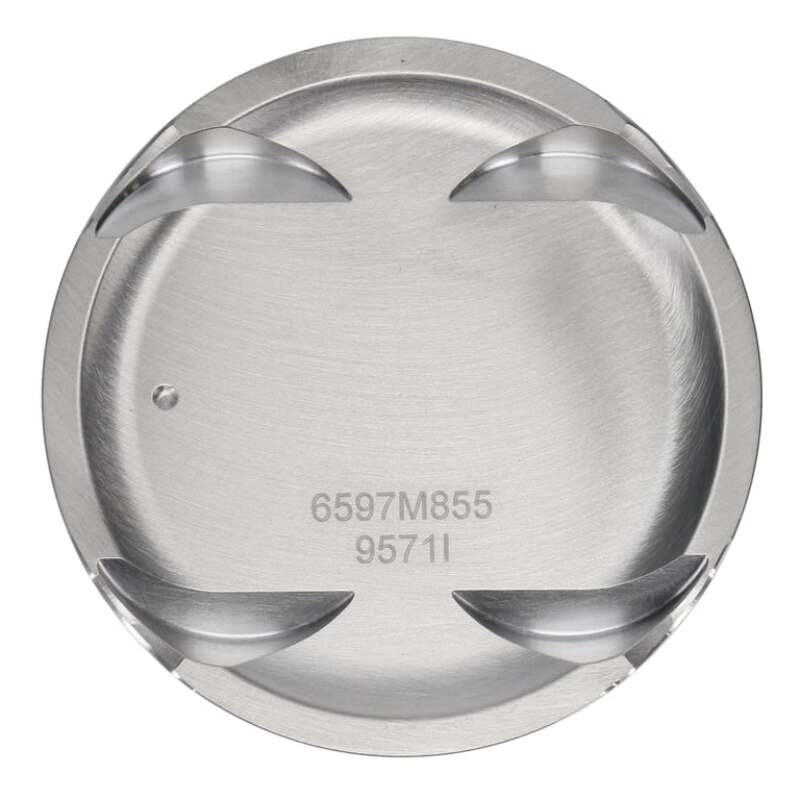

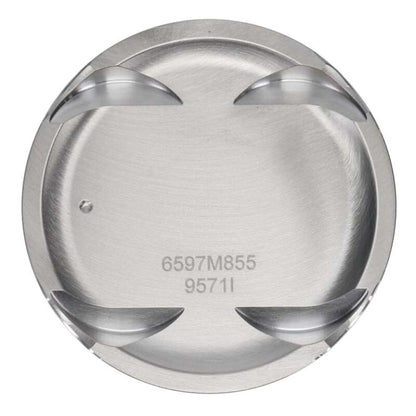

• Dish design for lowered compression
• Pre-gapped rings
• American made
• Set of 4 pistons

Specifications

• Bore diameter: 3.366in (85.5mm)
• Stroke: 3.465in (88mm)
• Rod length: 5.906in (150mm)
• Compression height: 1.378in (35mm)
• Dish volume: -10cc
• Pin diameter: 22mm
• Wall thickness: 0.200in
• Pin material: Tool steel
• Ring package: 1/16, 1/16, 3/16 plasma moly

Included Components

• 4x Forged pistons
• 4x Tool steel wrist pins
• Piston rings
• Pin locks

Product Description

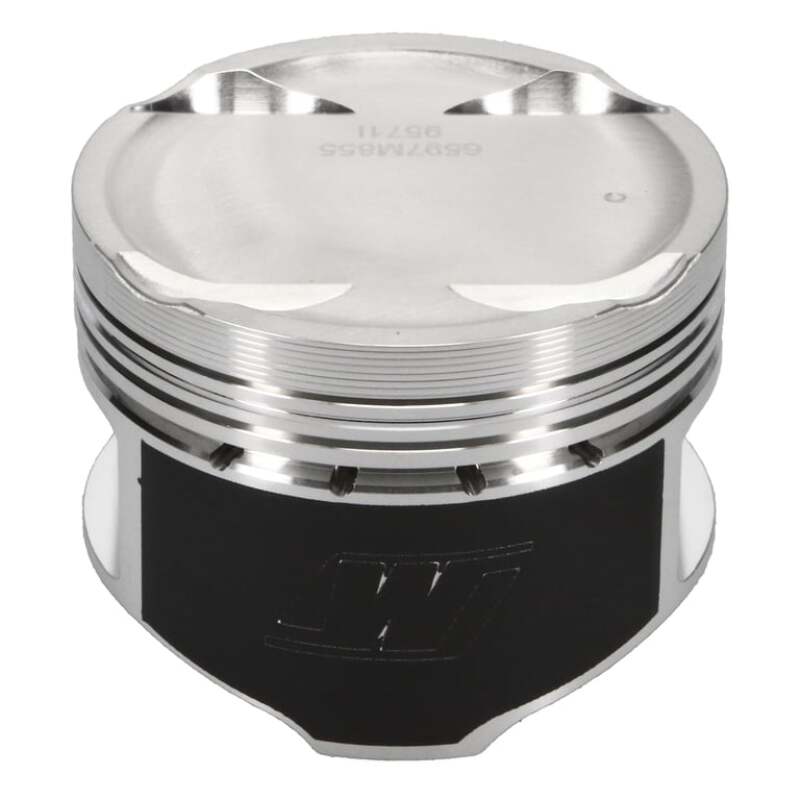

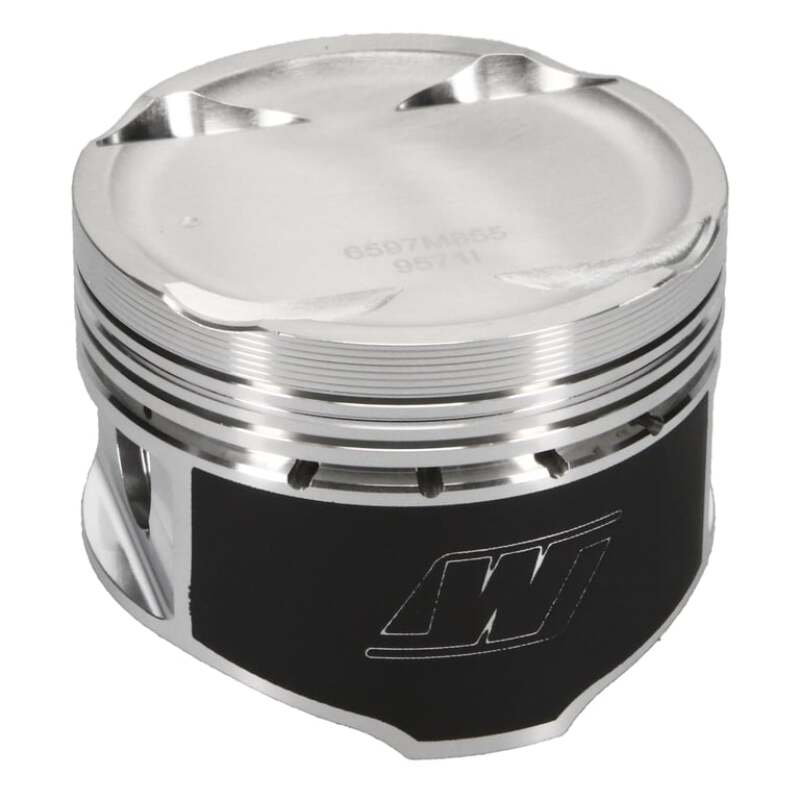

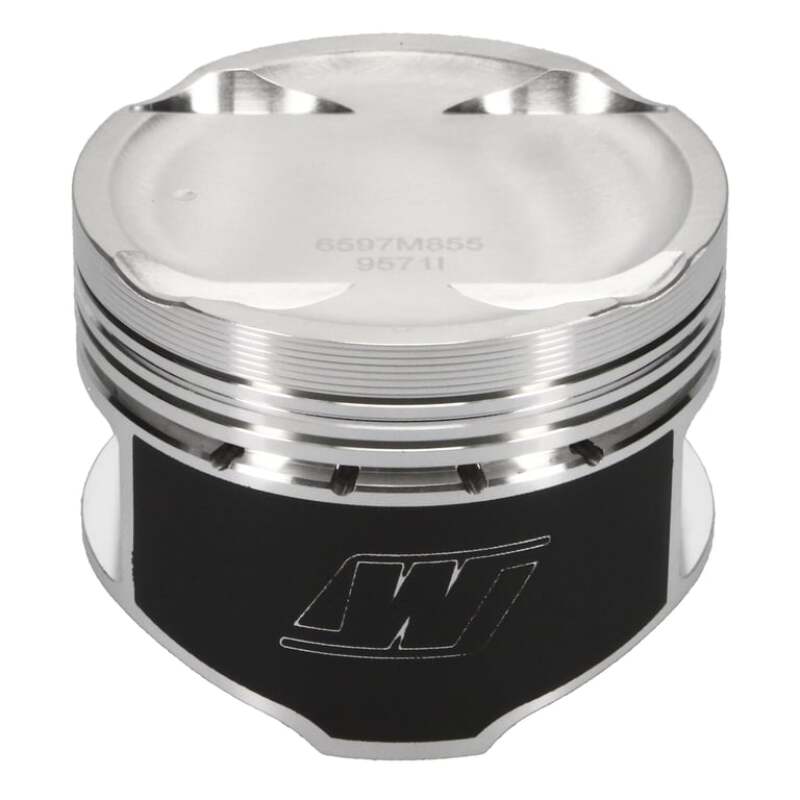

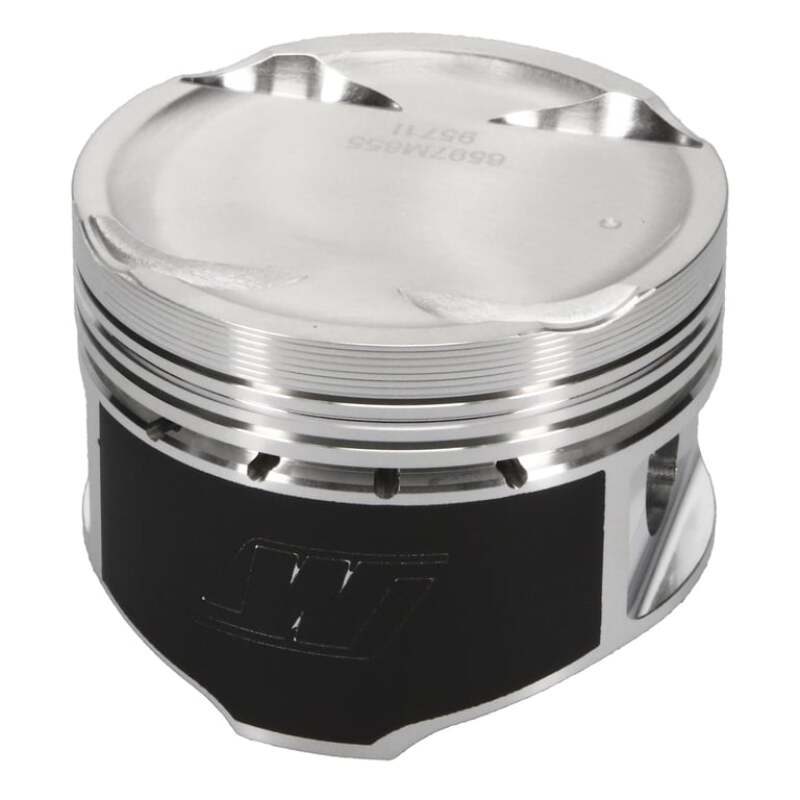

The Wiseco K597M855 is a Pro Tru Sport Compact series forged piston set engineered specifically for the 7-bolt Generation 2 Mitsubishi 4G63 2.0L turbo engine found in the Eclipse, Talon, and Laser. Forged from 2618 high strength aluminum alloy and machined on state-of-the-art equipment, this set is built stronger and lighter than a standard cast piston, giving engine builders a durable foundation for serious turbocharged power.

Each piston features ArmorGlide skirt coating for seizure resistance, reduced friction, and quieter operation, along with precision-machined ring grooves for consistent sealing across the piston's service life. The dish design lowers compression to suit forced induction builds, and the set ships complete with a plasma moly 1/16, 1/16, 3/16 pre-gapped ring package for excellent seal, reduced friction, and long service life.

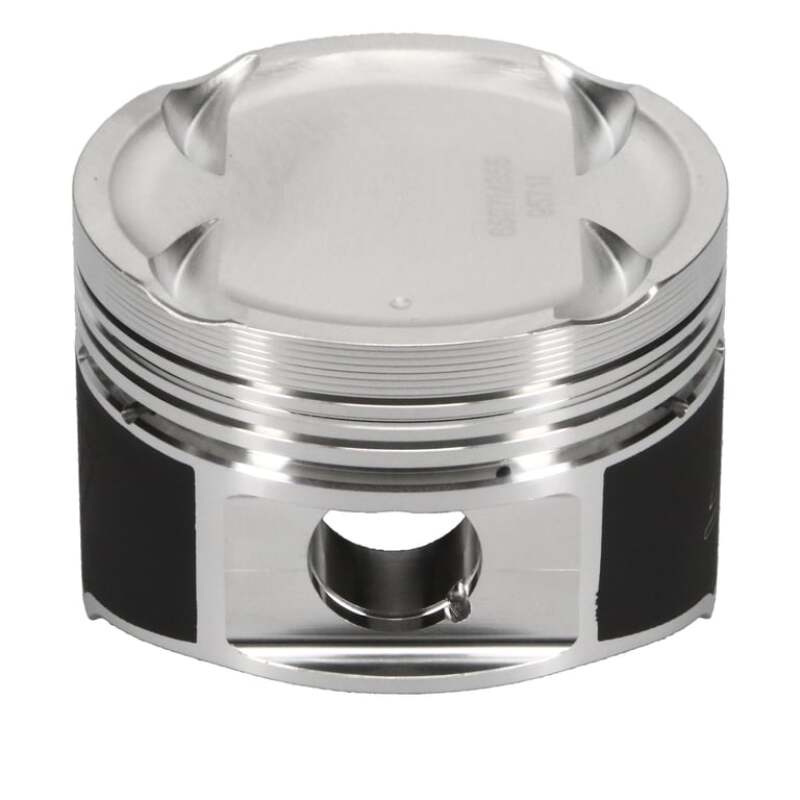

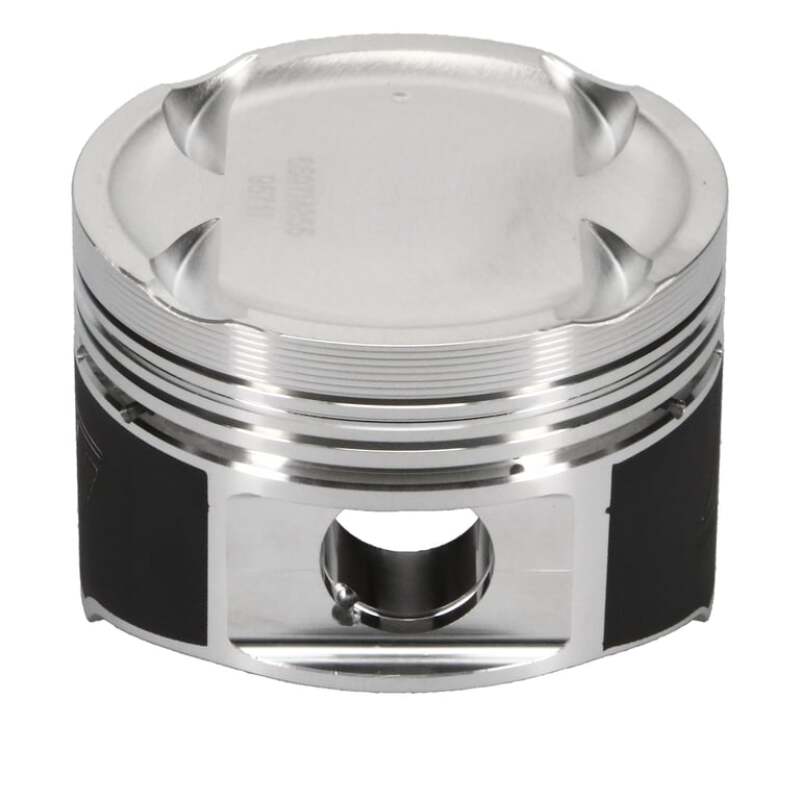

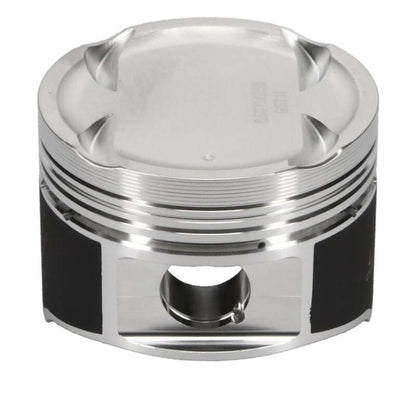

This piston set is intended for engine builders performing a full rebuild or forced induction upgrade on a 7-bolt 4G63 block who need a proven, race-ready forged piston at a strong value. Tool steel wrist pins with a 0.200-inch wall thickness are included; this set is not compatible with 6-bolt 4G63 blocks, which require a different piston and pin specification.
