Mahle 2243851 OE MaxxForce 7 Piston Set STD for 08-10 Ford 6.4L Powerstroke

Vehicle Fitment

• 2008-2010 Ford F-250 Super Duty, 6.4L V8 Power Stroke Diesel
• 2008-2010 Ford F-350 Super Duty, 6.4L V8 Power Stroke Diesel
• 2008-2010 Ford F-450 Super Duty, 6.4L V8 Power Stroke Diesel
• 2008-2010 Ford F-550 Super Duty, 6.4L V8 Power Stroke Diesel

Fitment Notes

• Standard (STD) bore -- 3.870" / 98.30mm -- requires block inspection to confirm bore is at standard size before ordering
• Rings NOT included -- sold separately (ring set PN 42246 or 42097 depending on bore size)
• Consult your machine shop or engine builder to confirm bore size before ordering
• Oversize variants available: 2243851WR-0.25MM, 2243851WR-0.50MM, 2243851WR-0.75MM (pistons with rings)
• Navistar MaxxForce 7 engine -- shares architecture with 6.4L Power Stroke
• Not legal for sale or use in California
• Sold as a set of 8 pistons

Features

• Navistar MaxxForce 7 piston design -- engineered to address stock 6.4L piston cracking failures at the bowl and center hump
• Redesigned bowl geometry -- strengthened center hump reduces cracking under high combustion pressure
• Cast steel insert retained for daily-driver durability
• Compensated ring grooves -- proper ring loading and oil control
• Expansion-controlled design -- tight fitting clearances reduce engine noise, wear, and emissions
• OE quality -- MAHLE is an OE supplier for this application
• Warranty: 2-year / 200,000 miles

Specifications

• Part Number: 2243851
• Engine: Navistar MaxxForce 7 / Ford 6.4L Power Stroke V8 Diesel
• Bore: 3.870" / 98.30mm (Standard)
• Stroke: 4.130"
• Rings included: No
• Pins included: No
• Quantity: Set of 8 pistons
• Warranty: 2-year / 200,000-mile limited

Included Components

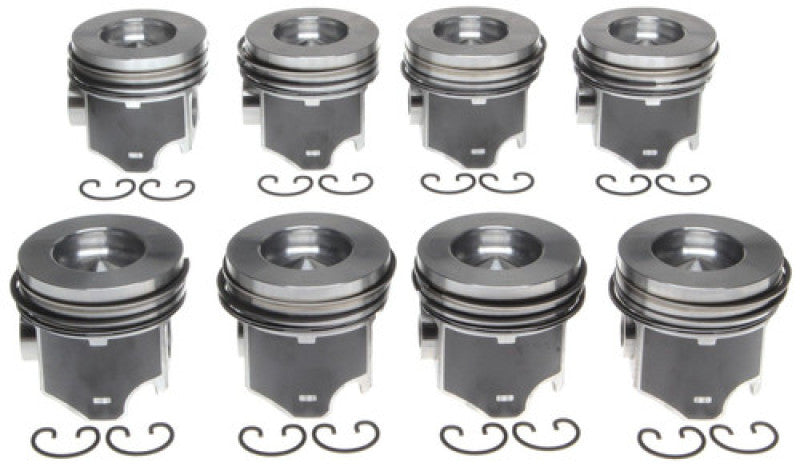

• 8x MAHLE OE MaxxForce 7 standard bore pistons

Product Description

The MAHLE 2243851 is a set of 8 standard bore OE-quality pistons for the 2008-2010 Ford F-250, F-350, F-450, and F-550 Super Duty equipped with the 6.4L Power Stroke V8 diesel. These pistons use the Navistar MaxxForce 7 design -- an OE redesign of the stock 6.4L piston -- and are commonly used in 6.4L Power Stroke rebuilds to address the well-documented piston cracking issue that plagues the original equipment. The stock 6.4L pistons are prone to cracking at the bowl and center hump under high combustion pressure; the MaxxForce 7 bowl geometry and strengthened center hump are specifically redesigned to eliminate this failure mode while retaining the cast steel insert for long-term durability.

This is a pistons-only set -- rings are not included and must be ordered separately. Standard bore at 3.870" / 98.30mm -- block must be inspected by a machine shop to confirm bore size is at standard before ordering. Oversize variants are available in 0.25mm, 0.50mm, and 0.75mm increments in the with-rings configuration (2243851WR series). MAHLE is an OE supplier for this application. Not legal for sale or use in California. Backed by MAHLE's 2-year / 200,000-mile limited warranty.
