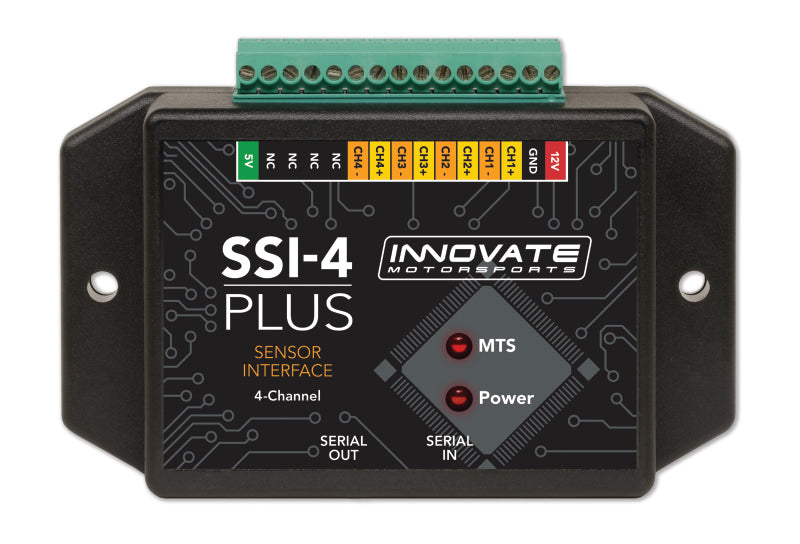

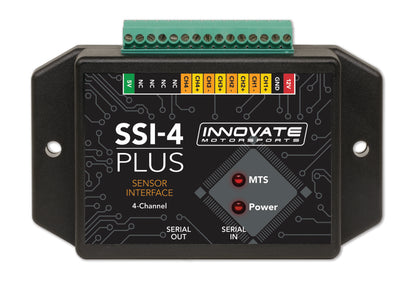

Innovate 3914 SSI-4 Plus 4-Channel Sensor Interface for Universal Applications

Vehicle Fitment

• Universal - suitable for any application requiring multi-sensor data logging
• Compatible with Innovate Motorsports Modular Tuning System (MTS)
• Integrates with devices like MTX-L, LM-2, LC-2, and TC-4 Plus

Features

• Captures data from 4 external sensors
• Supports frequency inputs (e.g., engine RPM, speed sensors)
• Accepts 0-5V reference signals (e.g., MAP sensors, pressure transducers)
• Channel 2 input can be configured for duty cycle or dwell
• Provides 5V output to power external sensors
• Can be used as a stand-alone system or integrated into an MTS log chain
• Compact and durable design suitable for automotive environments
• Easy installation with standard connectors

Specifications

• Part Number: 3914
• Input Channels: 4
• Input Types: Frequency, 0-5V reference, duty cycle, dwell
• Power Output: 5V to power external sensors
• Compatibility: Innovate Motorsports MTS products
• Dimensions: Compact form factor for easy installation
• Weight: Approximately 0.5 lbs (227g)
• Mounting: Includes mounting hardware

Included Components

• 1x Innovate 3914 SSI-4 Plus Sensor Interface
• 1x Mounting hardware
• 1x Wiring harness with connectors
• 1x Installation manual

Product Description

The Innovate Motorsports 3914 SSI-4 Plus is a versatile 4-channel sensor interface designed to capture data from various external sensors. Whether you're monitoring engine RPM, vehicle speed, or analog signals like MAP sensors and pressure transducers, the SSI-4 Plus provides the flexibility needed for comprehensive data logging.

This device can function as a stand-alone system or be integrated into Innovate's Modular Tuning System (MTS), allowing for seamless communication with other MTS devices such as the MTX-L, LM-2, LC-2, and TC-4 Plus. Its compact design ensures easy installation in a variety of applications, from performance tuning to custom builds.

With the ability to support multiple sensor types and configurations, the SSI-4 Plus is an essential tool for anyone looking to enhance their data acquisition capabilities and optimize their vehicle's performance.
