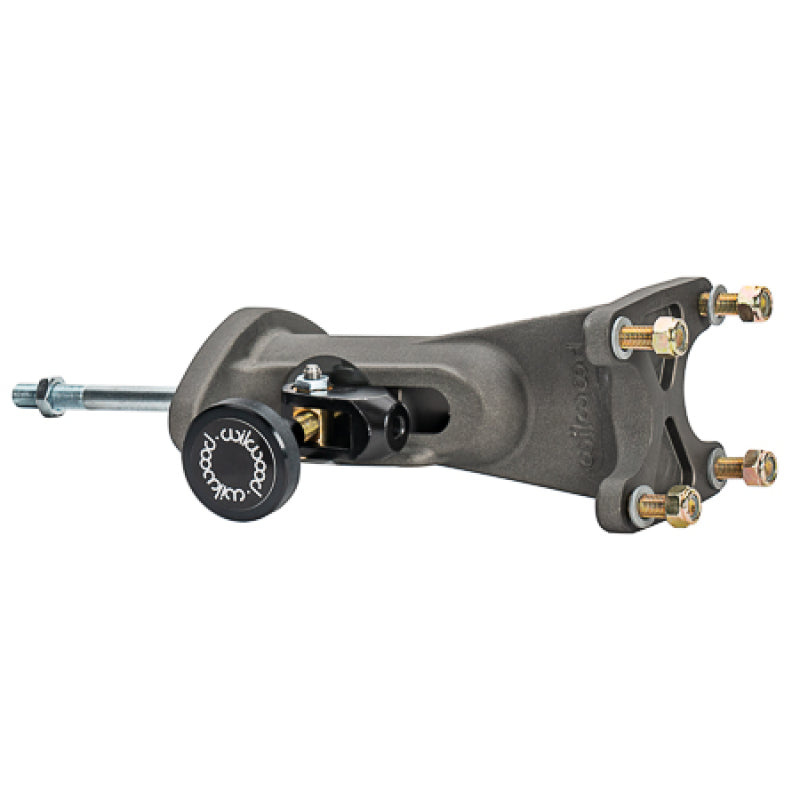

Wilwood 340-16920 Universal Tandem Mount Balance Bar Assembly

Vehicle Fitment

• Universal - designed to replace a factory horizontal tandem master cylinder mount in many street and performance vehicles

Features

• Tandem mount balance bar assembly for adjustable brake bias control
• Easily converts vehicles with a tandem master cylinder to dual master cylinder setup
• Adjustable balance bar lets you fine-tune front/rear pressure balance
• Included adjustment knob for bias changes; optional remote cable available
• Forged billet aluminum construction for strength with reduced weight
• Designed with oval mounting holes for compatibility with a wide range of firewall stud spacings
• Mounts two vertical master cylinders for tailored brake response and balance
• Ideal for street, track, and custom performance brake conversions

Specifications

• Part Number: 340-16920 (Wilwood Tandem Mount Balance Bar Assembly)
• Mount Type: Firewall tandem mount balance bar
• Material: Forged billet aluminum
• Mounting Hole Fit: 3.22"-3.40" oval on-center firewall studs
• Master Cylinder Mount: Dual vertical bolt pattern (2.25" on-center holes)
• Adjustment: Knob-type balance bar bias adjuster included
• Finish: Gray hard-anodized billet aluminum

Included Components

• 1x Tandem mount balance bar assembly (Wilwood 340-16920)
• Balance adjuster knob

Product Description

The Wilwood 340-16920 Universal Tandem Mount Balance Bar Assembly is a high-performance brake bias control solution that replaces a typical horizontal bolt pattern tandem master cylinder on many street and custom performance vehicles. Designed to mount two vertical master cylinders in place of the single tandem unit, this balance bar assembly allows installers to tailor front-to-rear brake pressure using differing master cylinder bore sizes and the integrated adjuster knob.

Its forged billet aluminum construction provides strength with minimal weight, while the oval firewall mounting holes accommodate 3.22"-3.40" on-center studs for broad compatibility. The adjustable balance bar makes real-world tuning easier, and an optional remote cable adjuster can be added for in-cockpit bias changes. This part is ideal for performance street cars, custom builds, and track vehicles where precise brake bias control improves vehicle balance and stopping performance.
