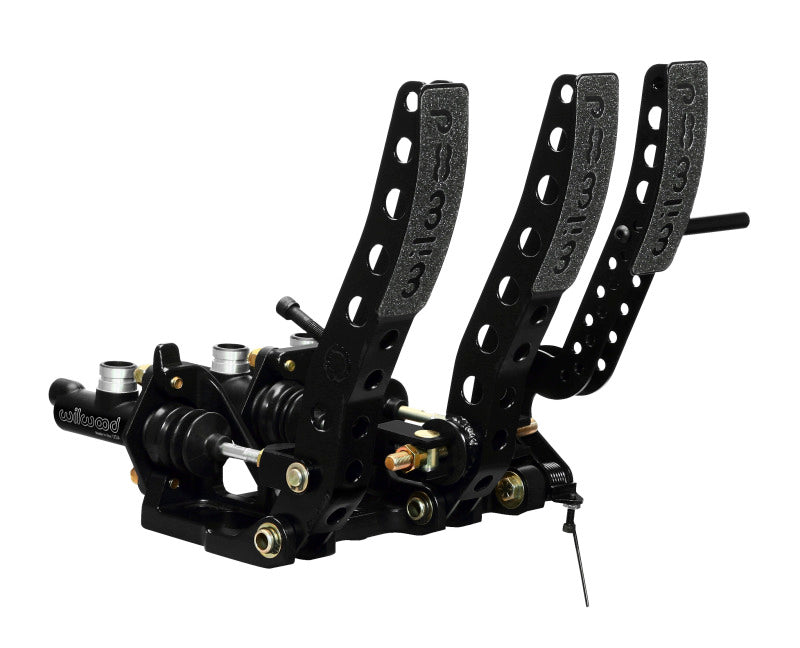

Wilwood 340-12410 Floor Mount Brake Clutch Throttle Triple Pedal Assembly 5.25:1

Vehicle Fitment

• Universal -- floor mount application for rear engine cars and custom builds

Fitment Notes

• Designed for rear engine cars -- throttle bell crank and linkage NOT included

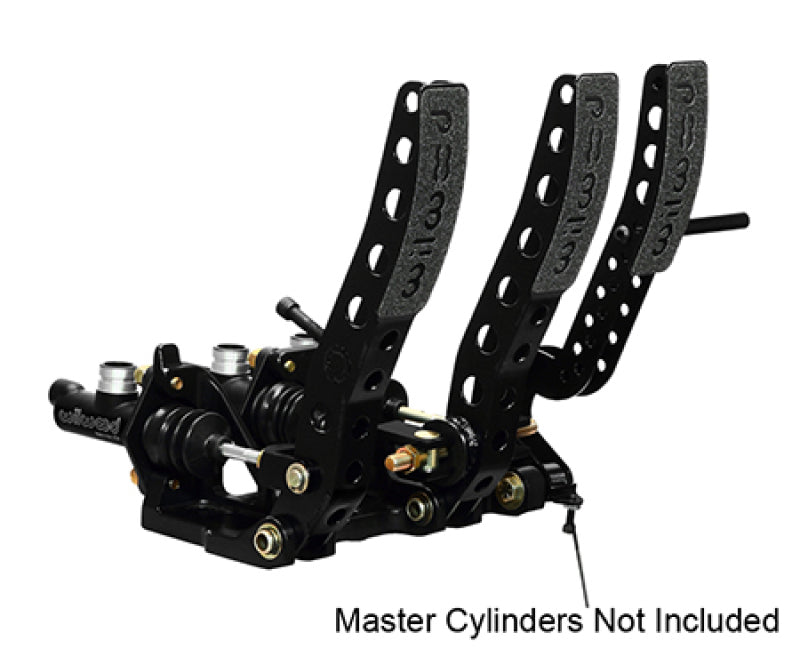

• Master cylinders NOT included -- sold separately
• Floor mount only -- not compatible with firewall or swing mount applications
• Forward-facing mount orientation
• Compatible remote bias adjuster: Wilwood 340-4990
• Compatible pivot bolt kit: Wilwood 230-17422

Features

• Triple pedal design -- brake, clutch, and throttle
• Balance bar included -- adjustable brake bias front to rear
• Balance bar lockable via jam nut or attachable to remote cable
• Three individual fabricated steel pedal arms
• Non-slip aluminum pedal pads
• Lightweight aluminum frame
• Black e-coat finish -- corrosion protection
• Mounting studs and clevises included
• Made in USA (Camarillo, CA)

Specifications

• Part Number: 340-12410
• Type: Floor Mount Brake / Clutch / Throttle Pedal Assembly
• Mount Location: Floor
• Mount Facing: Forward
• Pedal Ratio: 5.25:1 (brake and clutch)
• Mount Length: 11.40 inches
• Pedal 1 Length: 10.66 inches
• Pedal 2 Length: 10.66 inches
• Frame Material: Aluminum
• Pedal Arm Material: Fabricated steel
• Finish: Black e-coat
• Balance Bar: Included
• Master Cylinders: Not included
• Throttle Linkage: Not included
• UPC: 889545028423

Included Components

• 1x Triple pedal assembly (brake / clutch / throttle)
• Balance bar assembly
• Mounting studs
• Clevises

Product Description

The Wilwood 340-12410 is a floor mount brake, clutch, and throttle triple pedal assembly designed for rear engine cars and custom race or street builds. Three individual fabricated steel pedal arms with non-slip aluminum pads control brake, clutch, and throttle functions from a single lightweight aluminum frame with black e-coat finish. The included balance bar assembly allows precise adjustment of brake bias between front and rear circuits -- lockable with the jam nut for a fixed setting, or connectable to a remote cable (Wilwood 340-4990, sold separately) for on-track adjustment.

Note: this assembly is configured for rear engine applications and does not include a throttle bell crank or throttle linkage. Master cylinders are not included and must be ordered separately -- Wilwood offers a full range of compatible compact and high-volume master cylinders. Pedal ratio is 5.25:1 on both brake and clutch pedals. Made in Camarillo, CA.
