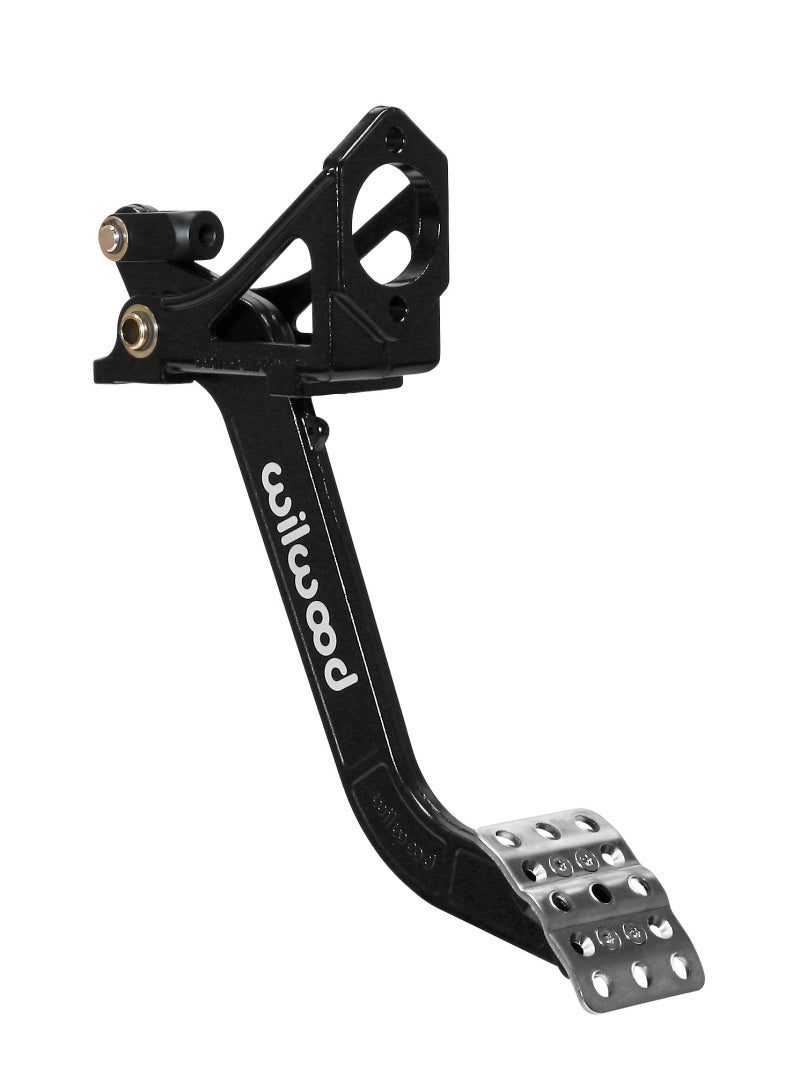

Wilwood 340-13574 Reverse Swing Pedal for Universal Brake/Clutch Applications

Vehicle Fitment

• Universal fit for custom applications using Wilwood vertical mount master cylinders

Features

• Lightweight aluminum frame with black E-coat finish
• Forged I-beam style pedal arm for high strength
• 6:1 pedal ratio for improved leverage and control
• Non-skid waffled pedal pad for enhanced grip
• Lateral pedal pad adjustment for driver preference
• Compatible with Wilwood vertical mount master cylinders
• Reverse swing mount design for firewall installation
• Ideal for brake or clutch applications in custom builds

Specifications

• Brand: Wilwood
• Part Number: 340-13574
• UPC: 889545028508
• Mount Location: Swing
• Mount Facing: Reverse
• Pedal Ratio: 6.0:1
• Pedal Length: 12.02 inches
• Mount Length: 11.28 inches
• Material: Aluminum
• Finish: Black E-coat
• Weight: 2.4 lbs

Included Components

• 1x Wilwood Reverse Swing Mount Pedal Assembly

Product Description

The Wilwood 340-13574 Reverse Swing Mount Pedal Assembly is engineered for custom applications requiring a high-performance brake or clutch pedal solution. Its lightweight aluminum construction and forged I-beam design provide exceptional strength without adding unnecessary weight. The 6:1 pedal ratio offers enhanced leverage, delivering precise control and responsiveness.

Designed for reverse swing mounting inside the firewall, this pedal assembly is compatible with Wilwood's vertical mount master cylinders, making it a versatile choice for various custom builds. The non-skid waffled pedal pad ensures secure footing, while its lateral adjustment feature allows for personalized driver comfort. Whether you're upgrading a race car or building a custom vehicle, the Wilwood 340-13574 offers reliability and performance in a compact design.
