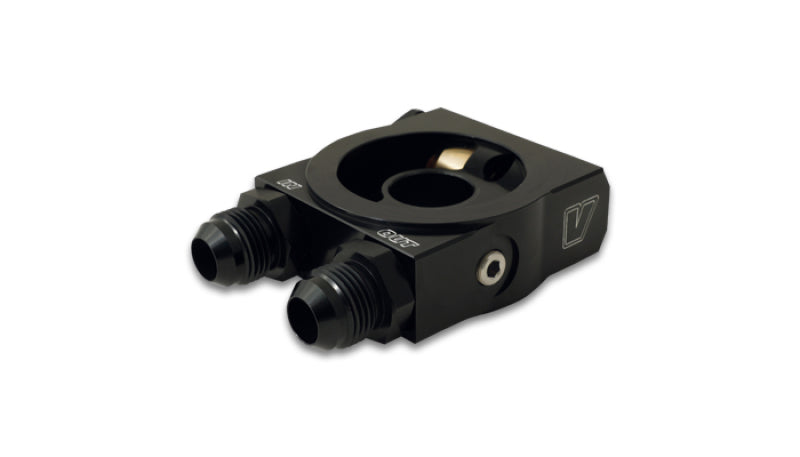

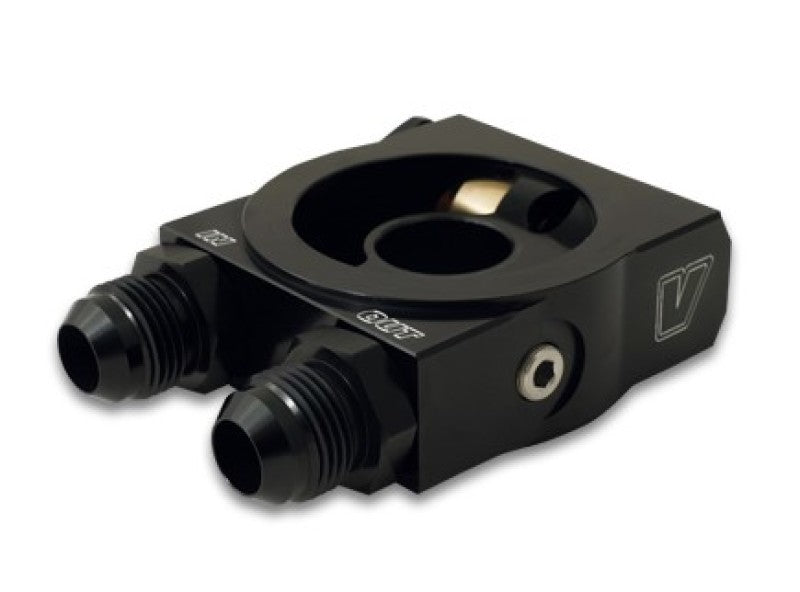

Vibrant 17065 Thermostatic Oil Cooler Sandwich Adapter Kit Universal

Vehicle Fitment

• Universal Fit - Compatible with engines using spin-on oil filters and external oil cooler systems
• Supports multiple oil filter thread sizes: M18x1.5, M20x1.5, M22x1.5, 3/4-16, and 13/16-16
• Designed for custom oil cooler installations in performance cars, trucks, and race vehicles

Features

• Integrated thermostat automatically regulates oil flow to external oil cooler
• Maintains optimal oil temperature and prevents over-cooling during warm-up
• Billet 6061 aluminum construction for strength and durability
• Black anodized finish improves corrosion resistance and appearance
• -10 ORB inlet and outlet ports for high-flow oil routing
• Includes -10AN male flare adapter fittings for easy hose connection
• Allows installation of external oil cooler while retaining stock oil filter location
• Compact sandwich design mounts between engine block and oil filter

Specifications

• Part Number: 17065
• Product Type: Thermostatic Oil Cooler Sandwich Adapter
• Material: Billet Aluminum
• Finish: Black Anodized
• Inlet/Outlet Ports: -10 ORB Female
• Adapter Fittings: -10 AN Male Flare
• Thermostat Activation: Begins opening ~160°F (71°C)
• Fully Open Temperature: ~180°F (82°C)
• Supported Oil Filter Threads: M18x1.5, M20x1.5, M22x1.5, 3/4-16, 13/16-16
• Mount Type: Sandwich adapter between engine block and oil filter

Included Components

• 1x Thermostatic Oil Sandwich Adapter
• 2x -10AN Male Flare Adapter Fittings
• 5x Oil Filter Adapter Bolts (M18x1.5, M20x1.5, M22x1.5, 3/4-16, 13/16-16)
• 2x Port Plugs
• O-Ring Seals

Product Description

The Vibrant Performance 17065 Thermostatic Oil Cooler Sandwich Adapter is designed to integrate an external oil cooler into high-performance or custom engine builds while maintaining proper oil temperature control. Installed between the engine block and the oil filter, this adapter allows oil to be routed through external -10AN lines to a cooler while keeping the factory oil filter position intact. Its built-in thermostat ensures the oil warms up properly before circulating through the cooler.

Constructed from durable billet 6061 aluminum with a black anodized finish, the adapter provides excellent strength, corrosion resistance, and long-term reliability in demanding motorsport environments. The thermostat begins opening around 160°F and is fully open at approximately 180°F, helping maintain optimal oil temperature under both street and track conditions. The kit includes -10AN fittings and multiple oil filter adapter bolts, allowing compatibility with a wide range of engines using common spin-on oil filters. This universal design is ideal for custom oil cooling systems in performance cars, race vehicles, and high-output engine builds.
