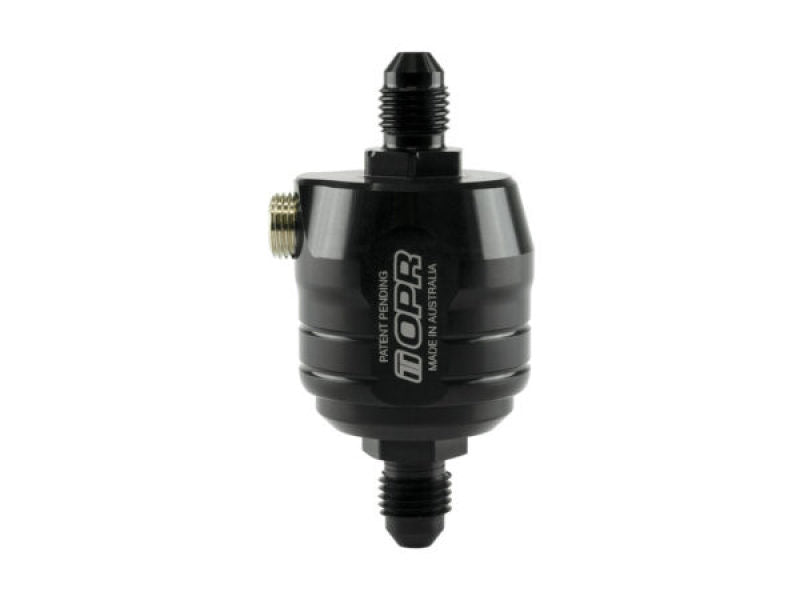

Turbosmart TS-0811-0012 OPR V2 Turbo Oil Pressure Regulator 4 AN Return-Less

Vehicle Fitment

• Universal internal turbo oil feed systems (-4 AN inlet/outlet)

Features

• Turbosmart OPR V2 turbo oil pressure regulator - return-less inline design
• Patent-pending flow control technology for consistent, laminar oil delivery to turbo
• Built-in 44 micron stainless steel mesh oil filter for debris protection
• Down-regulates excessive engine oil pressure to suit most turbochargers
• -4 AN inlet and outlet ports for standard turbo oil feed lines
• 1/8" NPT sensor/gauge port for pressure monitoring
• Directional inlet feed logic engraved on housing for correct flow orientation
• Australian-designed and manufactured, suitable for all engine oils

Specifications

• Brand: Turbosmart
• Part Number: TS-0811-0012
• Type: OPR V2 Turbo Oil Pressure Regulator (return-less inline)
• Ports: -4 AN inlet/outlet, 1/8" NPT sensor/gauge
• Filter: Built-in 44 micron stainless mesh
• Orientation: Inline return-less oil feed regulator
• Material: Anodized billet aluminum (6262 T6)
• Flow Type: Laminar flow pressure regulation

Included Components

• 1x Turbosmart OPR V2 turbo oil pressure regulator (TS-0811-0012)
• 1x 1/8" NPT port blanking plug
• 1x Turbosmart branded decal
• Installation/Instruction sheet

Product Description

The Turbosmart TS-0811-0012 OPR V2 Turbo Oil Pressure Regulator is a universal return-less inline solution engineered to provide stable, controlled oil pressure to turbocharger oil feeds without the guesswork of restrictor pills or complex plumbing. Using Turbosmart's patent-pending flow control strategy, this regulator achieves target oil pressure delivery in a laminar, consistent flow that protects critical turbocharger bearings and seals from over-pressurised engine oil conditions that can lead to smoking, oil consumption, or premature wear.

Unlike traditional return-type regulators, the OPR V2 installs in the oil feed line and eliminates the need for a return line while still regulating pressure appropriately for most turbochargers. The built-in 44 micron stainless mesh filter helps protect the regulator and turbo from debris in the oil, and the 1/8" NPT sensor or gauge port allows you to monitor real-time oil pressure at the turbo feed. With universal -4 AN inlet and outlet ports, anodized billet aluminum construction, and simple inline installation, the TS-0811-0012 is ideal for performance builds, custom turbo systems, and racing applications seeking reliable turbo oil regulation.
