Baja Designs 448079 S8 20in Amber Grille Bar 2022-2026 Toyota Tundra/Sequoia TRD

Vehicle Fitment

• 2022-2026 Toyota Tundra Non-Hybrid (TRD Heritage Grille Conversion w/ Shutter Assembly, 3.5L Twin-Turbo V6, 2WD/4WD)
• 2023-2026 Toyota Sequoia Non-Hybrid (TRD Grille Models, 3.5L Twin-Turbo V6 Hybrid excluded - see note)

Fitment Notes

• Does NOT fit Toyota Tundra TRD Pro models - a separate OEM replacement kit is required for stock TRD Pro grilles
• Does NOT fit Toyota Tundra Hybrid or Sequoia Hybrid models
• Designed specifically for the TRD Heritage grille conversion with shutter assembly - grille is NOT included with this kit
• Tundra Non-TRD Pro owners must have completed or be completing the TRD Heritage grille conversion prior to installing this kit
• Compatible with sPOD and Switch Pros power distribution systems

Features

• Baja Amber S8 Driving/Combo beam pattern blends 42° wide-angle and 9° spot optics for full near-field and long-distance coverage (Lighting Zones 1-4)
• Amber lens filters blue-spectrum light, reducing backscatter and glare in dust, rain, and fog - ideal for desert, overland, and mixed-weather trail use
• Grille-integrated mounting maintains a seamless, low-profile factory appearance with no exposed external brackets
• ClearView® optics direct all output precisely where it's needed with minimal scatter or spill
• MoistureBlock® sealed wiring is fully waterproof, rainproof, and submersible
• CopperDrive® technology sustains all 16 LEDs at 100% rated output without thermal throttling
• uService® replaceable lens system allows beam pattern and lens swaps in the field without voiding the warranty
• IP69K-rated aircraft-grade aluminum housing built for high-pressure wash, dust, and extreme off-road conditions

Specifications

• Light Bar Size: 20 inches
• Lens Color: Baja Amber
• Beam Pattern: Driving/Combo (42° Driving + 9° Spot)
• Raw Lumens: 12,700
• Wattage: 120W
• Amperage: 8.0A
• LED Count: 16x Cree LEDs
• LED Life Expectancy: 49,930 hours
• Color Temperature: 5000K Daylight
• Bezel: Billet Machined Aluminum
• Lens: Amber Hard-Coated Polycarbonate (replaceable)
• Housing: Aircraft-Grade Aluminum with Mil-Spec Hard Anodize
• Mounting Hardware: Stainless Steel
• IP Rating: IP69K
• Mounting Position: Front Grille (TRD Heritage Conversion)
• LED Life Expectancy: 49,930 hours
• Warranty: Limited Lifetime

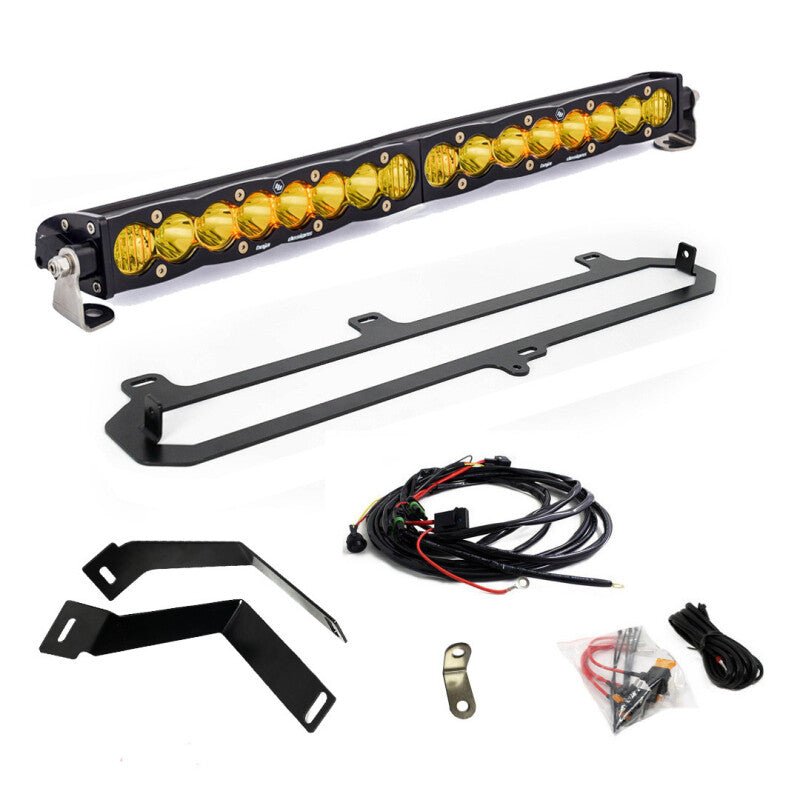

Included Components

• 1x 20" S8 LED Light Bar - Baja Amber Lens, Driving/Combo Beam
• 1x Light Bar Bracket
• 2x Upper Grille Support Brackets
• 1x Stainless L-Bracket
• 1x Wiring Harness (640115)
• 1x S8 Backlit Add-On Harness
• 1x Hardware Kit

Product Description

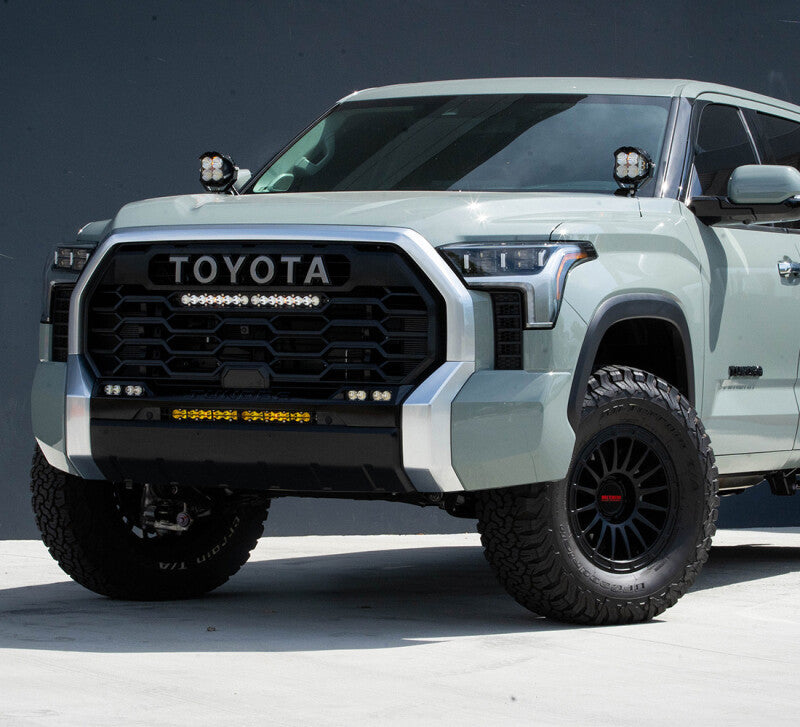

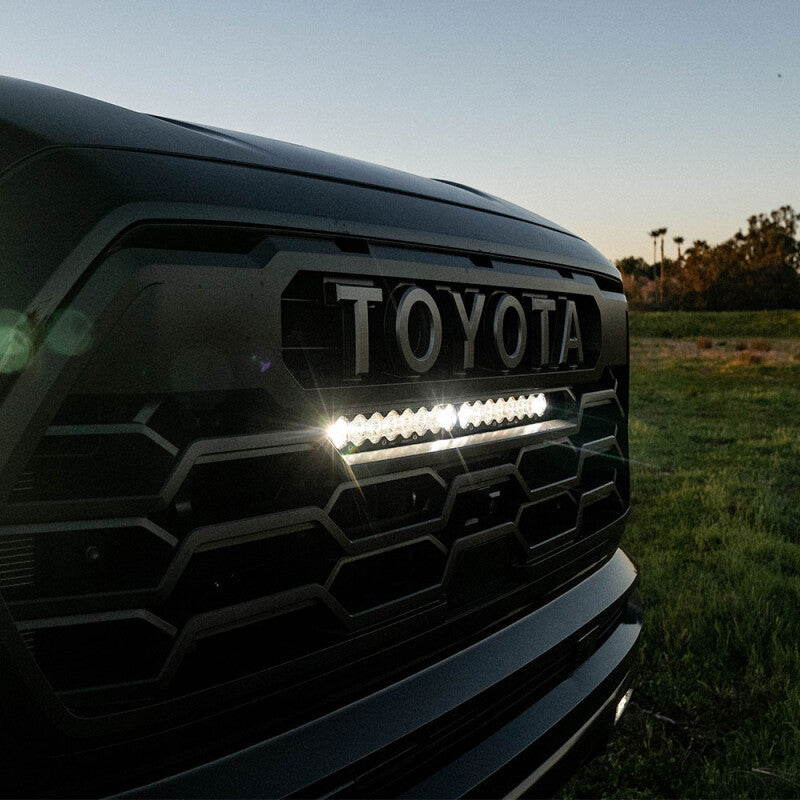

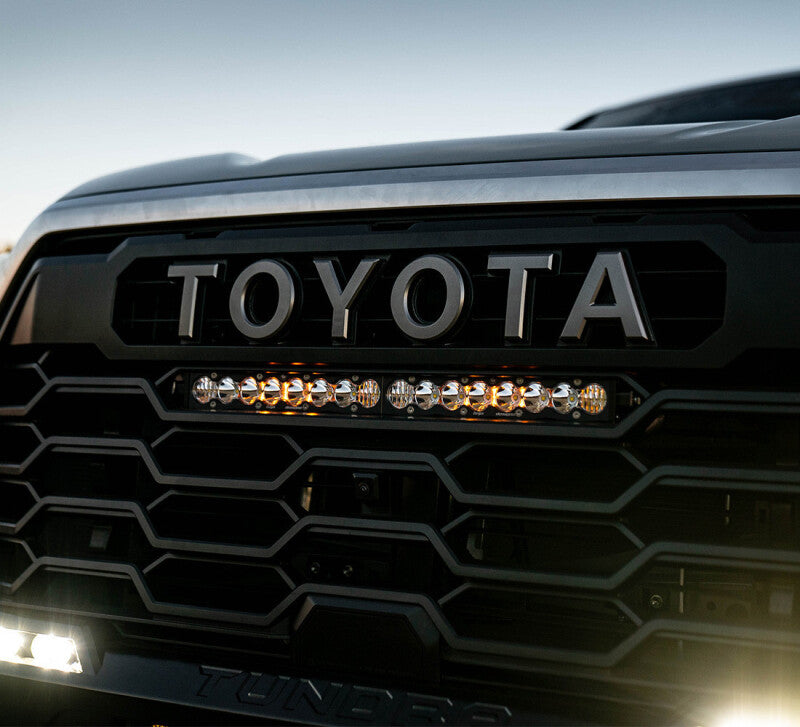

The Baja Designs 448079 is the Baja Amber lens version of the S8 20-inch Grille Light Bar Kit, purpose-built for the 3rd-generation Toyota Tundra Non-Hybrid with TRD Heritage grille conversion (2022-2026) and the Toyota Sequoia Non-Hybrid with TRD grille (2023-2026). This kit is designed for owners who have upgraded to the TRD Heritage grille and want a high-output light bar that integrates cleanly behind it - no external brackets, no drilling, no compromise to the truck's appearance.

The Baja Amber lens sets this kit apart by filtering blue-spectrum light for improved contrast and reduced glare in dusty, foggy, and rainy conditions - making it the go-to choice for desert racing, overland travel, and any environment where atmospheric interference is a factor. Output is a class-leading 12,700 lumens through 16 Cree LEDs in a Driving/Combo beam pattern covering Lighting Zones 1-4. Built with IP69K aircraft-grade aluminum housing, MoistureBlock® wiring, and CopperDrive® thermal management, and backed by a Limited Lifetime Warranty, this kit is engineered to perform at full power for the life of the vehicle.
