Baja Designs 448125 S1 Vent LED Light Kit for 2022-2026 Toyota Tundra All Trims

Vehicle Fitment

• 2022-2026 Toyota Tundra (All Trims, 3.5L Twin-Turbo V6, 3.4L V6 Hybrid, 2WD/4WD)

Fitment Notes

• Mounts exclusively into the factory headlight vent openings - no drilling, cutting, or modification required
• Plug-and-play design integrates with the toggle switch harnesses included in the kit
• Includes 4x S1 Amber Wide Cornering replacement lenses for alternate beam pattern and lens customization
• Patent protected mounting system (USPTO Reg No. 5,766,659)
• Compatible with sPOD and Switch Pros power distribution systems

Features

• Triple S1 configuration per side delivers a versatile combination of Spot and Wide Cornering beams using the factory headlight vent as a seamless OEM-style mounting location
• Headlight vent placement provides elevated side-forward illumination, filling terrain blind spots that bumper and grille lights cannot cover from their lower mounting angles
• Complete adjustability per light pod allows beam direction to be dialed in independently for any terrain or lighting priority
• ClearView® optics direct all output precisely on target with minimal scatter or spill
• MoistureBlock® sealed wiring is fully waterproof, rainproof, and submersible
• CopperDrive® technology drives all LEDs at 100% rated output without thermal throttling
• uService® replaceable lens system allows individual lens swaps in the field without voiding the warranty
• IP69K-rated housing built to withstand high-pressure wash, dust, and extreme off-road conditions

Specifications

• Light Series: S1
• Configuration: 6x S1 Pods total - 2x Spot, 4x Wide Cornering (3 per side)
• Lumens (per light): 2,320
• Total Kit Lumens: 13,920 (all 6 lights)
• Wattage/Amps (per light): 20W / 1.42A
• Beam Patterns: Spot + Wide Cornering (42° flattened horizontal)
• Color Temperature: 5000K Daylight
• Lens: Clear Hard-Coated Polycarbonate - Amber Wide Cornering replacement lenses included
• Housing: Hard Anodized and Powder-Coated Cast Aluminum
• IP Rating: IP69K
• Mounting Position: Factory Headlight Vents (both sides)
• LED Life Expectancy: 49,930 hours
• Warranty: Limited Lifetime

Included Components

• 2x S1 Spot LED Lights - Clear Lens
• 4x S1 Wide Cornering LED Lights - Clear Lens
• 4x S1 Amber Wide Cornering Replacement Lenses
• 2x Toggle Switch Harnesses
• 2x Splitter Harnesses
• All Necessary Mounting Brackets
• All Necessary Hardware

Product Description

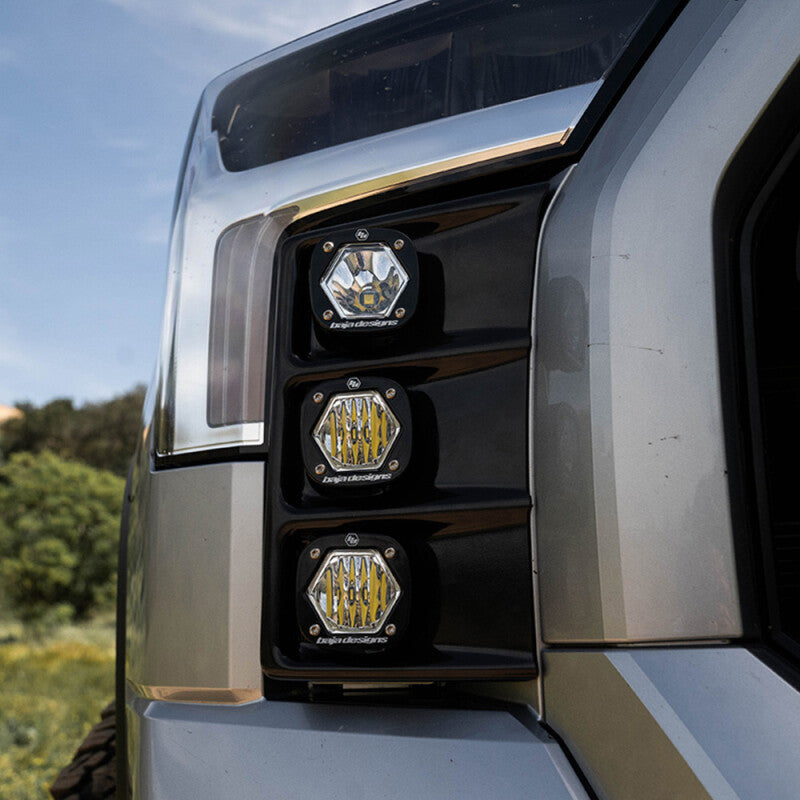

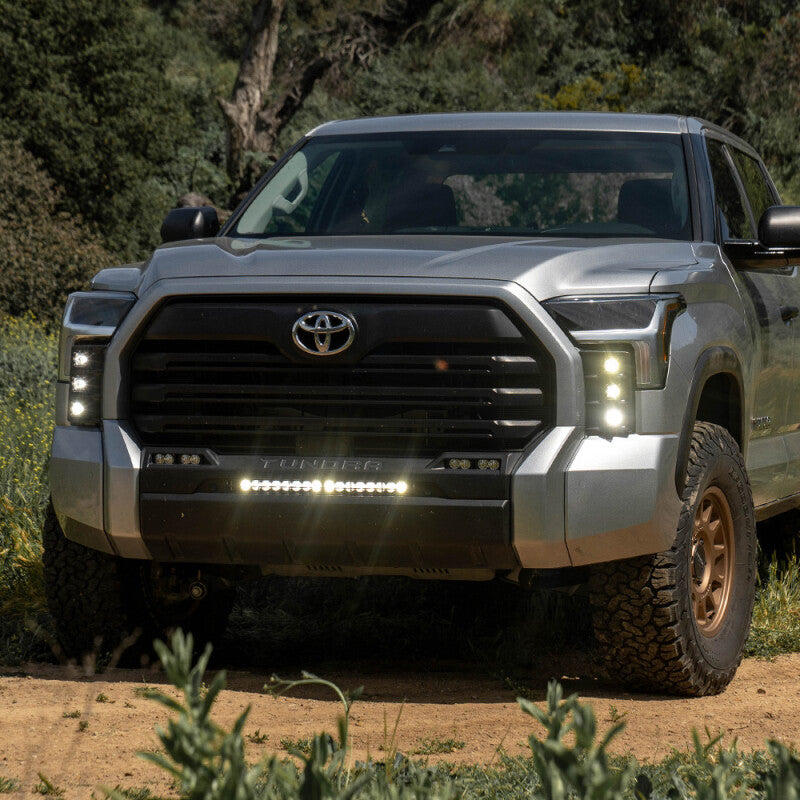

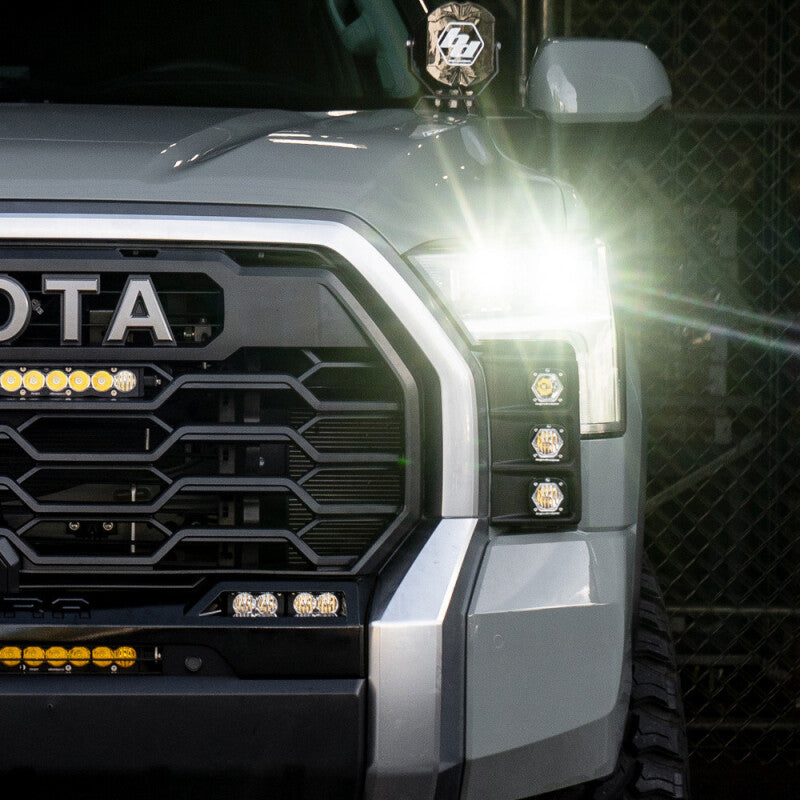

The Baja Designs 448125 S1 Vent Kit is a vehicle-specific lighting solution engineered for the 3rd-generation Toyota Tundra (2022-2026), utilizing the factory headlight vent openings as a patent-protected mounting location that blends seamlessly with the truck's OEM body lines. Unlike grille or bumper kits, the elevated vent position angles light forward and to the sides of the vehicle - covering terrain and obstacle blind spots that lower-mounted lights simply cannot reach. Installation is fully plug-and-play with no drilling or modification required.

Each side of the Tundra receives three S1 LED pods - one Spot and two Wide Cornering - for a total of six lights producing 13,920 lumens across both sides of the truck. The included amber Wide Cornering lenses allow quick field customization of the beam pattern for dust, fog, and mixed-weather conditions without tools. Built with IP69K-rated housing, MoistureBlock® sealed wiring, CopperDrive® thermal management, and a Limited Lifetime Warranty, this kit delivers factory-quality fit with serious off-road performance.
