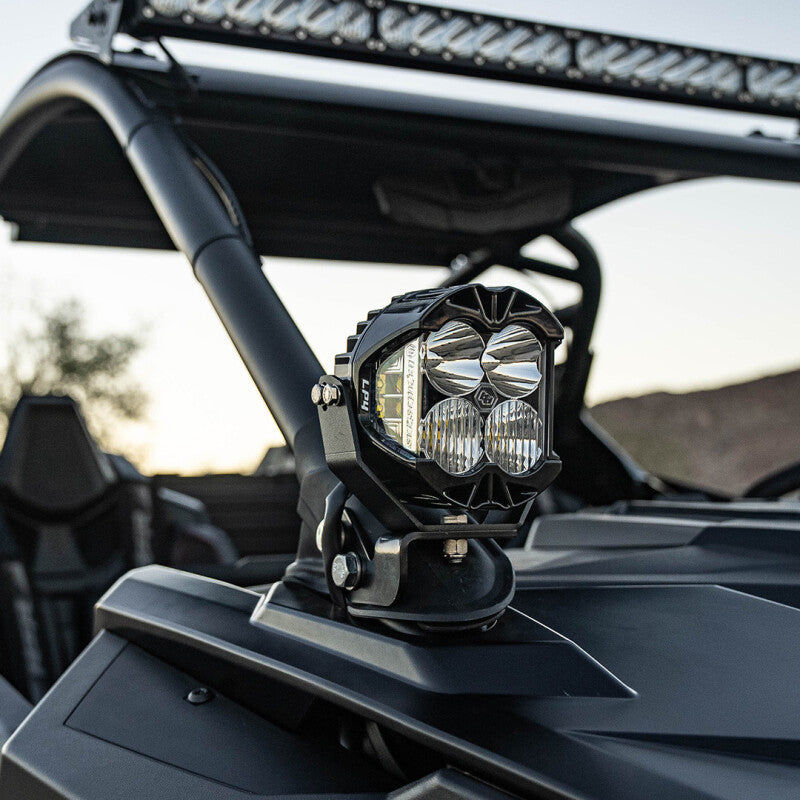

Baja Designs 448106 LP4 Pro A-Pillar Kits Polaris RZR Pro R/Turbo R/Pro XP/Pro S

Vehicle Fitment

• 2022-2026 Polaris RZR Pro R (Sport, Premium, Ultimate, Ultimate Launch Edition - 2-Seat & 4-Seat)
• 2020-2025 Polaris RZR Turbo R (All Trims - 2-Seat & 4-Seat)
• 2020-2026 Polaris RZR Pro XP (All Trims - 2-Seat & 4-Seat)
• 2025 Polaris RZR Pro S (All Trims)

Fitment Notes

• Does NOT fit with a windshield installed - windshield must be removed or absent for proper A-pillar mounting
• Included IPT Reflector Cover Kit must be installed on the inward-facing IPT of each light to prevent light from entering the cab
• Brackets bolt directly to factory A-pillar locations - no drilling or modification required
• Wiring harness integrates with Polaris Pulse Bar technology for a clean factory-finish installation

Features

• LP4 Pro Driving/Combo beam pattern covers Lighting Zones 1-5 with 6,885 forward-projecting lumens plus 1,972 lumens of Integrated Peripheral Technology (IPT) side illumination for a full 200-degree spread of usable light
• Patented IPT delivers dedicated peripheral lighting that fills blind spots on both sides of the vehicle - included IPT covers block cab intrusion while preserving full outward coverage
• Direct Ducted Cooling (DDC) actively circulates air over rear heat sinks, sustaining full-power output during extended high-speed trail use
• Amber backlight feature provides a distinctive visual signature and functions as a standalone marker light
• ClearView® optics direct all forward output precisely on target with minimal scatter
• MoistureBlock® sealed wiring is fully waterproof, rainproof, and submersible
• CopperDrive® technology drives all LEDs at 100% rated output without thermal throttling
• uService® replaceable lens system allows field lens swaps without voiding the warranty

Specifications

• Light Series: LP4 Pro
• Beam Pattern: Driving/Combo (Zones 1-5)
• Forward Projecting Lumens (per light): 6,885 - 8,857 total including IPT
• IPT Lumens (per light): 1,972
• Wattage/Amps (per light): 75.9W / 5.5A
• IPT Spread: 200 degrees
• Color Temperature: 5000K Daylight
• Lens: Clear Hard-Coated Polycarbonate (replaceable)
• Housing: Hard Anodized and Powder-Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Mounting Hardware: Stainless Steel
• IP Rating: IP69K
• LED Life Expectancy: 49,930 hours
• Mounting Position: A-Pillar (factory locations)
• Warranty: Limited Lifetime

Included Components

• 1x Pair LP4 Pro LED Lights - Clear Lens, Driving/Combo Beam
• 2x A-Pillar Mounting Brackets
• 1x LP4 IPT Reflector Cover Kit
• 1x Wiring Harness
• 1x Hardware Kit

Product Description

The Baja Designs 448106 LP4 Pro A-Pillar Kit is engineered for the Polaris RZR Pro R (2022-2026), Turbo R (2020-2025), Pro XP (2020-2026), and Pro S (2025) platforms, delivering the most comprehensive side-and-forward lighting coverage available for these UTVs. Unlike standard pod lights, the LP4 Pro's patented Integrated Peripheral Technology (IPT) provides a full 200-degree spread of usable light - 6,885 forward-projecting lumens combined with 1,972 lumens of dedicated peripheral illumination that eliminates the blind spots standard A-pillar lights can't reach. Included IPT Reflector Covers block inward light from entering the cab, keeping all output focused on the trail.

Brackets bolt directly to factory A-pillar mounting points with no drilling required, and the pre-terminated wiring harness integrates with Polaris Pulse Bar technology for a clean, factory-quality install. Direct Ducted Cooling keeps the LP4 Pro running at full output even during sustained high-speed use, while IP69K housing, MoistureBlock® wiring, CopperDrive® LED management, and a Limited Lifetime Warranty ensure long-term reliability across every terrain these platforms are built for. Note: this kit is not compatible with vehicles equipped with a windshield.
