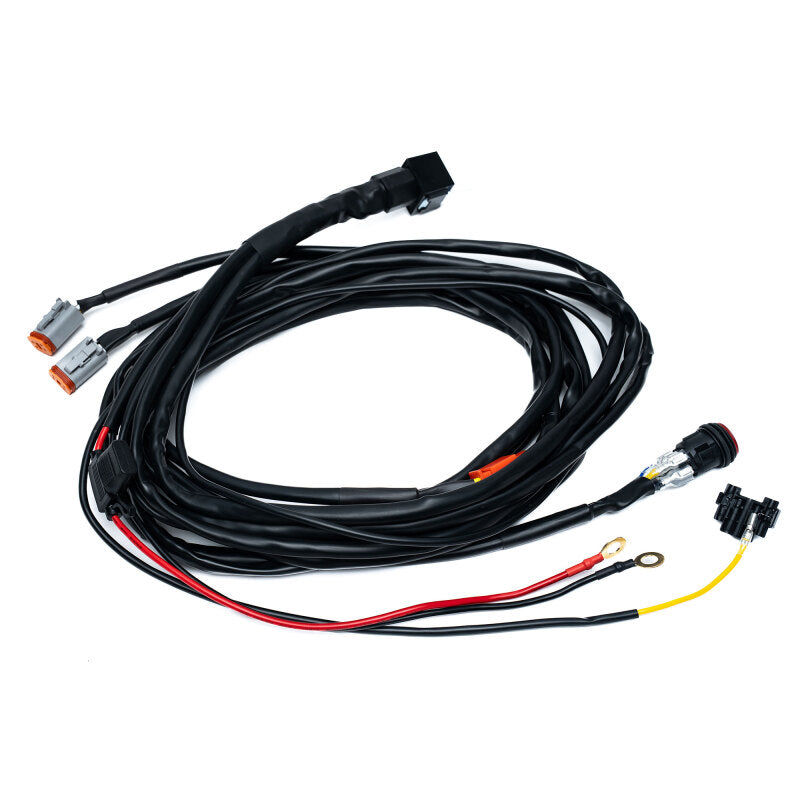

Baja Designs 640055 Squadron 2-Light 4-Pin Deutsch Wiring Harness Kit

Vehicle Fitment

• Universal fitment (12V automotive, trucks, SUVs, UTVs, motorcycles, and off-road vehicles)

Fitment Notes

• Designed specifically for Baja Designs Squadron, S2, and S1 LED light systems
• Supports up to 2 lights on a single harness circuit
• Includes integrated 3-position toggle switch (On / Off / Triggered On)
• Trigger wire allows automatic activation via high beam or reverse signal
• Splitter harnesses may be required for additional lights

Features

• Baja Designs 4-pin Deutsch-style dual light wiring harness
• Controls up to two auxiliary LED lights simultaneously
• Integrated 3-position toggle switch for flexible control options
• Supports backlight, direct battery connection, and trigger activation
• Pre-terminated connectors for plug-and-play installation
• Automotive-grade wiring for durability and vibration resistance
• Weather-resistant sealed connectors for off-road environments
• Compatible with multiple Baja Designs lighting platforms

Specifications

• Part number: 640055
• Type: Dual light wiring harness
• Connector: 4-pin Deutsch-style system
• Switch type: 3-position toggle (On / Off / Triggered On)
• Supported load: Up to 2 Squadron / S2 / S1 lights
• Voltage: 12V automotive systems
• Material: Automotive-grade insulated wiring

Included Components

• 1x Dual light 4-pin Deutsch wiring harness
• 1x Integrated 3-position toggle switch
• 1x Pre-terminated relay and connector set
• Installation wiring leads

Product Description

The Baja Designs 640055 wiring harness is a universal dual-light control solution designed for Squadron, S2, and S1 LED lighting systems. It simplifies installation by allowing up to two auxiliary lights to be powered and controlled through a single integrated harness system.

This harness features a 4-pin Deutsch-style connector and an integrated 3-position toggle switch that provides On, Off, and Triggered-On functionality. The trigger wire enables automatic activation through vehicle systems such as high beams or reverse lights, offering flexible lighting control depending on driving conditions.

Built with automotive-grade wiring and sealed connectors, the 640055 is designed for durability in harsh environments including off-road, marine, and utility applications. It is ideal for users building compact, reliable auxiliary lighting systems with clean and professional installation results.
