Wagner Tuning 200001175 EVO1 Intake Manifold w/Intercooler for BMW & Supra B58.2

Vehicle Fitment

• 2021-2025 BMW 2 Series G42 M240i / M240ix (B58.2 3.0L Turbo)
• 2019-2026 BMW 3 Series G20/G21 M340i / M340ix (B58.2 3.0L Turbo)
• 2021-2025 BMW 4 Series G22/G23/G26 M440i / M440ix (B58.2 3.0L Turbo)
• 2019-2026 BMW Z4 G29 M40i (B58.2 3.0L Turbo)
• 2019-2026 Toyota GR Supra MK5 A90/A91 (B58.2 3.0L Turbo)

Fitment Notes

• B58.2 (Gen 2) engine only -- does not fit earlier B58 Gen 1 applications
• 100% plug and play -- no permanent modifications required
• Intercooler core sold separately: Wagner Tuning 100001175
• Optional fuel rail available separately for port fuel injection setup
• Oil filter can be accessed without removing the intake manifold
• Not legal for sale or use on emissions-controlled vehicles in California

Features

• 128% larger external core volume vs. OEM intercooler
• Up to 20°C cooler intake air temperatures (IAT)
• 35% less backpressure than OEM -- reduces mechanical load on turbocharger
• CFD-optimized CNC-milled aluminum end tanks for minimal internal restriction
• Anti-corrosion coating with heat-dissipating properties
• 3x 1/8 NPT ports pre-machined for additional sensor/measurement installation
• 6x pre-machined NOS or water-methanol injection ports (1/16 NPT)
• Preprocessed port fuel injection (PFI) provisions
• Suitable for all power levels -- street to full race
• Up to 4-year warranty (extendable via Wagner NanoGram QR registration)

Specifications

• Engine compatibility: BMW B58.2 (Gen 2) 3.0L turbocharged
• OEM core dimensions: 152 x 143 x 100mm / 2.19L volume
• Wagner core dimensions: 192 x 156 x 128mm / 3.83L volume
• Core volume increase: +75% over OEM
• External core volume increase: +128% over OEM
• Intercooler type: Water-to-air (indirect charge-air cooling)
• End tank material: CNC-milled aluminum
• NPT measurement ports: 3x 1/8 NPT
• NOS/WMI ports: 6x pre-machined (1/16 NPT)
• Warranty: Up to 4 years

Included Components

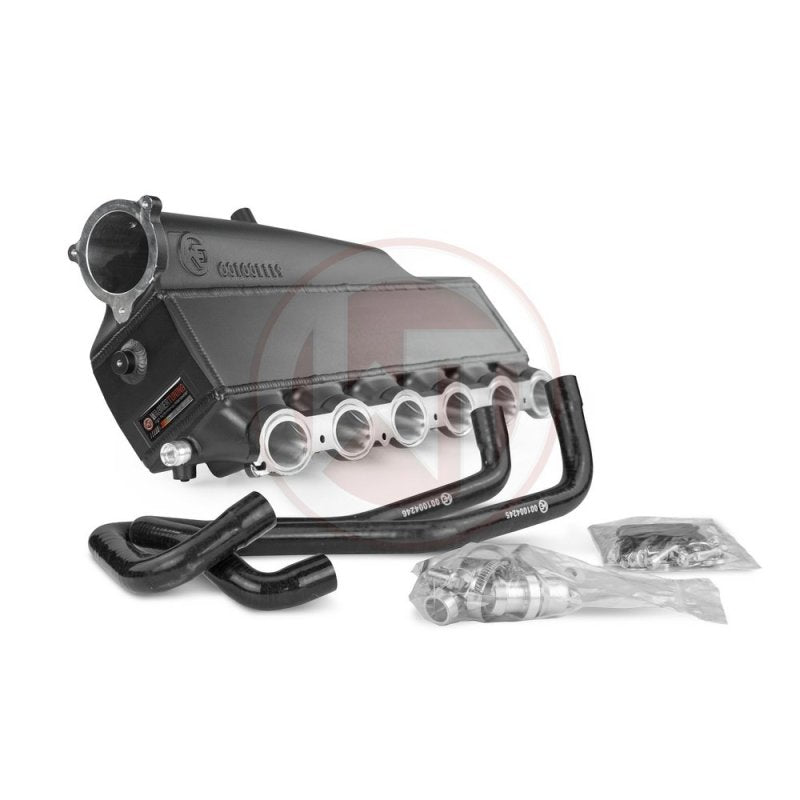

• 1x EVO1 intake manifold with integrated intercooler
• 2x silicone hoses
• 5x retaining plates
• Mounting hardware
• Installation instructions

Product Description

The Wagner Tuning 200001175 EVO1 is a complete intake manifold replacement with an integrated water-to-air intercooler for all BMW B58.2 (Gen 2) platform vehicles and the Toyota GR Supra MK5. The B58.2 engine uses an indirect charge-air cooling circuit in which the intercooler sits inside the intake manifold -- Wagner replaces this entire assembly with a unit built around a performance core that delivers 128% more external core volume and 75% more total volume than the OEM unit, resulting in up to 20°C cooler intake air temperatures and 35% less backpressure under boost.

The end tanks are CNC-milled from solid aluminum and shaped using CFD simulation for uniform airflow distribution across the core. Pre-machined provisions include three 1/8 NPT sensor ports for wideband, boost, or temperature measurement, plus six 1/16 NPT ports for NOS or water-methanol injection nozzles -- making this manifold suitable for builds at any power level from a light street tune to a full race build. Plug-and-play installation with no permanent modifications. Covered by Wagner's up to 4-year warranty, extendable via NanoGram QR registration.
