Ford Racing M-9424-P46A Intake Manifold w/Thermostat for 01-04 Mustang GT 4.6L

Vehicle Fitment

• 2001-2004 Ford Mustang GT, 4.6L 2V, PI heads, direct fit
• 1999-2000 Ford Mustang GT, 4.6L 2V, PI heads
• 1996-1998 Ford Mustang GT, 4.6L 2V, PI head upgrade required
• 2002-2011 Ford Crown Victoria, 4.6L 2V, PI heads
• 2002-2011 Mercury Grand Marquis, 4.6L 2V, PI heads
• 2002-2011 Lincoln Town Car, 4.6L 2V, PI heads

Fitment Notes

• Manifold gaskets pre-installed, no separate gaskets needed
• 96-98 needs custom calibration

Features

• Same production manifold as 01-04 GT Mustang
• Meets OEM tolerances
• Fits factory sensors, throttle body, injection
• Updated runner design and tooling
• Larger bell mouth
• Deeper plenum
• Integrated O-ring seal gaskets, pre-installed
• All-aluminum coolant crossover, two sensor bungs
• Reinforced mounting locations
• Metal threaded inserts for fuel rail, coil packs, lower plenum

Specifications

• Head config: PI heads
• Fuel injection: Multi-port
• Base material: Composite plastic
• Base color: Black
• Thermostat rating: 195°F
• Throttle body: Not included
• Injectors: Not included

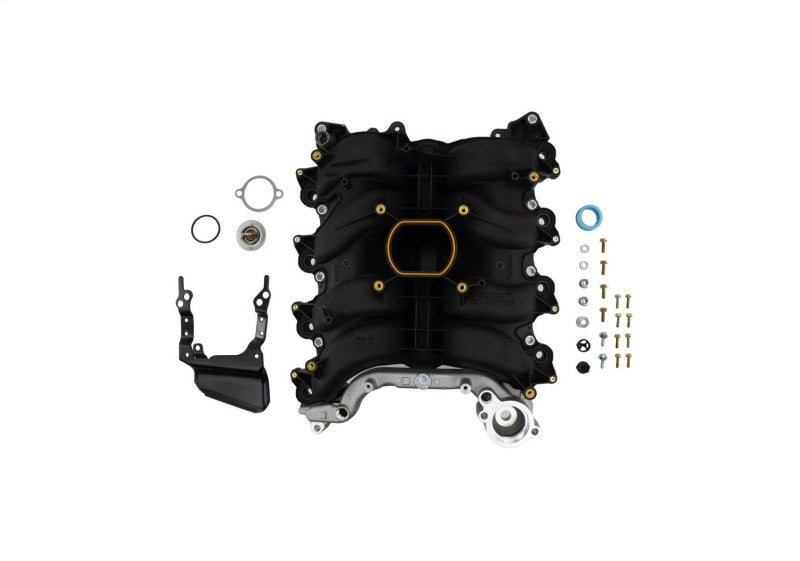

Included Components

• 1x 4.6L 2V PI Intake Manifold, gaskets pre-installed
• 1x 195° Thermostat
• 1x Thermostat O-Ring Gasket
• 1x Alternator Bracket
• Installation Hardware

Product Description

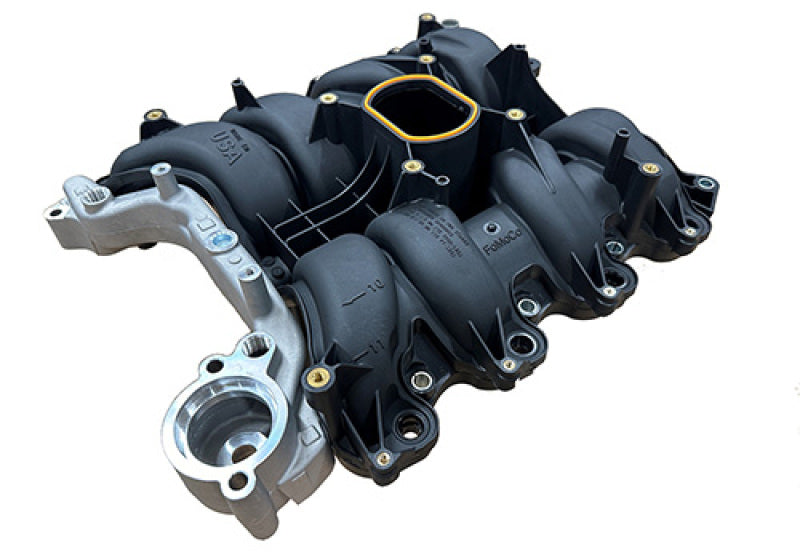

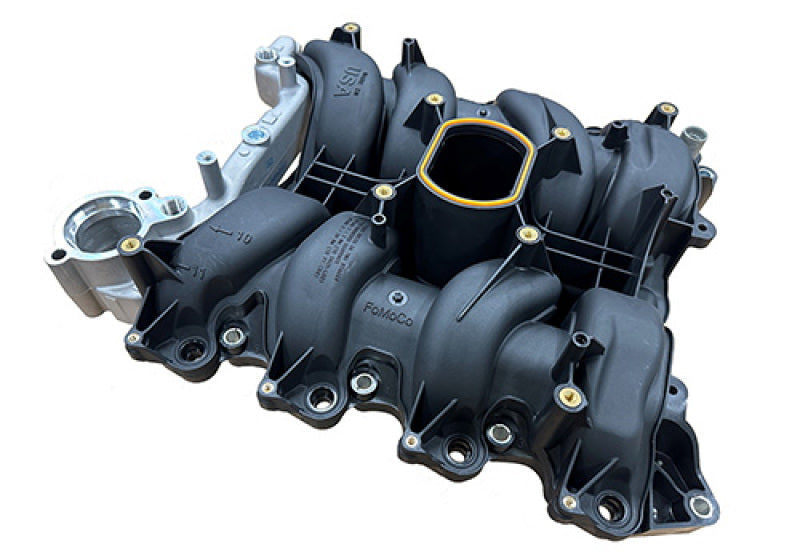

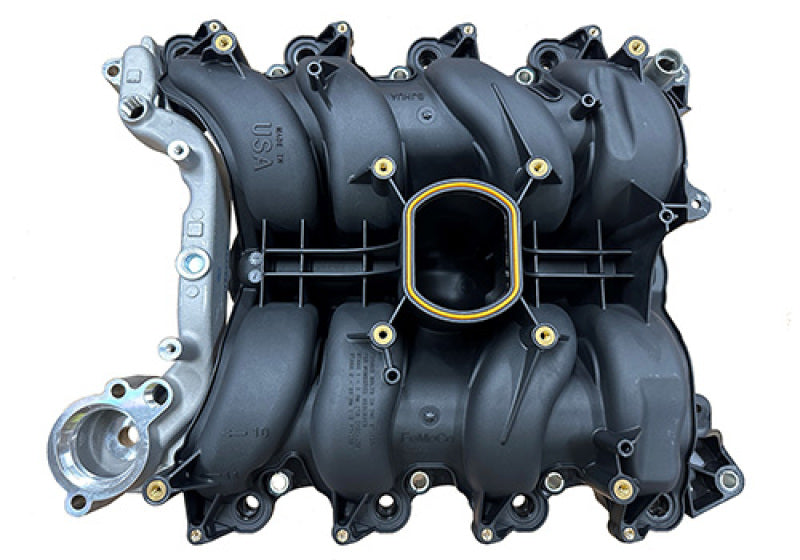

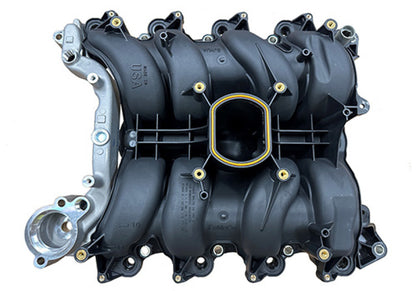

Ford Racing 4.6L 2V PI Intake Manifold. Same production part used on 2001-2004 GT Mustangs, meeting OEM tolerances and integrating with factory sensors, throttle body, and injection. Updated runner design, larger bell mouth, deeper plenum, and an all-aluminum coolant crossover with two sensor bungs replace the crack-prone factory plastic crossover.

Direct fit for 01-04 GT Mustangs and 2002+ Crown Victoria/Grand Marquis/Town Car with PI heads. Usable on 96-00 GT Mustangs with a PI head swap; 96-98 needs custom calibration. Does not fit 2007 F-150 despite sharing the 4.6L 2V.

Manifold gaskets come pre-installed, so no separate gaskets are needed. Includes a new 195° thermostat, thermostat O-ring gasket, and alternator bracket -- use the bracket if the vehicle isn't already equipped with an aluminum crossover manifold. 1999-early 2001 installs also need the 2001-2004 thermostat housing bolts. Off-road use only, sold individually.
