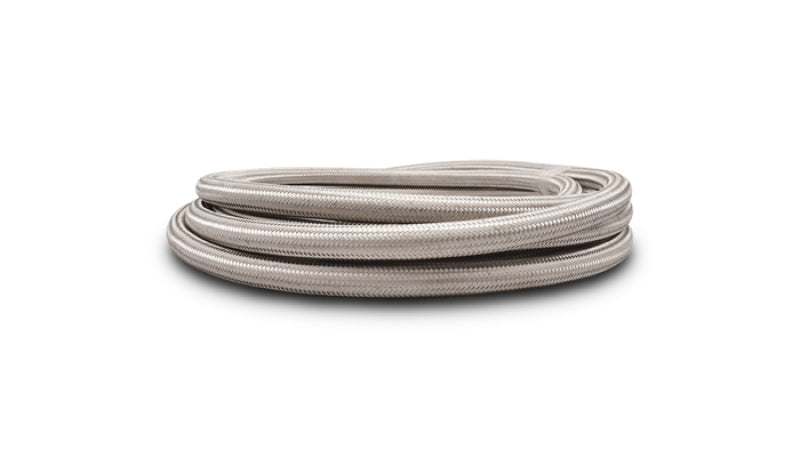

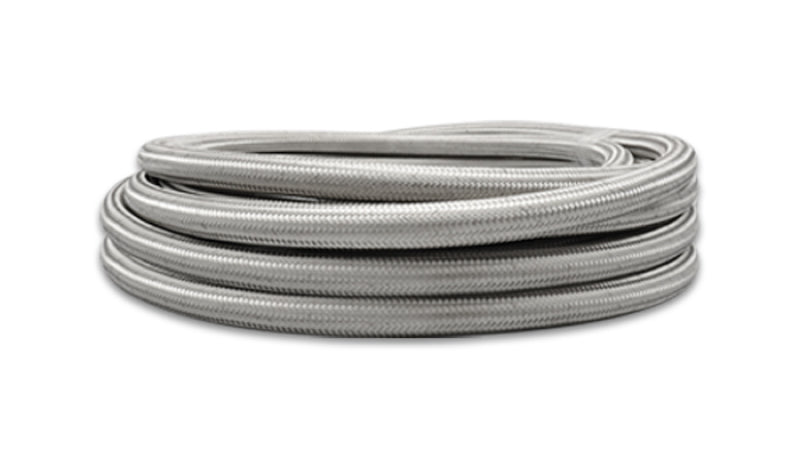

Vibrant 18416 -6AN SS Braided PTFE Flex Hose 10 ft. Roll Stainless Universal

Vehicle Fitment

• Universal - No vehicle-specific fitment. Suitable for any fuel, oil, transmission, clutch, power steering, or coolant line application requiring -6 AN stainless steel braided PTFE-lined flex hose.

Fitment Notes

• This is a universal hose sold by the roll. Sold as a 10-foot length - cut to the required length for your application.
• Use of this hose for brake line applications is strictly at the customer's own risk and will void all warranties and liabilities.
• Compatible with Vibrant reusable -6 AN hose end fittings for rubber-lined and PTFE-lined flex hose.
• Also available in nylon braid (black) and in 5 ft. and 20 ft. roll lengths across the Vibrant PTFE hose lineup.

Features

• PTFE inner liner eliminates fuel vapor permeation and provides chemical compatibility with all popular race fuels and oils
• Stainless steel braid outer cover provides superior protection against abrasion, corrosion, and high-pressure expansion
• Wide operating temperature range of -94°F to 480°F (-70°C to 250°C) suits demanding motorsport and street applications
• Suitable for fuel, oil, transmission fluid, clutch fluid, power steering fluid, and coolant
• Natural (silver) stainless braid finish for a clean, professional appearance
• 0.32 in. (8.128 mm) inner diameter provides correct flow capacity for -6 AN plumbing circuits
• Race-proven construction used in high-performance and competition applications worldwide
• Backed by Vibrant's 1-year limited warranty

Specifications

• Part Number: 18416
• Hose Size: -6 AN
• Inner Liner: PTFE (Polytetrafluoroethylene)
• Outer Cover: Stainless Steel Braid
• Inner Diameter: 0.32 in. (8.128 mm)
• Length: 10 ft. (120 in. / 3,048 mm)
• Operating Temperature Range: -94°F to 480°F (-70°C to 250°C)
• Compatible Fluids: Race Fuels, Engine Oil, Transmission Fluid, Clutch Fluid, Power Steering Fluid, Coolant
• Finish / Color: Natural (Stainless Silver)
• UPC: 690092172114
• Quantity: Sold as 10 ft. Roll
• Warranty: 1 Year Limited Warranty

Included Components

• 1x Vibrant 18416 -6 AN Stainless Steel Braided PTFE Flex Hose, 10 ft. Roll

Product Description

The Vibrant 18416 is a -6 AN stainless steel braided PTFE-lined flex hose sold in a 10-foot roll for custom fuel, oil, and fluid delivery system fabrication. The PTFE inner liner provides full chemical compatibility with all popular race fuels and oils while eliminating the fuel vapor permeation that is a common drawback of rubber-lined hose. The stainless steel braid outer cover provides superior abrasion and corrosion resistance compared to nylon-covered alternatives, and resists pressure-related expansion under high system pressures.

With an operating temperature range of -94°F to 480°F, this hose is suitable for the full range of motorsport and high-performance street applications including fuel delivery, oil feed and return, transmission, clutch, power steering, and coolant circuits. The 0.32 in. inner diameter provides the correct flow capacity for -6 AN systems. Compatible with Vibrant's full range of reusable -6 AN hose end fittings. Note: use for brake line applications is at the customer's own risk and voids all warranties. Sold as a 10-foot roll.
