Vibrant 11935 -20AN SS Braided Flex Hose 1.12" ID 20 Ft Roll Oil Fuel Coolant

Vehicle Fitment

• Universal - Compatible with any vehicle or application requiring -20 AN (1.12" I.D.) braided flex hose for oil, fuel, water, coolant, or vacuum lines

Fitment Notes

• Universal part - not vehicle-specific; requires -20 AN fittings for termination
• Suitable for oil, water, fuel, coolant, vacuum, E85, and methanol service
• Not suitable for brake lines, hydraulic pressure lines, or extended in-tank submersion
• E85 and methanol compatible - note that fuel fumes may permeate hose if left stagnant for extended periods

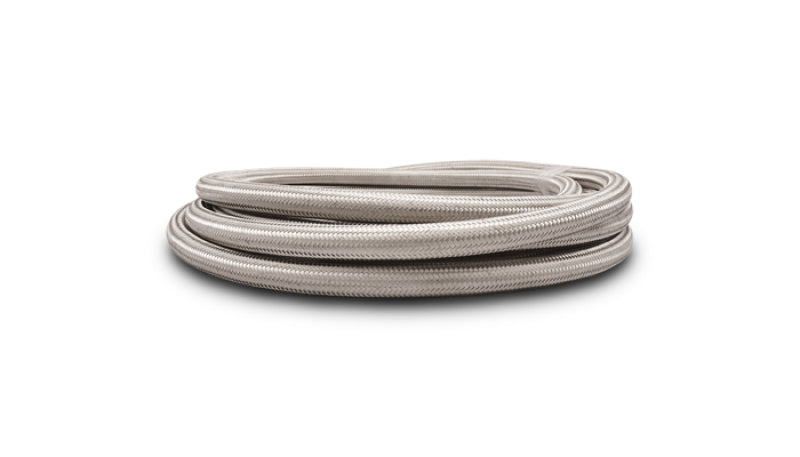

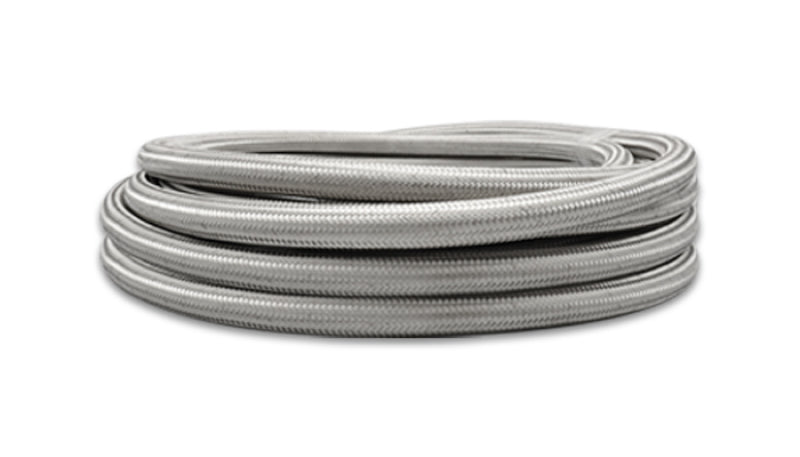

• Sold as a 20 ft. roll - cut to desired length

Features

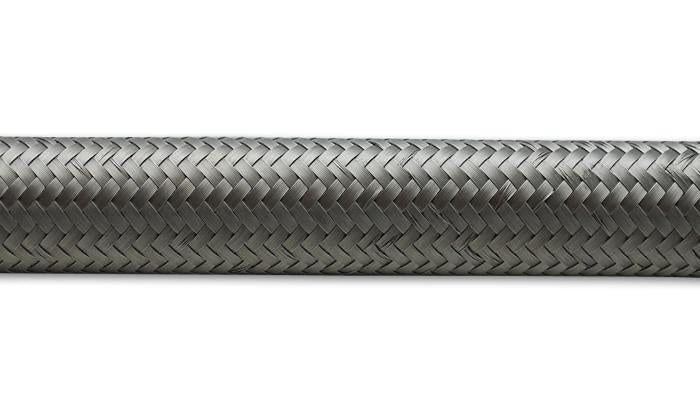

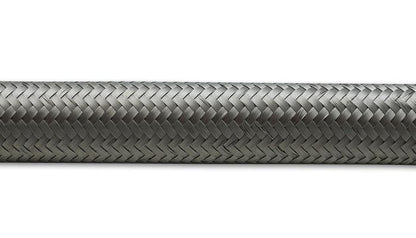

• 300 series stainless steel braided outer sleeve for superior abrasion and corrosion resistance
• Reinforced synthetic rubber inner liner for reliable, leak-free fluid delivery
• Rated for operating pressures up to 500 psi
• Wide operating temperature range: -40°F to 300°F (-40°C to 150°C)
• Compatible with oil, water, fuel, coolant, vacuum, E85, and methanol applications
• Flexible construction allows for tight routing in confined engine bay spaces
• 1-year limited warranty backed by Vibrant Performance

Specifications

• AN Size: -20 AN
• Hose I.D.: 1.12 in.
• Roll Length: 20 ft.
• Outer Braid: 300 Series Stainless Steel
• Inner Liner: Reinforced Synthetic Rubber
• Max Operating Pressure: 500 psi
• Operating Temp Range: -40°F to 300°F (-40°C to 150°C)
• PTFE Lined: No
• Finish: Natural Stainless

Included Components

• 1x Vibrant 11935 -20 AN Stainless Steel Braided Flex Hose - 20 ft. Roll

Product Description

The Vibrant Performance 11935 is a -20 AN stainless steel braided flex hose sold in a 20 ft. roll, designed for high-performance fluid delivery in street and race applications. Its 300 series stainless steel braid provides excellent abrasion and corrosion resistance, while the reinforced synthetic rubber inner liner ensures leak-free performance across a wide range of fluids including oil, fuel, water, coolant, E85, and methanol.

Rated up to 500 psi and capable of handling temperatures from -40°F to 300°F, the 11935 is a versatile solution for custom oil, coolant, and fuel line routing on any build. Cut to length as needed and pair with -20 AN fittings to complete your fluid delivery system.
