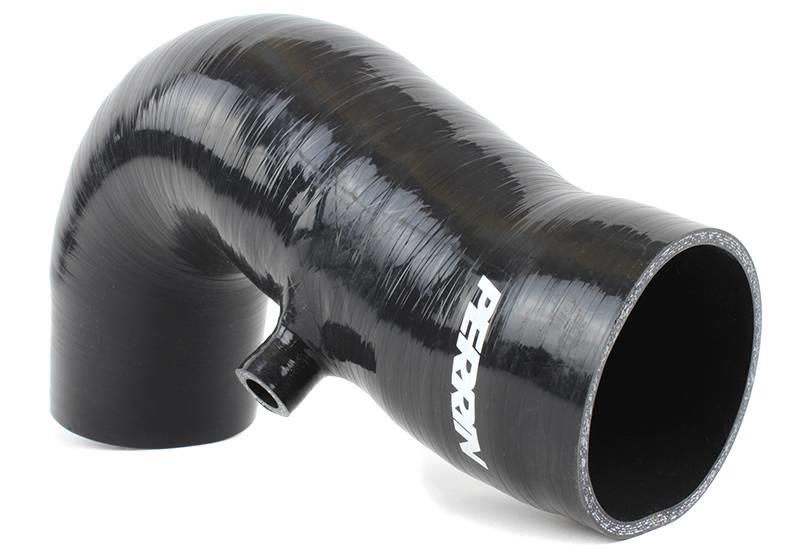

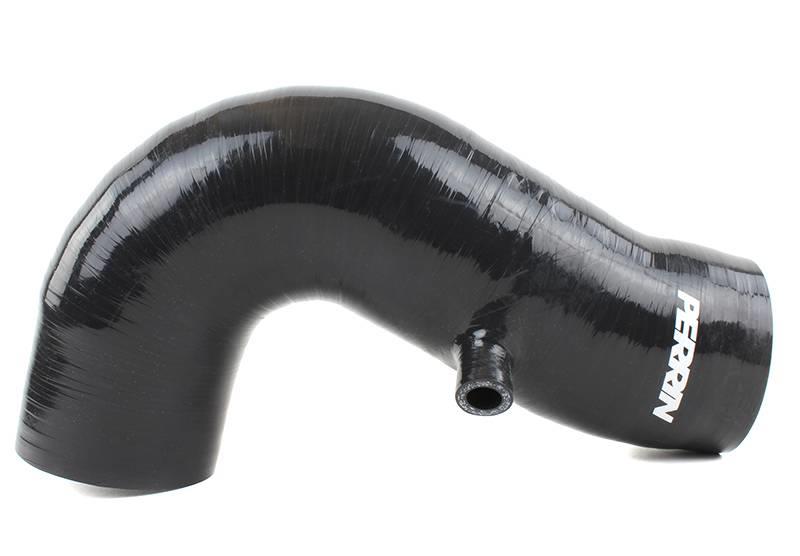

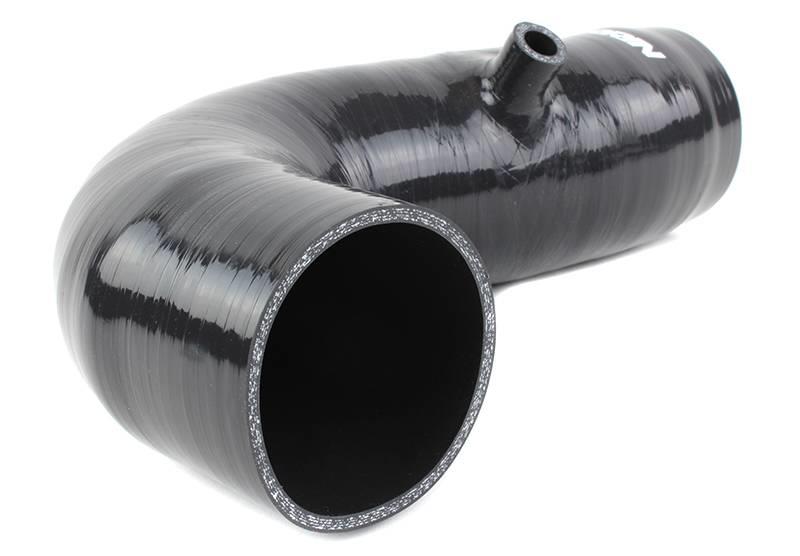

Perrin PSP-INT-431BK Black Inlet Hose Manual for 2017-2021 Subaru BRZ Toyota 86

Vehicle Fitment

• 2017-2021 Subaru BRZ (2.0L FA20 H4, Manual Transmission Only)
• 2017-2020 Toyota 86 / GT86 (2.0L FA20 H4, Manual Transmission Only)
• 2017-2020 Scion FR-S (2.0L FA20 H4, Manual Transmission Only)

Fitment Notes

• Manual transmission only - not compatible with automatic transmission-equipped vehicles
• No ECU tune or recalibration required for installation; additional power gains are possible with proper tuning
• Compatible with aftermarket cams and bolt-on modifications - increased 3.0" internal diameter accommodates these upgrades without restriction
• For 2013-2016 BRZ/FR-S, see PSP-INT-430BK; for 2022+ BRZ/GR86, verify correct part number before ordering

Features

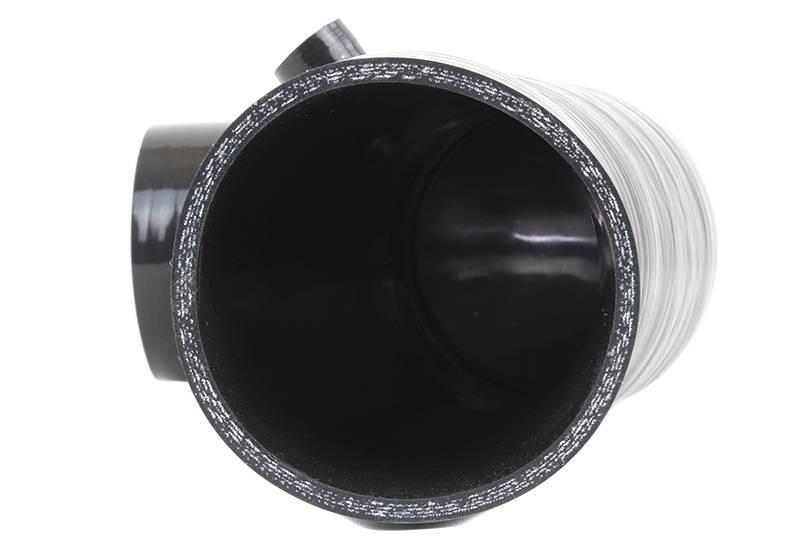

• 3.0" internal diameter - 0.3" larger than the OEM 2.7" hose - allows significantly more air volume to reach the throttle body
• Smooth interior bore and gradual bend eliminate the OEM hose's pleated interior and sharp bend, reducing airflow restriction and improving throttle response
• Embedded stainless steel support wire prevents hose collapse under high-redline, high-boost, or restrictive filter conditions
• Machined aluminum blow-off valve insert bonded into the silicone layers provides a solid, leak-free BOV connection
• All spigots are 1/2" ID for maximum flow from crankcase vents and vacuum connections
• Glass-reinforced nylon connectors rated to 400°F - withstand normal driving through extreme racing conditions
• Increases horsepower and torque without ECU recalibration required
• Available in red and blue under the same PSP-INT-431 fitment series

Specifications

• Part Number: PSP-INT-431BK
• Color: Black (Gloss)
• Material: Multi-Layer Silicone with Embedded Stainless Steel Support Wire
• Internal Diameter: 3.0" (OEM: 2.7")
• BOV Insert: Machined Aluminum (bonded)
• Spigot ID: 1/2"
• Connector Material: Glass-Reinforced Nylon (rated to 400°F)
• Transmission: Manual Only
• Warranty: 5 Years (original purchaser)

Included Components

• 1x PERRIN Black Silicone Inlet Hose

Product Description

The PERRIN PSP-INT-431BK is a silicone inlet hose engineered for the 2017-2021 Subaru BRZ, Toyota 86, and Scion FR-S with manual transmissions. The OEM inlet hose's pleated interior and sharp bend toward the throttle body create measurable airflow restriction - especially as power levels climb with bolt-on modifications. PERRIN's replacement features a 3.0" smooth-bore interior with a gradual bend, eliminating that restriction and allowing the engine to breathe more freely from idle through high-rpm operation.

A stainless steel support wire embedded within the silicone layers keeps the hose rigid under vacuum and prevents collapse with restrictive intake filters or in high-redline builds running aftermarket cams. The machined aluminum BOV insert provides a solid, leak-free connection for blow-off or bypass valves. Glass-reinforced nylon connectors and 1/2" ID spigots ensure compatibility with all crankcase and vacuum connections. No tune is required, though ECU recalibration can unlock additional gains. Backed by PERRIN's 5-year limited warranty.
