Kleinn RPTR-734 Bolt-On Train Horn OBA Kit for 2017-2026 Ford F-150 Raptor

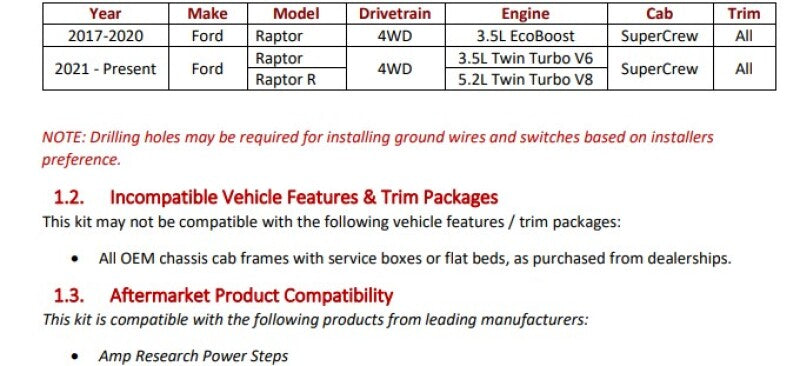

Vehicle Fitment

• 2017-2026 Ford F-150 Raptor (SuperCrew, All Engines, 4WD)
• 2017-2026 Ford F-150 Raptor R (SuperCrew, 5.2L Supercharged V8, 4WD)

Fitment Notes

• SuperCrew cab only - does not fit SuperCab configurations
• Compatible with Amp Research Power Steps - does not fit AMP-XL or OEM factory power steps
• 100% bolt-on installation; no drilling, cutting, or welding required
• Upgradeable with the Model 6890 Ultra BlastMaster Valve Kit for increased horn output

Features

• Demon Model 730 triple spun steel train horn produces a thundering 157.8 dB locomotive blast
• 6450RC fully submersible waterproof compressor with 100% duty cycle and 200 PSI output
• Custom Made-in-USA powder-coated mounting brackets designed specifically for the Gen 2 and Gen 3 Raptor chassis
• 3-gallon Cortec inner-coated steel air tank resists corrosion and supports tires up to 37"
• Complete kit ships in one box - everything needed for a professional, flawless install
• Backed by Kleinn's 2-year extended warranty on the 6450RC compressor and 730 horns

Specifications

• Horn: Demon Model 730 Triple Spun Steel Train Horn
• Sound Output: 157.8 dB
• Compressor: 6450RC Waterproof, 200 PSI, 100% Duty Cycle, 12V DC
• Compressor Max Amp Draw: 23 A
• Air Tank: 3-Gallon Steel with Cortec Internal Anti-Corrosion Coating
• Solenoid: Kleinn VX6003 All-Brass High-Flow Solenoid Valve
• Tire Inflation Hose: 30 ft Quick-Connect
• Bracket Finish: Black Powder Coat
• Application: 2017-2026 Ford F-150 Raptor / Raptor R (SuperCrew)

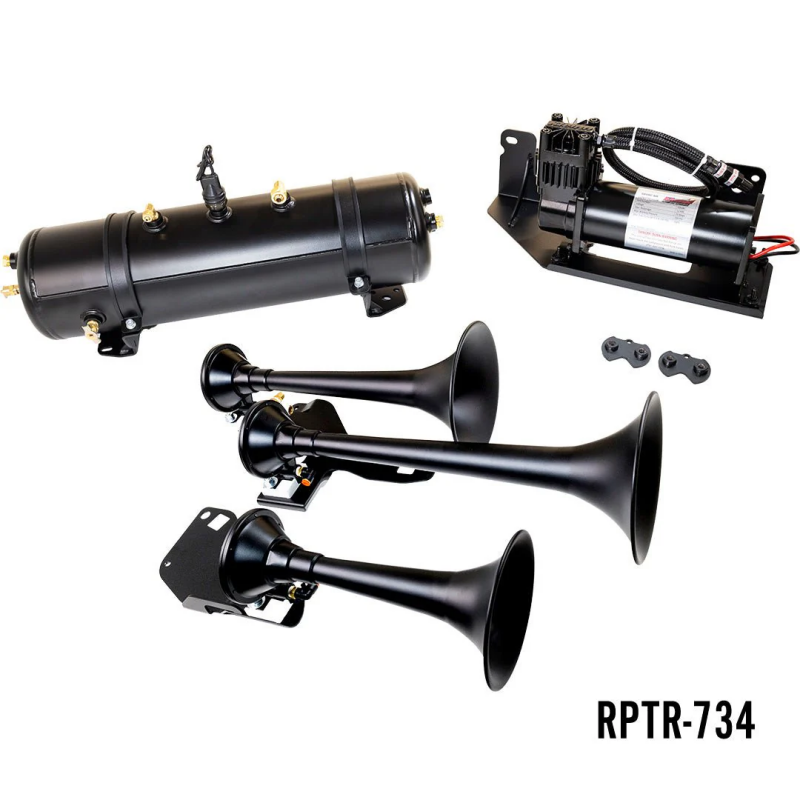

Included Components

• 1x Demon Model 730 Triple Spun Steel Train Horn
• 1x 6450RC Waterproof Air Compressor (200 PSI, 100% Duty Cycle)
• 1x 3-Gallon Cortec-Coated Steel Air Tank
• 1x Custom Made-in-USA Powder-Coated Mounting Bracket Set
• 1x 30-ft Quick-Connect Tire Inflator with Remote Mount and Storage Bag
• 1x Snorkel Remote Intake Kit
• 1x Full Wiring Harness, Relay, Fuse, and Horn Button
• 1x Installation Instructions

Product Description

The Kleinn RPTR-734 is a 100% bolt-on direct-fit train horn and onboard air system engineered specifically for the 2017-2026 Ford F-150 Raptor and Raptor R SuperCrew. The kit pairs the thundering Demon Model 730 triple spun steel train horn - rated at 157.8 dB - with the flagship 6450RC fully submersible waterproof compressor and a 3-gallon Cortec-coated steel air tank, all pre-mounted on custom Made-in-USA powder-coated brackets that bolt directly to factory locations with no drilling, cutting, or welding required.

Designed to drop into place using only common hand tools, the RPTR-734 ships as a complete plug-and-play package with all hardware, wiring, a horn activation button, and a 30-foot quick-connect tire inflator. The system supports air bags, lockers, and small air tools in addition to the train horn, and can be upgraded with the Model 6890 Ultra BlastMaster valve kit for even greater output. The 6450RC compressor and 730 horn are backed by Kleinn's exclusive two-year extended warranty.
