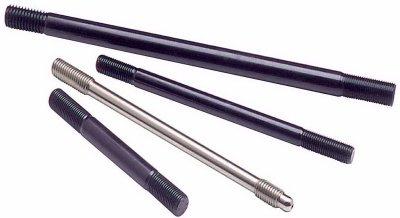

ARP 256-4301 Head Stud Kit for 2013+ Ford 5.0 L Coyote (M11)

Vehicle Fitment

• 2013-2014 Ford 5.0 L Coyote V8 (M11, 11 mm head stud version)

Features

• High-strength ARP2000 alloy studs rated for high clamping force
• Designed to replace torque-to-yield head bolts in tuned or high-boost Coyote engines
• Precision-ground parallel washers included to distribute load evenly
• 12-point nuts for very good wrench clearance in tight engine bays
• Optimized for the 11 mm stud pattern used on later Coyote blocks
• Improves head gasket sealing under high cylinder pressures
• Reusable fastener system when properly torqued with ARP lubricant
• Durable finish to resist corrosion

Specifications

• Material: ARP2000 high-strength alloy
• Stud size: 11 mm (specific to M11 5.0L Coyote)
• Nuts: 12-point style
• Washer: Hardened parallel-ground
• Torque Procedure: Use ARP Ultra-Torque (or supplied lube) and follow sequence:
  1. 35 ft-lbs first pass
  2. 70 ft-lbs second pass
  3. 100 ft-lbs final pass

Included Components

• 11 mm head studs for all cylinder head holes
• Matching 12-point nuts
• Hardened parallel washers
• ARP assembly lubricant
• Installation instruction sheet

Product Description

The ARP 256-4301 Head Stud Kit is engineered specifically for the 2013 and newer Ford 5.0 L Coyote V8 (M11 block), which uses 11 mm head studs. This kit replaces the factory torque-to-yield bolts with strong, reusable ARP2000 alloy studs to significantly improve head clamping force and reliability in high-performance or boosted applications.

Installation involves cleaning and chasing the block threads, installing the studs by hand, and then using the included parallel washers and 12-point nuts. Using ARP's recommended lubricant and torque sequence (35 → 70 → 100 ft-lbs) ensures consistent preload and optimal sealing. This head stud solution is ideal for tuned, forced-induction, or high-RPM Coyote builds where head lift or gasket failure may be a concern.
