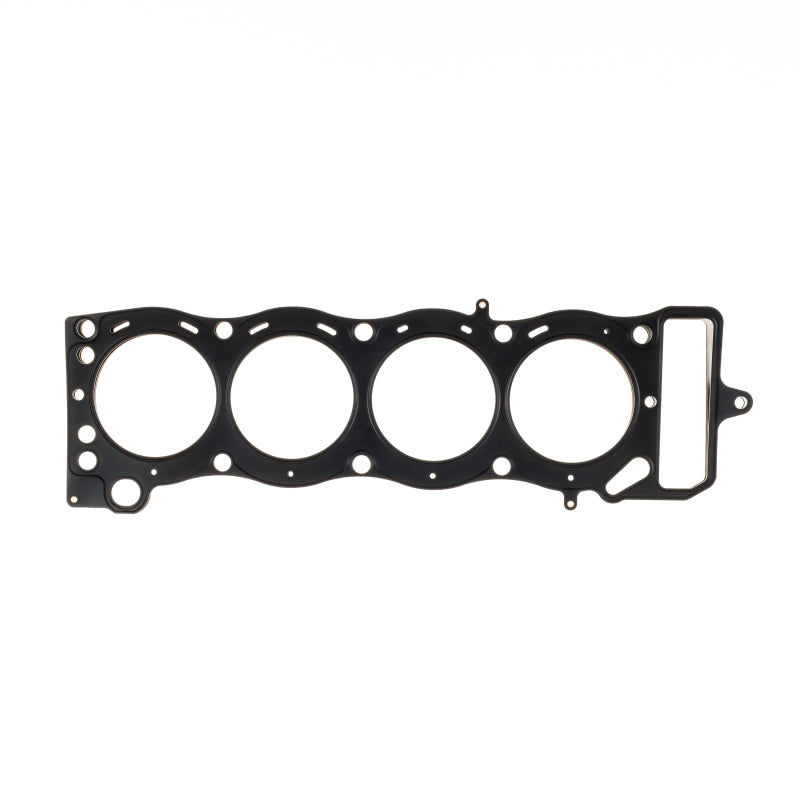

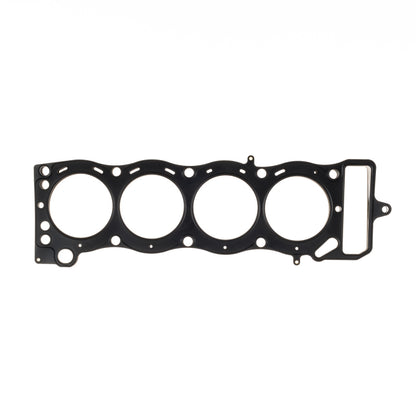

Cometic C14086-040 MLS Head Gasket for 1981-1995 Toyota Pickup/Celica/4Runner

Vehicle Fitment

• 1981-1995 Toyota Pickup (22R, 22R-E, 22R-TE, 2.4L I4 SOHC, RWD)
• 1981-1983 Toyota Celica (22R, 22R-E, 22R-TE, 2.4L I4 SOHC, RWD)
• 1984-1995 Toyota 4Runner (22R, 22R-E, 22R-TE, 2.4L I4 SOHC, RWD)

Fitment Notes

• Compatible with 22R, 22R-E, and 22R-TE engines only.
• Not compatible with DOHC or non-22R series engines.
• Designed for RWD configurations; not suitable for AWD or FWD setups.

Features

• Material: Multi-Layer Steel (MLS) for enhanced sealing performance.
• Compressed Thickness: 0.040 inches (1.016 mm) for optimal combustion chamber sealing.
• Bore Size: 93 mm, matching OEM specifications for precise fitment.
• Number of Layers: 3, providing superior durability and resistance to combustion pressures.
• Embossed layers create a micro-seal, preventing fluid leaks between the head and block surfaces.
• High-temperature polymer coating enhances fluid sealing and gasket longevity.
• Manufactured to order, ensuring fresh production and quality control.
• Ideal for performance applications requiring increased cylinder pressure tolerance.

Specifications

• Material: Multi-Layer Steel (MLS)
• Compressed Thickness: 0.040 inches (1.016 mm)
• Bore Size: 93 mm
• Number of Layers: 3
• Orientation: Symmetrical (no top or bottom orientation required)
• Position: Cylinder head gasket (upper engine assembly)

Included Components

• 1x Cometic C14086-040 MLS Cylinder Head Gasket

Product Description

The Cometic C14086-040 MLS Cylinder Head Gasket is engineered for high-performance applications in the Toyota 22R, 22R-E, and 22R-TE engines found in the 1981-1995 Toyota Pickup, 1981-1983 Toyota Celica, and 1984-1995 Toyota 4Runner. With a compressed thickness of 0.040 inches and a 93 mm bore size, this gasket ensures a precise fit and optimal sealing under high-pressure conditions. The three-layer MLS construction offers superior durability and resistance to combustion pressures, making it ideal for both street and track use.

Designed to withstand the rigors of performance driving, the MLS material incorporates a high-temperature polymer coating and embossed layers that create a micro-seal, preventing fluid leaks between the cylinder head and engine block. This gasket is manufactured to order, ensuring fresh production and quality control. Please note that this gasket is not compatible with DOHC or non-22R series engines and is designed for RWD configurations only.
