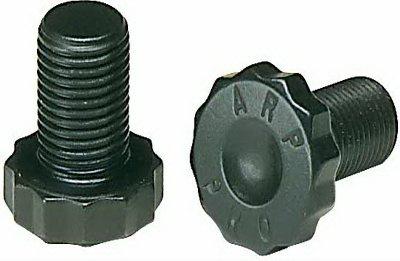

ARP 107-2801 Pro Series Flywheel Bolt Kit M12x1.25 Mitsubishi 4G63 7-Bolt DSM

Vehicle Fitment

• 1992.5-1994 Mitsubishi Eclipse GST (FWD, 4G63T 2.0L Turbo I4) - 7-Bolt Only
• 1992.5-1994 Mitsubishi Eclipse GSX (AWD, 4G63T 2.0L Turbo I4) - 7-Bolt Only
• 1995-1999 Mitsubishi Eclipse GST (FWD, 4G63T 2.0L Turbo I4) - 7-Bolt Only
• 1995-1999 Mitsubishi Eclipse GSX (AWD, 4G63T 2.0L Turbo I4) - 7-Bolt Only
• 1992.5-1998 Eagle Talon TSi (FWD/AWD, 4G63T 2.0L Turbo I4) - 7-Bolt Only
• 1992.5-1994 Plymouth Laser RS (FWD, 4G63T 2.0L Turbo I4) - 7-Bolt Only
• 1992-1993 Mitsubishi Lancer Evolution I (CD9A, 4G63T 2.0L Turbo I4) - JDM
• 1994-1995 Mitsubishi Lancer Evolution II (CE9A, 4G63T 2.0L Turbo I4) - JDM
• 1995-1996 Mitsubishi Lancer Evolution III (CE9A, 4G63T 2.0L Turbo I4) - JDM

Fitment Notes

• Fits the 7-bolt 4G63 crankshaft flywheel pattern (1993+) ONLY - does not fit the 6-bolt 4G63 used in 1990-1992 DSM models
• Does not fit Lancer Evolution IV through IX (these use a different flywheel bolt pattern - see ARP 107-2802 or 107-2803)
• Do NOT use washers - these bolts are engineered for direct installation without washers; using washers will void ARP's warranty and may cause failure
• Flywheel bolt holes must have adequate chamfer to clear the underhead radius of each bolt
• Replaces OEM Mitsubishi part numbers MD302074 and MD169913

Features

• Forged from 8740 aerospace-grade chromoly alloy and heat-treated prior to thread rolling and machining for maximum material integrity
• Rated at 200,000 psi tensile strength - substantially stronger than OEM Mitsubishi flywheel hardware
• Flat 12-point head design allows easy socket access in confined transmission tunnel spaces
• Larger-than-stock shank diameter improves flywheel register and reduces rotational movement under high clutch loads
• Centerless ground for perpendicular bearing surface, ensuring equal load distribution across all bolt positions
• Reusable fasteners - do not stretch or deform under rated load unlike OEM hardware

Specifications

• Part Number: 107-2801
• Material: 8740 Aerospace Chromoly Alloy
• Tensile Strength: 200,000 psi
• Thread Size: M12 x 1.25
• Underhead Length (UHL): 0.825 in.
• Head Style: 12-Point (Flat)
• Socket Size: 3/4 in. 12-Point
• Finish: Black Oxide
• Quantity: Set of 7

Included Components

• 7x ARP M12 x 1.25 Pro Series 12-Point Flywheel Bolts
• 1x ARP Ultra-Torque Fastener Assembly Lubricant (0.5 oz.)
• Note: No washers included or required - do not install with washers

Product Description

The ARP 107-2801 is a Pro Series flywheel bolt kit designed specifically for the Mitsubishi 7-bolt 4G63 engine used in the 2G DSM Eclipse, Eagle Talon, Plymouth Laser, and JDM Lancer Evolution I through III. This kit fits the 1993+ 7-bolt crankshaft flywheel flange - it is not compatible with the 6-bolt 4G63 found in early 1990-1992.5 DSM models. OEM flywheel bolts on the 4G63 are prone to loosening under aggressive clutch engagement and high-boost operation, making this ARP upgrade a standard step in any clutch or flywheel installation on these platforms.

Forged from 8740 chromoly alloy and rated at 200,000 psi, these bolts provide the clamping force needed to keep the flywheel firmly seated under any power level or driving condition. The flat 12-point head simplifies installation in tight spaces, and the centerless ground shank ensures perpendicular load distribution across all seven bolt positions. These bolts replace OEM part numbers MD302074 and MD169913 and are sold as a set of 7 with ARP Ultra-Torque assembly lube included.
