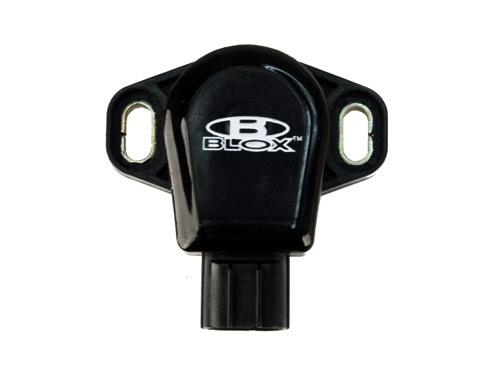

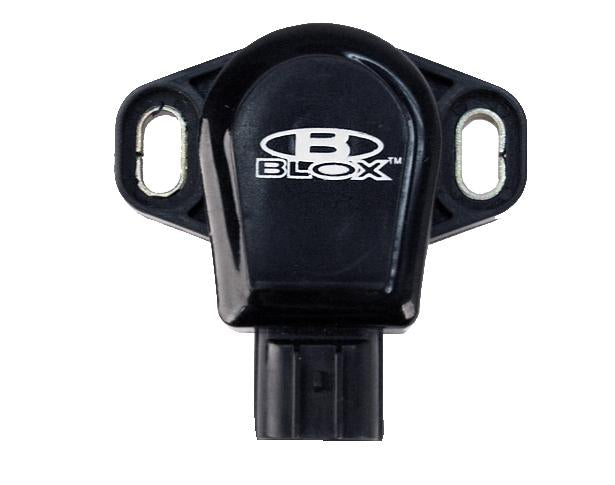

BLOX Racing BXIM-10403 TPS 2003-2005 Honda Accord 4-Cyl 2003-2006 Honda Element

Vehicle Fitment

• 2003-2005 Honda Accord DX, LX, SE, EX, Hybrid - 2.4L 4-Cylinder (K24A) only
• 2003-2006 Honda Element DX, LX, EX - 2.4L 4-Cylinder (K24A)

Fitment Notes

• For the 4-cylinder (K24A) Accord only. The 2003-2005 Accord V6 (3.0L J30A) uses a different TPS with a different throttle body configuration - this unit does not fit the V6 Accord.
• This TPS is internally clocked for the Accord (4-cyl) and Element throttle body orientation - not interchangeable with the RSX Type-S/Civic Si unit (BXIM-10401) or the RSX Base/CR-V unit (BXIM-10402). Installing the incorrect clocking variant will cause inaccurate throttle position output and drivability faults.
• Not compatible with Honda models equipped with single-point ignition systems.
• A gasket is included - the TPS-to-throttle-body gasket should be replaced any time the TPS is removed.

Features

• BLOX Racing throttle position sensor (TPS) for the 2003-2005 Honda Accord (4-cyl) and 2003-2006 Honda Element - a brand-new replacement TPS clocked specifically for the K24A throttle body orientation used in these applications. The TPS is a potentiometer that signals the ECU with a variable voltage output proportional to throttle plate angle; a degraded or failed TPS produces erratic idle, hesitation, poor throttle response, and incorrect fuel trim readings.
• Brand new unit - not remanufactured or rebuilt, providing a known-good sensor baseline at installation without the uncertainty of condition or mileage inherent in a used unit.
• Economical alternative to purchasing a complete OEM throttle body assembly or sourcing an unreliable junkyard sensor.
• Gasket included - the sealing gasket between the TPS and throttle body is provided, eliminating the need to source it separately at time of installation.
• Manufactured to ISO 9001 certified standards.

Specifications

• Part Number: BXIM-10403
• Product Type: Throttle Position Sensor (TPS)
• Sensor Type: Potentiometer (variable resistance)
• Clocking: Accord 4-cyl / Element orientation
• Engine Compatibility: Honda K24A (2.4L 4-cylinder)
• Condition: Brand New
• Weight: 0.10 lbs
• Gasket Included: Yes

Included Components

• 1x BLOX Racing Throttle Position Sensor (TPS) - BXIM-10403
• 1x TPS Sealing Gasket

Product Description

The BLOX Racing BXIM-10403 is a brand-new replacement throttle position sensor (TPS) for the 2003-2005 Honda Accord (4-cylinder K24A only - not V6) and 2003-2006 Honda Element, clocked specifically for the K24A throttle body orientation used in these applications. The TPS communicates throttle plate position to the ECU via a variable voltage potentiometer signal; failure or wear produces erratic idle, throttle hesitation, and improper fuel trims that can cause rough running and poor fuel economy.

BLOX Racing's replacement TPS offers a brand-new unit at a significantly lower cost than purchasing a complete OEM throttle body assembly, with a replacement gasket included. This is one of three clocking variants in BLOX Racing's K-series TPS range - BXIM-10401 for the RSX Type-S and Civic Si, BXIM-10402 for the RSX Base and CR-V, and BXIM-10403 for the Accord (4-cyl) and Element. Verify your exact vehicle and engine before ordering; installing the incorrect clocking variant will cause TPS signal errors and drivability issues.
