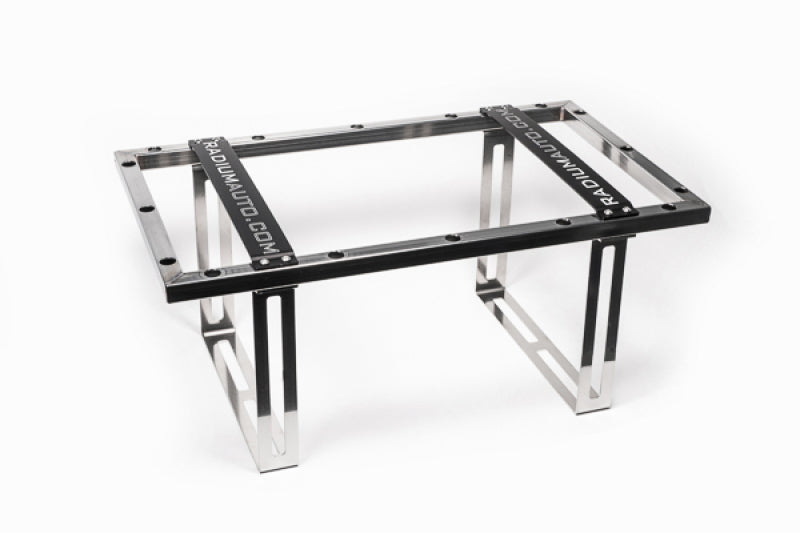

Radium 20-0914 Fuel Cell Weld-In Cage for 14 Gallon RA-Series Fuel Cell

Vehicle Fitment

• Universal fit - designed for Radium RA-Series 14 gallon fuel cells
• Suitable for custom, motorsport, and race chassis installs
• Professional weld-in installation required

Features

• Heavy-duty weld-in cage for secure fuel cell mounting
• Compatible exclusively with Radium RA-Series fuel cells
• TIG-welded 1" x 1" x 1/16" stainless steel tube construction
• Lower 11-gauge stainless steel supports for strength and rigidity
• Polished finish resists corrosion in harsh environments
• Includes anodized aluminum straps to secure fuel cell snugly
• Universal mounting allows orientation to custom chassis
• Robust design for high-G motorsport and track use
• Simply welds into place - no additional brackets required

Specifications

• Part Number: 20-0914
• Application: Weld-in fuel cell cage for 14 gallon RA-Series cells
• Fuel Cell Capacity Supported: 14 gallon
• Material: TIG-welded stainless steel tube
• Tube Size: 1" x 1" x 1/16"
• Lower Cage Supports: 11-gauge stainless steel
• Finish: Polished corrosion-resistant steel
• Installation Type: Permanent weld-in (professional welding required)

Included Components

• 1x Weld-in cage for 14 gallon RA-Series fuel cell
• 1x Set of anodized aluminum mounting straps
• Hardware for fuel cell retention

Product Description

The Radium Engineering 20-0914 Fuel Cell Weld-In Cage is a universal mounting solution designed to securely hold Radium RA-Series 14 gallon fuel cells in custom and motorsport chassis. Built from TIG-welded 1" x 1" x 1/16" stainless steel tubing with robust 11-gauge lower supports, this weld-in cage offers superior strength and corrosion resistance for high-performance applications. Its polished finish not only resists rust but also provides a professional appearance for competition and show vehicles.

This cage requires professional welding into the vehicle chassis and is compatible only with Radium RA-Series fuel cells - including legacy 15 gallon cells that fit snugly in the 14 gallon cage. The included anodized aluminum straps hold the fuel cell securely, even under high-G load conditions seen in racing or aggressive driving. Designed for motorsport, custom builds, and fabricated fuel systems, the 20-0914 gives peace of mind that your fuel cell is protected and properly supported.
