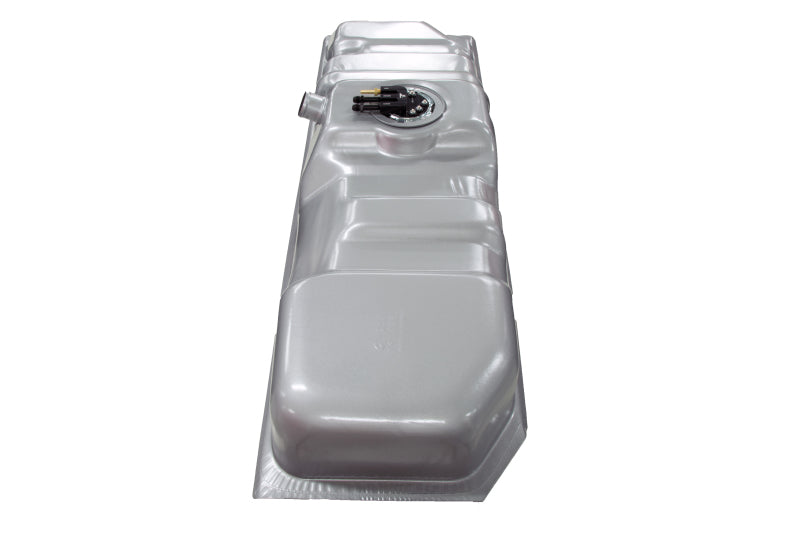

Aeromotive 18474 340LPH GenII Stealth Fuel Tank w/ Pump for 1988-00 Chev

Regular price: $692.88
Regular price: ~~$692.88~~
Sale price: $692.88

Shipping calculated at checkout.

In Stock: 4

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns

Product Specification:

SKU:AER18474

MPN: 18474

UPC: 684980011739

Weight: 41.9 lb

Inventory: 4

Type: Fuel Tanks

Vehicle Fitment

1988-2000 Chevrolet C/K 1500 Pickup (All Trims)
1988-2000 Chevrolet C/K 2500 Pickup (All Trims)
1988-2000 GMC C/K 1500/2500 Pickup (All Trims)

Features

Complete Gen II Stealth fuel tank assembly with high-flow 340 LPH in-tank pump
25-gallon baffled steel tank for stable fuel delivery under load
Patented Phantom internal baffle technology to prevent fuel starvation
Pre-installed 0-90 Ohm fuel level sending unit for accurate gauge readings
OEM fuel outlet location, vent, and electrical terminals for direct install
Billet hat with ORB-06 female supply and return ports
Plug-and-play assembly - arrives ready to install with pump and sender installed
Supports EFI and carbureted engines when matched with proper regulators

Specifications

Brand: Aeromotive
Part Number: 18474
Tank Capacity: 25 gallons
Fuel Pump Flow: 340 LPH (~90 GPH)
Sending Unit: 0-90 Ohm
Material: Steel with OEM-style finish
Outlet/Return Ports: ORB-06 female
Fuel Type: Gasoline; E85 compatible with proper plumbing
Installation: OEM location, plug-and-play

Included Components

1x Gen II Stealth 25 gallon steel fuel tank
1x High-flow 340 LPH Stealth in-tank fuel pump (pre-installed)
1x Calibrated 0-90 Ohm fuel level sending unit
1x Billet hat with ORB-06 supply and return fittings

Product Description

The Aeromotive 18474 Gen II Stealth Fuel Tank is a direct-replacement high-performance fuel delivery solution designed specifically for **1988-2000 Chevrolet and GMC C/K 1500/2500** pickup trucks. This complete assembly combines a large 25-gallon steel tank with Aeromotive's patented Phantom baffling system to maintain a consistent fuel supply to the integrated high-flow 340 LPH pump, even under aggressive acceleration, cornering, or low-fuel situations.

Featuring a pre-installed 0-90 Ohm fuel level sending unit and a billet hat with ORB-06 outlet and return ports situated in the OEM fuel outlet location, the 18474 offers a true plug-and-play installation experience that uses stock mounting straps, filler neck, vent, and electrical connections. Its internal baffling and high-flow pump support both EFI and carbureted engines when paired with appropriate regulators and plumbing, making this tank ideal for performance upgrades and heavy-duty applications.

Rated to support elevated horsepower targets - roughly up to **850 HP naturally aspirated and 700 HP forced induction on gasoline**, with strong E85 support - this fuel tank assembly helps eliminate fuel starvation and enhance overall fuel delivery reliability in performance or heavy-use trucks. Note: this product **is not legal for sale or use on emission-controlled vehicles** except when used as a direct OEM-spec replacement. Always verify fitment and plumbing compatibility before installation to ensure optimal performance and safety.
