Aeromotive 18197 GenII Stealth 16Gal Fuel Tank w/ 200LPH Pump 64-68 M

Vehicle Fitment

• 1964-1968 Ford Mustang (All Trims)

Features

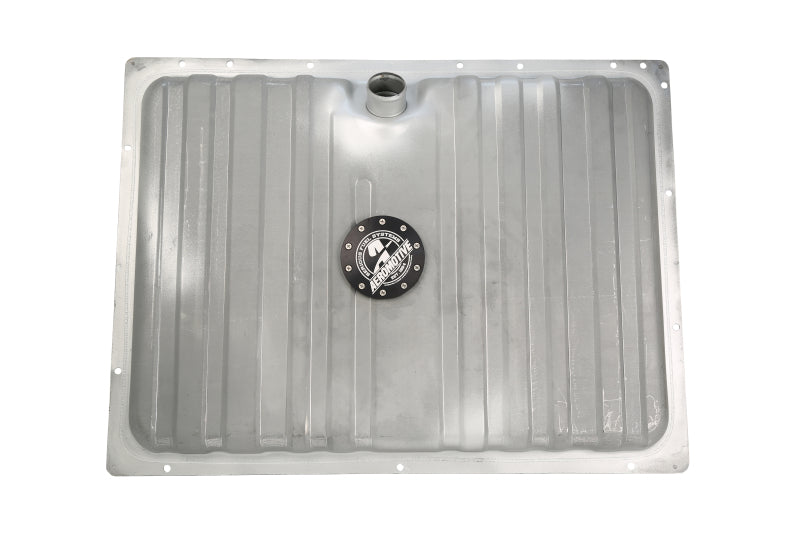

• Complete Gen II Stealth fuel tank assembly with pre-installed pump and sending unit
• 16-gallon steel tank with internal Phantom baffle technology for stable fuel delivery
• Quiet, high-flow 200 LPH Stealth in-tank fuel pump
• Calibrated 73-10 Ohm fuel level sending unit included

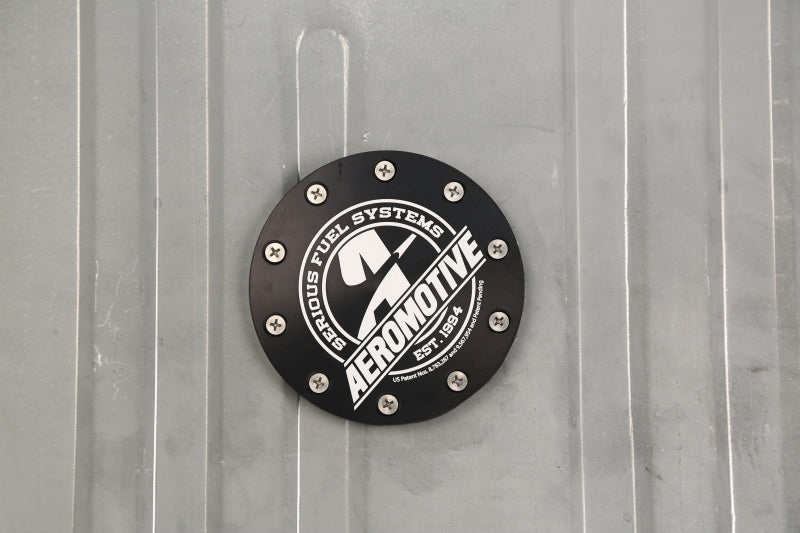

• Billet hat with ORB-06 inlet and return ports
• OEM-location connections for a flush, bolt-in installation
• Plug-and-play design retaining stock mounting straps, filler, and vent
• Suitable for EFI and carbureted engines when paired with proper regulators

Specifications

• Brand: Aeromotive
• Part Number: 18197
• Tank Capacity: 16 gallons
• Tank Material: Steel with internal baffling
• Fuel Pump: 200 LPH Stealth pump (pre-installed)
• Sending Unit: 73-10 Ohm
• Outlet/Return Ports: ORB-06
• Fuel Types: Gasoline (EFI/carbureted)
• Mounting: OEM fitment locations

Included Components

• 1x Aeromotive Gen II Stealth fuel tank (16 Gal)
• 1x 200 LPH Stealth in-tank fuel pump (pre-installed)
• 1x Fuel level sending unit (73-10 Ohm)

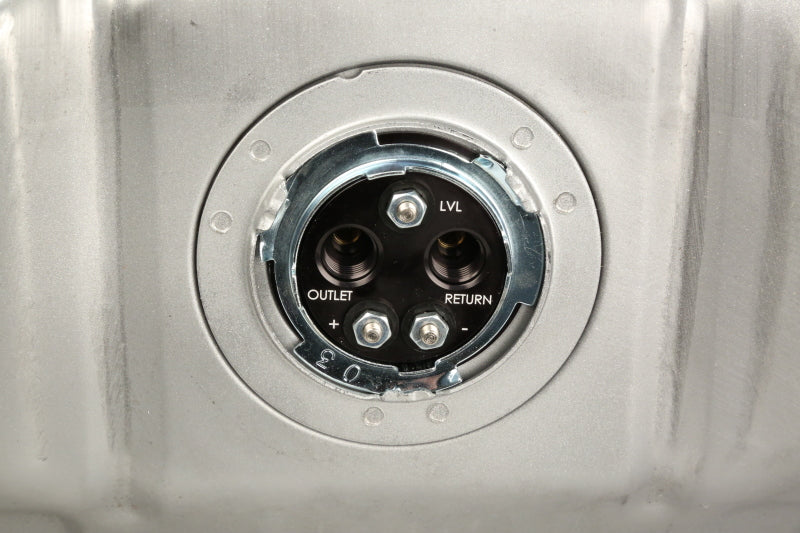

• 1x Billet hat with ORB-06 outlet and return fittings

Product Description

The Aeromotive 18197 Gen II Stealth Fuel Tank is a complete fuel delivery upgrade engineered specifically for 1964-1968 Ford Mustang applications. This full assembly combines a baffled 16-gallon steel tank with Aeromotive's patented Phantom baffle technology to maintain a consistent fuel supply near the pump inlet, even during hard cornering or low-fuel conditions. The tank comes pre-assembled with a high-flow 200 LPH Stealth fuel pump and a calibrated 73-10 Ohm sending unit for reliable performance and accurate gauge readings.

The billet hat includes ORB-06 fuel outlet and return ports positioned in the OEM location, allowing direct integration with factory or aftermarket fuel plumbing without modifying the tank. Designed for a true plug-and-play installation, this assembly uses the stock mounting straps, filler cap, vent, and electrical connections for straightforward replacement. Compatible with both EFI and carbureted engines when paired with appropriate fuel pressure regulators and plumbing, it offers a strong solution for classic Mustang restorations and performance builds.

With its 16-gallon capacity and thoughtfully engineered internal baffling, the Gen II Stealth tank minimizes fuel slosh and maintains consistent delivery under demanding conditions. Note that this product **is not legal for sale or use on emission-controlled vehicles** except when used as a direct replacement part matching OEM specifications. Always match the tank and pump to your specific vehicle requirements and performance goals before installation.
