Snow Performance SNF-30112 Return Billet Fuel Rail Kit for 2018+ Ford 5.0

Vehicle Fitment

• 2018-2024 Ford Mustang GT (5.0L Gen 3 Coyote V8) - 3rd Gen manifold
• 2018-2024 Ford Mustang GT (5.0L Gen 3 Coyote V8) - 1st or 2nd Gen manifold swap applications
• 2018-2024 Ford F-150 (5.0L Gen 3 Coyote V8) - all Coyote truck intake manifolds
• 2018+ Boss 302, GT350, and Cobra Jet manifold applications on Gen 3 Coyote engines
• Compatible manifolds: 1st Gen GT (2011-2014), 2nd Gen (2015-2017), 3rd Gen (2018+), Boss 302, GT350, Cobra Jet, all Coyote truck manifolds
• Does NOT fit: 2011-2017 Mustang or F-150 with a factory 11-17 engine (see SNF-30012 for 2011-2017 applications)
• Not legal for sale or use in California

Features

• CNC-machined billet aluminum construction provides a precision, direct-fit replacement for factory fuel rails with zero tolerance for misalignment or leaks
• Black anodized finish delivers superior corrosion resistance for long-term compatibility with E85, ethanol blends, and gasoline
• High-strength stainless steel mounting brackets lock rails securely to the intake manifold, preventing movement under high fuel pressure and engine vibration
• 8AN ORB (O-ring Boss) inlet and outlet ports on each rail provide a high-flow, leak-free connection rated for high-pressure return-style fuel system use
• Two 1/8" NPT auxiliary ports per rail accept fuel pressure gauges, electronic sensors, or nitrous oxide feed fittings without additional adapters
• Includes a dedicated 3/8" (10mm) EFI port fitting to supply the factory High Pressure Fuel Pump (HPFP) - a Gen 3 Coyote-specific feature critical for maintaining direct injection functionality
• Includes a 1/8" NPT pressure sensor adapter for 2018+ Mustang factory fuel pressure sensor compatibility
• Return-style design is compatible with external aftermarket fuel pressure regulators for precise, adjustable fuel pressure control in high-horsepower builds
• Designed for stock-height 60mm Coyote fuel injectors - accepts all standard Coyote port injectors
• Shorter injectors can be used with Snow Performance injector spacers (sold separately) to achieve the required 60mm seating height
• Sold as a pair - includes both driver-side and passenger-side rails for all eight port injector positions
• Designed and manufactured in the USA by Snow Performance (a Nitrous Express company)

Specifications

• Style: Return-style (bypass) - requires external fuel pressure regulator and fuel return line
• Quantity: Pair (2 rails - driver side and passenger side)
• Material: CNC-machined billet aluminum
• Finish: Black anodized
• Mounting Brackets: High-strength stainless steel
• Inlet/Outlet Ports: 8AN ORB (O-ring Boss) per rail (4 total)
• Auxiliary Ports: Two 1/8" NPT per rail (4 total across both rails)
• HPFP Feed Port: 3/8" (10mm) EFI fitting (1 total - for factory High Pressure Fuel Pump)
• Pressure Sensor Adapter: 1/8" NPT (1 total - for 2018+ Mustang factory sensor)
• Injector Height: 60mm (factory/stock Gen 3 Coyote height)
• Compatible Manifolds: 1st Gen GT, 2nd Gen GT, 3rd Gen (2018+), Boss 302, GT350, Cobra Jet, all Coyote truck manifolds
• Country of Origin: Made in USA
• California Emissions: Not legal for sale or use in California

Included Components

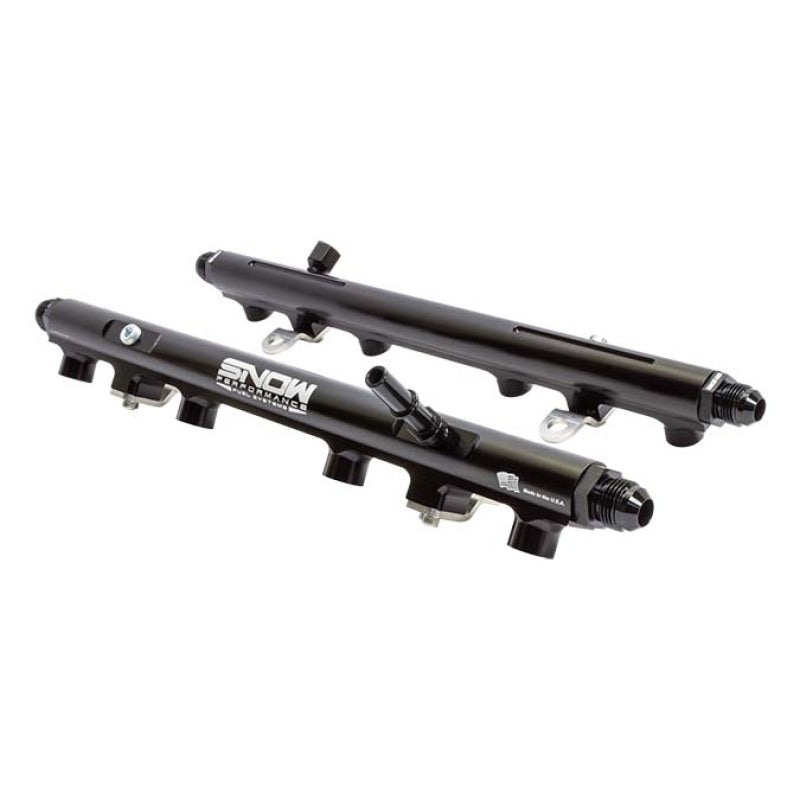

• 2x CNC-machined billet aluminum fuel rails (driver and passenger side)
• 4x 8AN ORB inlet/outlet fittings
• 2x 1/8" NPT port plugs
• 1x Pressure sensor adapter for 2018+ Mustang factory fuel pressure sensor
• 1x 3/8" (10mm) EFI fitting to feed the factory High Pressure Fuel Pump (HPFP)
• 1x Set of stainless steel mounting brackets for factory-height (60mm) Coyote injectors
• Note: Fuel pressure regulator, return line, fuel injectors, and injector spacers are not included

Product Description

The Snow Performance SNF-30112 is a CNC-machined billet aluminum return-style fuel rail kit engineered specifically for the 2018+ Ford 5.0L Gen 3 Coyote V8 platform, covering the Mustang GT, and all F-150 trucks equipped with the Gen 3 engine. Sold as a complete pair, these rails bolt directly into the factory intake manifold positions on any compatible Coyote manifold - including all 1st, 2nd, and 3rd Gen GT intakes, Boss 302, GT350, Cobra Jet, and all Coyote truck manifolds - delivering a clean, show-quality appearance and the structural integrity required for high-pressure fuel system operation. The black anodized billet aluminum body and stainless steel mounting brackets provide maximum rigidity and corrosion resistance across all performance fuel types.

The SNF-30112 is specifically engineered for the Gen 3 Coyote's dual-injection architecture, which pairs port injection (PI) with Gasoline Direct Injection (GDI) via a factory High Pressure Fuel Pump (HPFP). Unlike the SNF-30012 designed for 2011-2017 engines, the SNF-30112 includes a dedicated 3/8" (10mm) EFI port fitting that maintains the low-pressure fuel supply to the factory HPFP - a critical detail that ensures the direct injection system continues to function correctly after the aftermarket rails are installed. A 1/8" NPT pressure sensor adapter is also included to retain the factory fuel pressure sensor on 2018+ Mustangs. This makes the SNF-30112 a drop-in upgrade with full compatibility for the Gen 3's dual-injection fuel system, rather than a partial solution that would disable direct injection.

Each rail features 8AN ORB inlet and outlet ports plus two 1/8" NPT auxiliary ports for fuel pressure gauges, electronic sensors, or nitrous oxide feed lines - four auxiliary ports total across the pair. This is a return-style rail, requiring an external aftermarket fuel pressure regulator and a dedicated return line to the fuel tank. Rails are designed for stock 60mm factory Coyote injectors; shorter injectors require Snow Performance injector spacers (sold separately). Not legal for sale or use in California.
