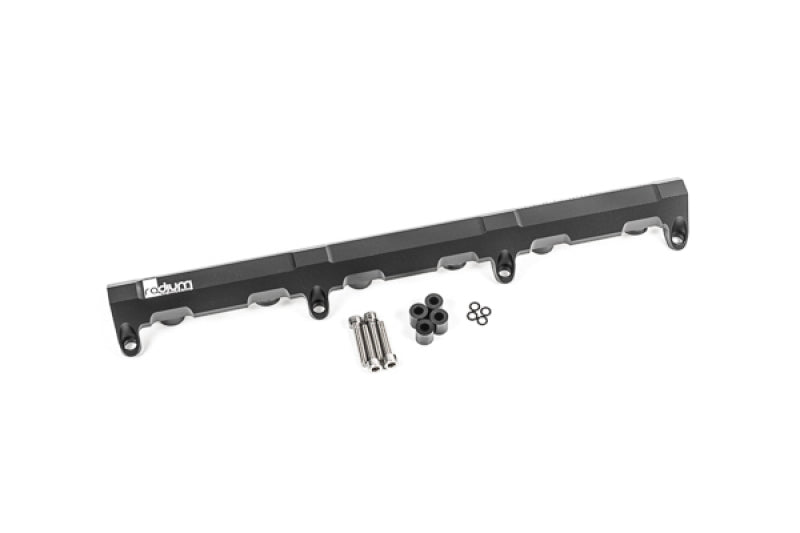

Radium Engineering 20-0879 Fuel Rail for VW/Audi/Porsche 3.2L 24V VR6 (02-10)

Vehicle Fitment

• 2002-09 Volkswagen Golf R32 (3.2L 24V VR6)
• 2001-03 Volkswagen Beetle RSi (3.2L 24V VR6)
• 2002-08 Volkswagen Phaeton (3.2L 24V VR6)
• 2005-10 Volkswagen Touareg (3.2L 24V VR6)
• 2003-09 Audi A3 (3.2L 24V VR6)
• 2001-10 Audi TT (3.2L 24V VR6)
• 2004-07 Porsche Cayenne (3.2L 24V VR6)

Features

• Billet aluminium fuel rail with large ~0.70 inch internal bore to support high-flow fuel delivery.
• Anodised finish resists corrosion and improves durability under high-performance conditions.
• Injector bores remain 14 mm ID to retain compatibility with OEM injectors or equivalent aftermarket units.
• Tapped 8 AN ORB ports for modern feed/return plumbing, regulator mounting or pressure gauges.
• Thermal insulating spacers included to reduce heat transfer to the fuel rail and maintain fuel integrity.
• No special tools required for installation; direct-bolt fitment on listed vehicles.
• Lightweight construction reduces under-hood load while improving fuel system responsiveness.
• Fully compatible with alternative fuels and high-boost tuning scenarios.

Specifications

• Material: Billet aluminium body with anodised finish.
• Internal bore diameter: Approx. 0.70 inch (≈17.8 mm).
• Injector bore ID: 14 mm (compatible with OEM or equivalent injectors).
• Fuel rail ports: 2x 8 AN ORB (feed/return - installer to select hose/fittings).
• Installation: Direct replacement for the listed 3.2 L 24V VR6 applications; includes mounting hardware and thermal spacers.

Included Components

• 1x Radium 20-0879 billet fuel rail assembly.
• 4x Thermal insulating spacers.
• 4x Rubber spacer retainers.
• 4x Stainless mounting screws (M6x1 mm).

Product Description

The Radium Engineering 20-0879 Fuel Rail is specifically engineered for the 3.2 L 24-Valve VR6 engine found in select Volkswagen, Audi and Porsche models (2001-10). Featuring a large internal bore and billet aluminium construction, this fuel rail delivers high-flow capability required in performance or modified builds. The design retains the OEM injector bore size, making it compatible with existing injectors while providing superior fuel delivery capacity and pressure stability.

Installation is straightforward with the included hardware and thermal spacer kit. The rail bolts into the factory mounting points and integrates with modern 8 AN ORB plumbing for fuel feed and return. Suitable for tuned or stock applications alike, the 20-0879 fuel rail is an ideal foundation for high-performance VR6 builds requiring reliable and scalable fuel system upgrades.
