Radium Engineering 20-0215 Top Feed Fuel Rail Conversion for 93-98 Toyota Supra

Vehicle Fitment

• 1993-1998 Toyota Supra (JZA80, 2JZ-GTE)

Features

• Converts OEM side feed to top feed fuel injector setup
• Compatible with both VVTi and non-VVTi 2JZ-GTE engines
• Large 0.69" internal bore to support high fuel flow demands
• CNC machined from custom 6063 aluminum for precision and durability
• Media blasted, black anodized, and laser etched for a high-quality finish
• Compatible with all fuel types, including E85 and other alcohol mixtures
• Includes anodized aluminum mounting feet (tall and short) for injector height adjustment
• Designed for 14mm injector O-rings with included press-fit injector seats

Specifications

• Material: CNC machined 6063 aluminum
• Finish: Media blasted, black anodized, laser etched
• Internal Bore Diameter: 0.69" (17.5mm)
• Injector Compatibility: Designed for 14mm O-ring injectors
• Mounting Feet: Includes both tall and short anodized aluminum feet
• Mounting Hardware: Stainless steel bolts (x4) included
• Injector Seat Kit: 20-0216-06 (6-cylinder) included

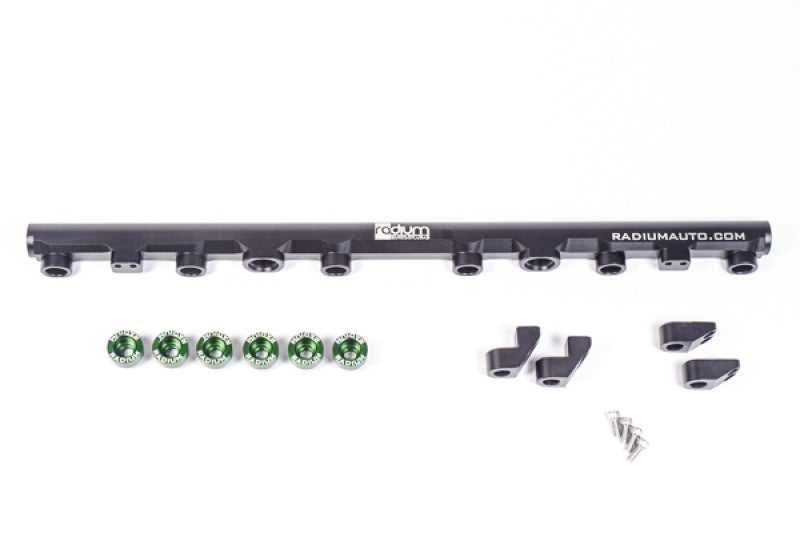

Included Components

• 1x Radium 20-0215 Fuel Rail
• 2x Anodized Aluminum Mounting Feet (Tall and Short)
• 4x Stainless Steel Mounting Bolts
• 1x 20-0216-06 Injector Seat Kit (6-cylinder)

Product Description

The Radium Engineering 20-0215 Top Feed Fuel Rail Conversion Kit is designed to upgrade the fuel delivery system of the 1993-1998 Toyota Supra equipped with the 2JZ-GTE engine. By converting the OEM side feed setup to a top feed configuration, this kit allows the use of high-flow fuel injectors, essential for supporting increased power levels in performance applications.

CNC machined from custom 6063 aluminum, the fuel rail boasts a large 0.69" internal bore to meet the fuel demands of high-performance engines. The anodized finish ensures durability and resistance to corrosion, while the laser-etched markings provide a clean, professional appearance. The kit includes both tall and short anodized aluminum mounting feet, allowing for flexibility in injector height selection to accommodate various injector sizes.

This conversion kit is compatible with both VVTi and non-VVTi 2JZ-GTE engines and supports all fuel types, including E85. The included injector seat kit is designed for 14mm O-ring injectors, ensuring a secure and leak-free installation. Whether you're building a street performance engine or a track-ready setup, the Radium 20-0215 fuel rail provides the foundation for a reliable and high-flow fuel system.
